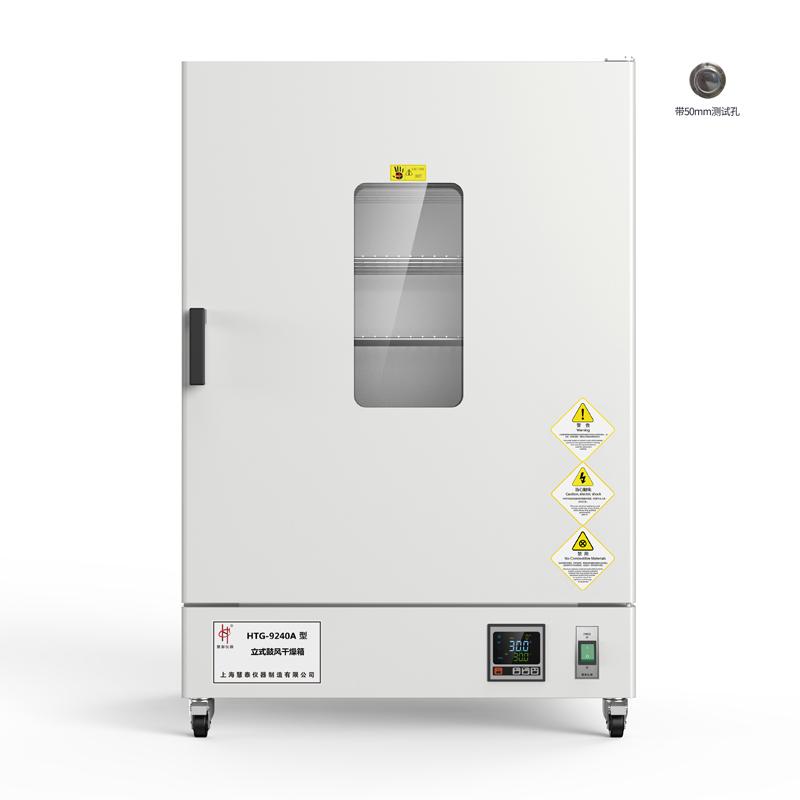

HUITAI BPG-9240A drying sterilizing oven volume 225L with test hole 50mm
With test hole 50mm, Inner chamber dimensions 500 * 600 * 750mm, volume 225L, the liner is made of mirror stainless steel, and the box shell is made of good Cold rolled steel plate.
HuiTai
BPG-9240A + test hole 50mm
BPG-9140A + test hole 50mm
BPG-9070A + test hole 50mm
BPG-9620A + test hole 50mm
BPG-9420A + test hole 50mm
BPG-9920A + test hole 50mm
-
RONGHUA DHG-9030A Electric thermostatic Drying Oven
$ 343.00 -
BOZHEN DHG-9205A Desktop Forced Air Drying Oven
$ 764.00 -
Kenton XCT-0AS high temperature Forced Air Drying Oven 50L with independent temperature limit controller
$ 1025.00 -
Kenton KH-45T digital electric air blowing dryer 250 ℃/42L with independent temperature limiter
$ 744.00 -
Kenton KH-25A digital display electric drying oven with independent temperature limiter
$ 274.00
Applications
Huitai BPG-9240A precision Forced Air Drying Oven is suitable for drying, baking, melting wax, and sterilization in industrial and mining enterprises, laboratories, and scientific research units.
Features
1. Large-screen LCD display, multiple sets of data displayed on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)
2. The fan speed control mode is adopted to improve the temperature uniformity of the working room.
3. The self-developed air duct circulation system is adopted to automatically discharge the water vapor inside the box, and there is no trouble of manual adjustment.
4. It adopts a microcomputer temperature controller with over-temperature deviation protection and digital display, with timing function, and the temperature control is accurate and reliable.
5. The inner tank is made of mirror stainless steel, the shelf bracket can be installed and disassembled freely, and the semi-circular four-corner design makes cleaning more convenient.
6. The Oven Casing is made of high-quality cold-rolled steel plate, and the surface is electrostatically sprayed.
7. Independent temperature limit alarm system, which will be automatically interrupted when the temperature exceeds the limit, so as to ensure the safe operation of the experiment without accidents. (optional)
8. With RS485 interface, it can be connected to the Recorder and computer, and can record the changes of temperature parameters. (optional)
Optional
Intelligent program controller
Independent temperature limit controller
Embedded printer
RS485 interface and special software
Test hole 25mm/50mm
Comparison of parameters of BPG series precision Forced Air Drying Oven
| model | Studio size(mm) | volume | Standard loading bracket |
| BPG-9070A | 400×425×445 | 80L | 2pcs |
| BPG-9140A | 450×550×550 | 136L | 2pcs |
| BPG-9240A | 500×600×750 | 225L | 2pcs |
| BPG-9420A | 600×550×1300 | 420L | 3pcs |
| BPG-9620A | 800×640×1290 | 620L | 4pcs |
| BPG-9920A | 1000×600×1600 | 1000L | 4pcs |
| Other parameters | |||
| Voltage | AC220V 50HZ | ||
| Temperature control range | RT+10~300℃ | ||
| Constant temperature fluctuation | ±0.5℃ | ||
| temperature resolution | 0.1°C | ||
| Timer Range | 1~9999min | ||
HuiTai BPG-9240A + test hole 50mm Precision blast Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Power | AC 220V 50Hz |
| Temperature range | RT+10~300℃ |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Resolution | 0.1℃ |
| Input Power | 2050W |
| Interior size | 500*600*750mm |
| Dimensions | 680*800*1205mm |
| Volume | 225L |
| Shelf (std.) | 2pcs |
| Timer | 1~9999min |
HuiTai BPG-9240A + test hole 50mm Precision blast Drying Oven Packing list
host X1, fuse X2, rack X2, certificate X1, manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
