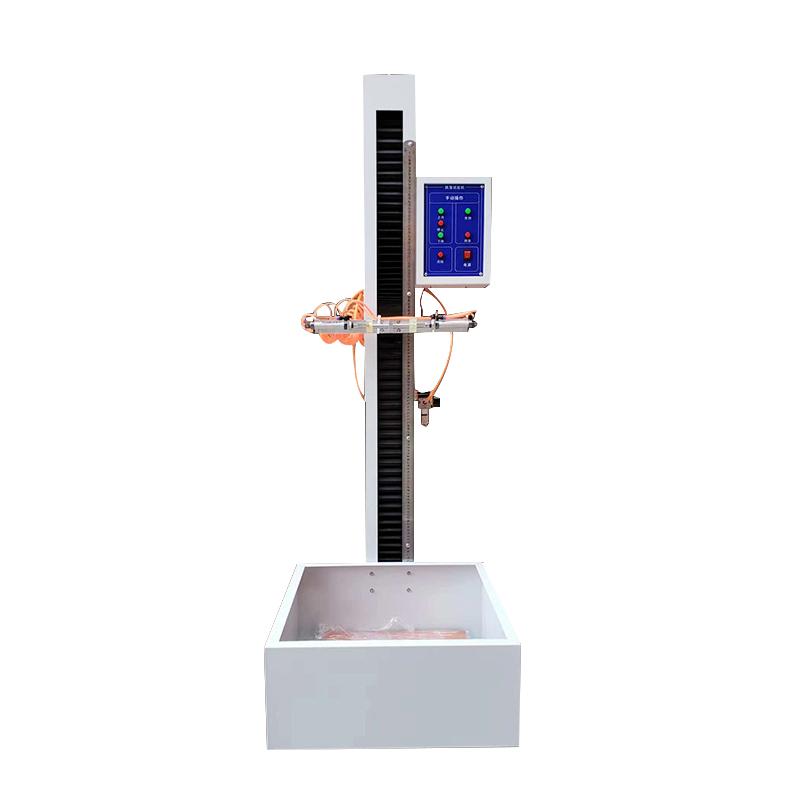

CHINA single arm Dropping Tester NBC-DL-564 drop height 300~1500mm adjustable
Single arm double column structure, with electric reset, electric control drop and electric lifting device, suitable for baseplate thickness of 10mm, support surface, angle and edge drop in all directions, with buffer device.
HuiTai
NBC-DL-564
-
CHINA NBC-8515 wing Dropping Tester
$ 1683.00 -
YINUO YN-DLY-D Carton Dropping Tester (single wing) 1500mm 60kg
$ 2516.00 -
CHINA NBC-5618B electric free Drop Tester, pneumatic Drop Tester 1.5 meters
$ 1363.00 -
YINUO YN-ZDY01 Shaker Table 1000 * 1200mm
$ 1291.00 -
CHINA mobile phone Dropping Tester NBC-5619B
Login
Applications
Single-arm drop testing machine is a test equipment used to simulate the impact and damage of a product during the drop process. It evaluates the drop resistance of a product by controlling the height and impact force. It is often used to test the impact strength of product packaging, transportation and handling. Landing height, impact force, test bench size, control mode, and safety device are important parameters of single-arm drop testing machine, and the requirements for technical parameters are different for the testing of different products.
Applicable Standards
ISO2248、JISZ0202-87、GB/T4857.5-92
Machine features:
The single-arm drop testing machine can do a free drop test on the surface, angle and edge of the package, and is equipped with a digital height display instrument and a decoder for height tracking, so as to accurately give the drop height of the product, and the error from the preset drop height is not more than 2% or 10mm.
This machine adopts a single-arm double-column structure, with electric reset, electronically controlled drop and electric lifting device, which is easy to use;
Having a buffer device greatly improves the service life, stability and safety of the machine.
The single-arm setup allows for convenient product placement.
Applications
Single-arm drop testing machines are widely used in electronics, electrical appliances, packaging, toys, auto parts and other industries.

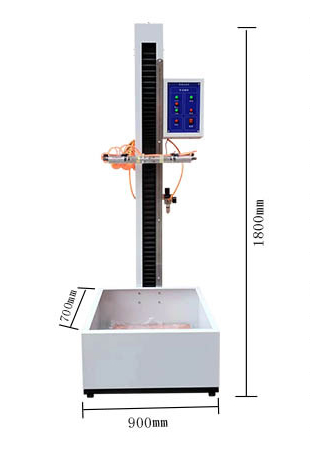

Product dimensions
HuiTai NBC-DL-564 Single arm Dropping TesterSpecifications
| LIST | VALUE |
|---|---|
| Drop height | 300~1500Mm adjustable |
| Applicable standards | ISO2248、JISZ0202-87、GB/T4857.5-92 |
| Maximum specimen Weight | 0-80Kg |
| Baseplate thickness | 10mm |
| Maximum specimen size | 800*800*1000mm |
| Impact Panel Size | 1700*1200mm |
| Drop height error | ±10mm |
| Test bench Dimensions | About 1700 * 1200 * 2315mm |
| Net Weight | About 300kg |
| Control mode | electric |
| Drop height error | 1% |
| Hit panel parallel error | ≤ 1 degree |
| The angle error between the falling surface of the piece and the horizontal during the falling process | ≤ 1 degree |
| Power | AC380V 50HZ |
| Power | 1.85KWA |
| temperature | 5 ℃~ + 28 ℃ (average temperature within 24 hours ≤ 28 ℃) |
| Relative Humidity | ≤85%RH |
| Power supply conditions | Three-phase four-wire + protective ground wire |
| Voltage range | AC（380±38）V |
| Allowable Frequency Range | （50±0.5）Hz |
| The grounding resistance of the protective ground wire is less than | 4Ω |
HuiTai NBC-DL-564 Single arm Dropping Tester Packing list
Complete machine X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
