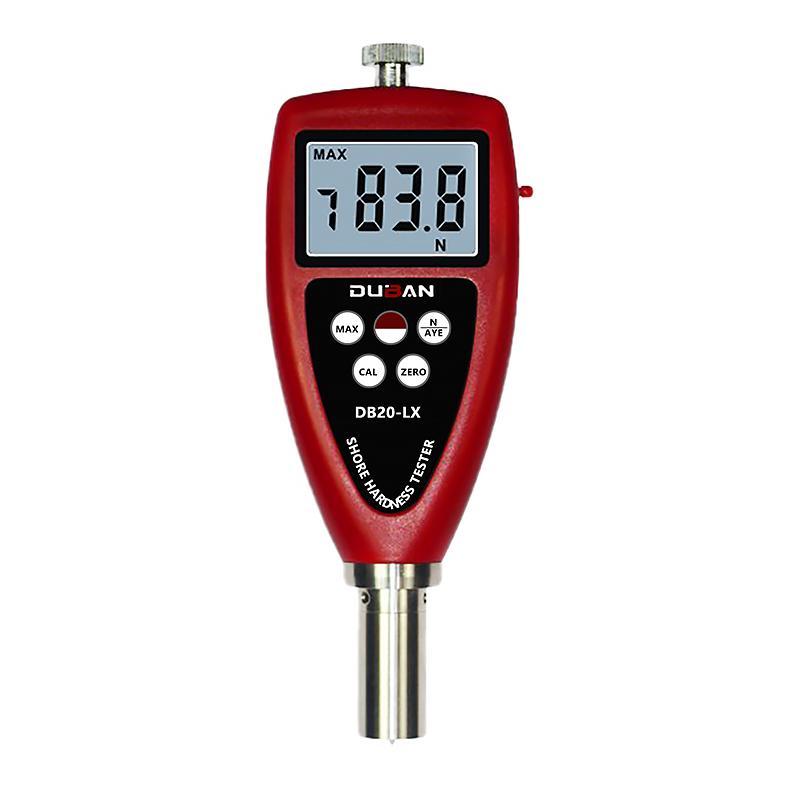

DUBAN DB20-LX-D Type D Shore Durometer 30 °/R0.1/4536gf Hard Rubber/Hard Plastic

R0.1 cone stylus, Hardness value > 90A, suitable for hard plastic, hard rubber, hard thermal plasticity plastic, hard thermal plasticity resilience.

Brand

SKU: NB044126

Duban

Model

DB20-LX-D

Price

$ 337.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

Duban shopSE

Information

Datasheet RFQ Contract Catalog Manual

What else did others buy

Genuinegoods

Duban DB20-LX-D D Shore Shore DurometerOverview
Specifications
Comments
FAQs

DB20-LX-D

D Shore Shore Durometer

R0.1 cone stylus, Hardness value > 90A, suitable for hard plastic, hard rubber, hard thermal plasticity plastic, hard thermal plasticity resilience.

The Shore Hardness Tester series includes eight models: A, B, C, D, E, O, DO, and OO. It is designed to provide you with a wide range of hardness measurement solutions to meet the hardness measurement needs of different objects, especially for rubber. and hardness determination of plastics.

Features

Diversity: Eight models are available, each with unique measurement probe sizes, measurable objects and hardness value ranges to meet a variety of application needs.

Portability: The structure is simple, the volume is compact, and the weight is light. It is suitable for carrying around for handheld measurement, and can also be easily installed on the same type of fixed load rack produced in the supporting equipment for fixed load measurement.

Data processing: Supports metric and imperial unit conversion, has average value calculation, maximum value latch and under-Voltage alarm indication functions to ensure accurate and reliable measurement results.

Data transmission: Data can be transmitted and recorded with the computer through USB data line output and RS-232 data line output to facilitate data management and analysis.

Bluetooth connection: Bluetooth™ data output option is provided, making data transmission more convenient and enabling wireless connection.

No matter what hardness measurement solution your application requires, the Shore Hardness Tester series can meet your needs. It is portable and powerful, making it a good choice for hardness measurement.

Optional models

model	stylus	hardness value
A	0.79 truncated cone	20-90A
	Soft rubber, soft vulcanized rubber, natural rubber, nitrile rubber, thermoplastics, thermoplastic elastomers, waxes, felt products, leather products
B	R0.1 tapered	>90A <20D
	Moderately hard rubber, thermoplastics, thermoplastic elastomers, paper products, fiber materials
C	0.79 truncated cone	>90B <20D
	Medium hardness rubber, medium hardness plastics and thermoplastics, thermoplastic elastomers
D	R0.1 tapered	>90A
	Hard plastic, hard rubber, hard thermoplastic, hard thermoplastic elastomer
DO	R1.2 hemispherical	>90C <20D
	Moderately hard rubber, thermoplastics, thermoplastic elastomers, high-density textile spindles
O	R1.2 hemispherical	<20DO
	Soft rubbers, thermoplastics, thermoplastic elastomers, very soft plastics and thermoplastics, medium density textile spindles
E	R2.5 hemispherical	>90DO <20D
	Hard sponge, EVA
OO	R1.2 hemispherical	<20O
	Very soft rubber, very soft plastics and thermoplastics, sponges, foams, low density textile spindles, human and animal tissue

Hardness selection:

Detailed picture of Duban DB20-LX-D D type Shore Hardness Tester 1

Optional :

Shore Hardness Tester test rack

USB data cable output

RS-232C data line output

BluetoothBluetooth™ data output

Duban DB20-LX-D D type Shore Hardness Tester details Figure 2

The use of Shore Hardness Tester test bracket can effectively improve the accuracy of rubber hardness measurement. The test force is applied through the weight of the bracket on the central axis of the durometer needle , so that the pressure foot of the Hardness Tester presses on the sample, thereby obtaining a comparison Stable and accurate hardness values.

Detailed picture of Duban DB20-LX-D D type Shore Hardness Tester 3

Duban DB20-LX-D D Shore Shore DurometerSpecifications

LIST	VALUE
Resolution	0.1HD
Accuracy	≤1HD
Measurement range	>90A
Display parameters	Hardness/Average/MAX Maximum
Operating Environment	Temperature 0~40 ℃ Humidity < 90RH
Power	2X1.5v AAA 7 batteries
size	176x63x25 mm
Weight	310 g (without battery)

Duban DB20-LX-D D Shore Shore Durometer Packing list

Host X1, Shore Hardness block X1, portable case X1, instruction manual X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
