DUBAN DB20-LX-B Type B Shore Durometer 30 °/R0.1/822gf Semi-hard Rubber/Ceramic Clay
R0.1 conical stylus, Hardness value > 90A < 20D, suitable for moderately hard rubber, thermal plasticity plastics, thermal plasticity resilience, paper products, fiber materials.
Duban
DB20-LX-B
-
AMITTARI AS-120E Shore Durometer
$ 291.00 -
DUBAN DB20-LX-E Type E Shore Durometer R2.5/822gf Hard Sponge/EVA
$ 337.00 -
Portable Shore Durometer LX-AO Hypertherm Type AO Portable Shore Durometer Hard Rubber, Hard Resin, etc
$ 136.00 -
IPRE D Impact device for measurement
$ 125.00 -
Digital microporous material Hardness Gauge HS-C Haibao C type digital microporous material Hardness Gauge
$ 385.00
The Shore Hardness Tester series includes eight models: A, B, C, D, E, O, DO, and OO. Each model is specially designed for different hardness measurement needs. These measuring instruments have different measuring probe sizes, measurable object ranges and hardness value ranges to meet your needs for hardness measurement of different objects. They are widely used in hardness testing applications of materials such as rubber and plastics.
main feature
Integrated design, the instrument is small in size, light in weight, and easy to carry and use.
It supports switching between metric and imperial units, and has the functions of average value calculation, maximum value latch and under-Voltage alarm indication, which improves the accuracy and reliability of measurement.
Supports communication with personal computer through USB data line output and RS-232 data line output to facilitate data transmission, storage and analysis.
Optional Bluetooth™ data output makes data transmission more convenient.
These Hardness Testers are not only simple in structure and easy to use, but also very lightweight. You can carry them with you for handheld measurement, or install them on the corresponding model of fixed load rack for fixed load measurement. Whatever your hardness measurement needs are, we have the products to meet your requirements.
Optional models
| model | stylus | hardness value |
| A | 0.79 truncated cone | 20-90A |
| Soft rubber, soft vulcanized rubber, natural rubber, nitrile rubber, thermoplastics, thermoplastic elastomers, waxes, felt products, leather products | ||
| B | R0.1 tapered | >90A <20D |
| Moderately hard rubber, thermoplastics, thermoplastic elastomers, paper products, fiber materials | ||
| C | 0.79 truncated cone | >90B <20D |
| Medium hardness rubber, medium hardness plastics and thermoplastics, thermoplastic elastomers | ||
| D | R0.1 tapered | >90A |
| Hard plastic, hard rubber, hard thermoplastic, hard thermoplastic elastomer | ||
| DO | R1.2 hemispherical | >90C <20D |
| Moderately hard rubber, thermoplastics, thermoplastic elastomers, high-density textile spindles | ||
| O | R1.2 hemispherical | <20DO |
| Soft rubbers, thermoplastics, thermoplastic elastomers, very soft plastics and thermoplastics, medium density textile spindles | ||
| E | R2.5 hemispherical | >90DO <20D |
| Hard sponge, EVA | ||
| OO | R1.2 hemispherical | <20O |
| Very soft rubber, very soft plastics and thermoplastics, sponges, foams, low density textile spindles, human and animal tissue | ||
Hardness selection:
Optional :
Shore Hardness Tester test rack
USB data cable output
RS-232C data line output
BluetoothBluetooth™ data output
The use of Shore Hardness Tester test bracket can effectively improve the accuracy of rubber hardness measurement. The test force is applied through the weight of the bracket on the central axis of the durometer needle , so that the pressure foot of the Hardness Tester presses on the sample, thereby obtaining a comparison Stable and accurate hardness values.

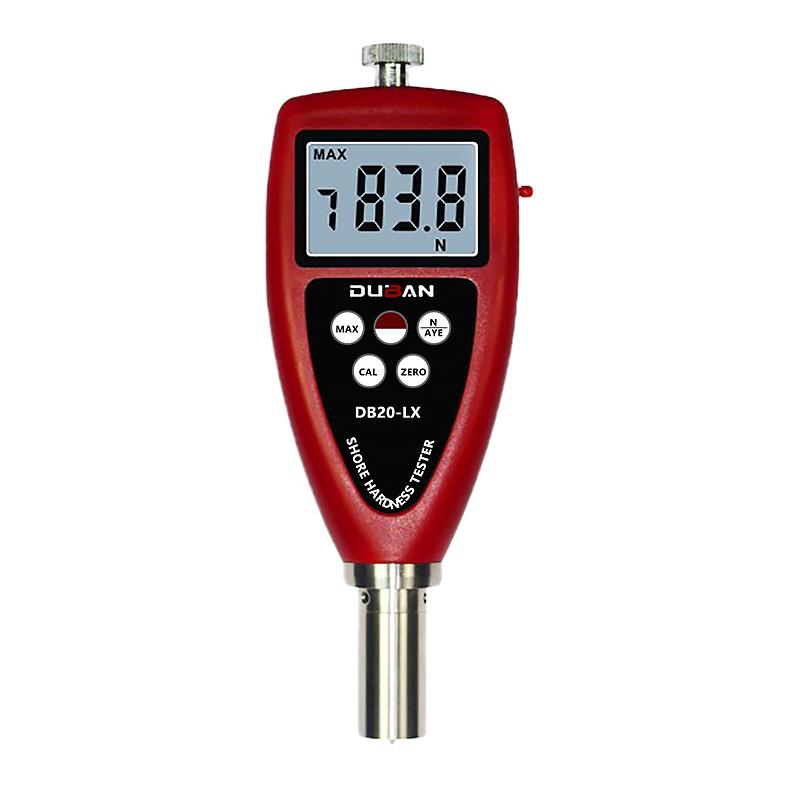

Duban DB20-LX-B Type B Shore Shore DurometerSpecifications
| LIST | VALUE |
|---|---|
| Resolution | 0.1HB |
| Accuracy | ≤1HB |
| Measurement range | >90A <20D |
| Display parameters | Hardness/Average/MAX Maximum |
| Operating Environment | Temperature 0~40 ℃ Humidity < 90RH |
| Power | 2X1.5v AAA 7 batteries |
| size | 176x63x25 mm |
| Weight | 310 g (without battery) |
Duban DB20-LX-B Type B Shore Shore Durometer Packing list
Host X1, Shore Hardness block X1, portable case X1, instruction manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
