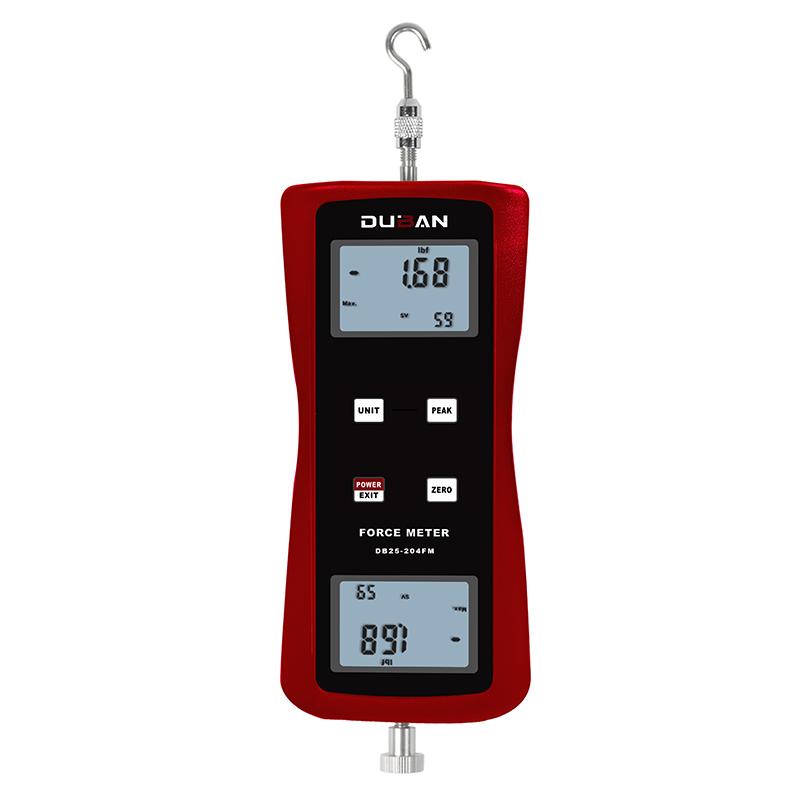

DUBAN DB25-204FM-200N Integrated Force Gauge Digital Push-pull Force Tester
Measurement range +/- 20kgf; +/- 196N; +/- 44Lbf, resolution 0.01kgf; 0.1N; 0.01Lbf, accuracy level 0.5, accuracy +/- 0.5% FS (range) +/- 1 digital peak, unit kgf, gf, N, Lbf, Measured value peak, instantaneous value
Duban
DB25-204FM-200N
DB25-207FM-200N
-
LANDTEK FM-207-200K Portable Force Gauge Measurement range +/- 200kgf
$ 402.00 -
Hypertherm HDD-2000S intelligent double column vertical machine
$ 1372.00 -
LANDTEK FM-207-10K Handheld Force Gauge Measurement range +/- 10kgf
$ 332.00 -
Sandu SHB-50K Digital Force Gauge 50KN Graduation 0.01KN
$ 773.00 -
SUNDOO SG-20KC Large size Pointer Force Gauge measuring range 20KN
$ 441.00
Applications
The digital display push-pull force meter is a small, simple, multi-functional and high-precision thrust and pull force testing instrument. It is widely used in electronic appliances, building hardware, light industrial textiles, auto parts, lighters and other ignition devices, fire-fighting equipment, pen making, and Push-pull load, insertion and extraction force testing, destructive testing, etc. in industries such as locks, fishing gear, chemical industry, power machinery, scientific research institutions, etc.
Features
High precision and high resolution. Digital display, no parallax.
Four measurement units of N (Newton), kg (kilogram), lb (pound), and g (gram) are available for selection and mutual conversion.
Peak hold function. Maintain peak value display until manually cleared to zero.
It can be set to automatically shut down after 10 minutes of no operation; it can also be shut down manually.
It can be powered by alkaline batteries; it can also be powered by a 5V DC power supply.
Attachment purpose
Series model
Duban DB25-204FM-200N Force GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measurement range | ±20kgf；±196N；±44Lbf |
| Resolution | 0.01kgf；0.1N；0.01Lbf |
| Accuracy | Level 0.5 |
| Accuracy | +/- 0.5% FS (range) +/- 1 digital peak |
| unit | kgf, gf, N, Lbf |
| Measured value | Peak, instantaneous value |
| monitor | Four-digit large LCD, forward and reverse dual display |
| shutdown mode | 10 minutes automatic shutdown or manual shutdown |
| Backlight | Blue backlight |
| allowable load | 150% F.s (buzzer alarm when it exceeds 110% F.s) |
| Power | 2 AA batteries or 5V DC Power |
| Operating temperature | 0°C~40°C |
| Operating humidity | <80% |
| Operating Environment | No source and corrosive medium around |
| size | 199mmx76mmx37 mm |
Duban DB25-204FM-200N Force Gauge Packing list
Electronic tension meter X1, tension hook X1, plane probe X1, conical probe X1, V-groove probe X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
