DUBAN DB22-CM212B split type coating Thickness Gauge, iron and aluminum double base Film Thickness Gauge 2mm statistical model
Statistical model, magnetic Induction + eddy Current, measurement range 0~2000μm, error range +/- 1~ 3% n or +/- 2.5μm, resolution 0.1μm/1μm, minimum measurement surface 6mm
Duban
DB22-CM212B
-
Germany EPK MikroTest NiFe50 McCourt Eletroplating Nickel Thickness Gauge, Thickness Measurement: 0~50μm
$ 2443.00 -
Defelsko F0S split 0 ° probe 1150 μm/+/- 1% for small parts, edge coating measurements
$ 1025.00 -
US Defelsko PosiTector 6000 FNDS1 Composite Coating Thickness Gauge measurement paints and galvanized layer thickness
$ 1547.00 -
Defelsko PosiTector 6000 N0S1 Coating Thickness Gauge non-ferrous metal substrate (such as copper and aluminum) nonconductive coating
$ 1276.00 -
Linshang LS225 Coating Thickness Gauge with F500 Magnetic Probe + Test Fixture
$ 879.00
Applications
The coating Thickness Gauge is a portable measuring instrument that can quickly, non-destructively and accurately measure the thickness of coatings and coatings. It can be used at engineering sites and in laboratories. It is an essential instrument for material protection professionals.
Features
DB-2112BS can store 99 sets of measurement data; it has a statistical function and automatically calculates the maximum value, minimum value and average value during statistical measurement.
It has metric and imperial unit conversion; automatic shutdown and under-Voltage prompt functions.
It can automatically memorize calibration values and automatically identify the material of the substrate being measured.
Uses USB and Bluetooth data output to communicate with PC.

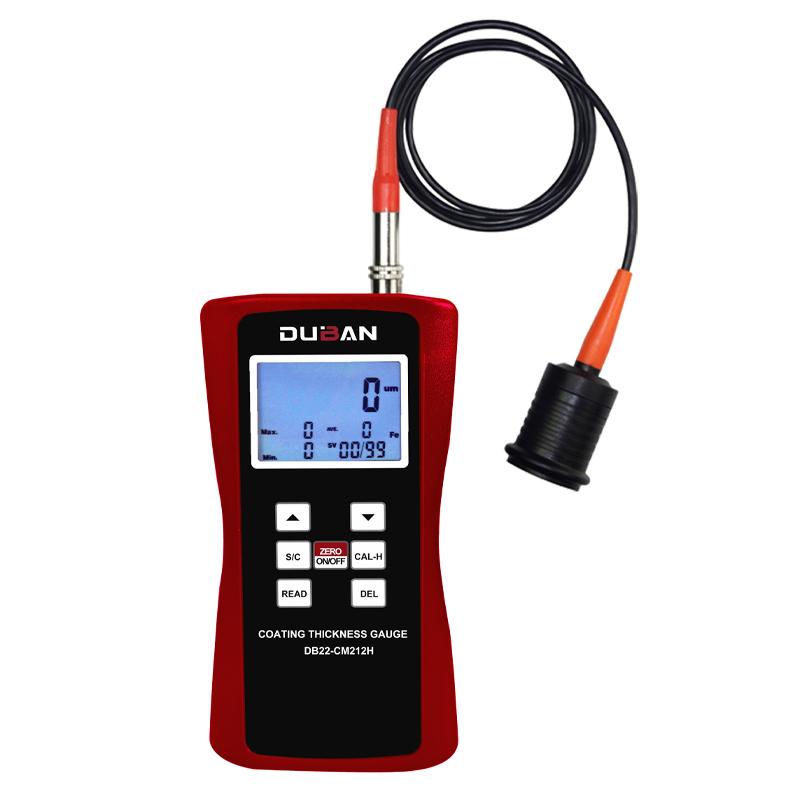

Duban DB22-CM212B Split type coating Thickness GaugeSpecifications
| LIST | VALUE |
|---|---|
| Measurement principle | Magnetic Induction + eddy Current |
| Measurement range | 0~2000μm |
| margin of error | ±1~3%n ±2.5μm |
| Minimum measurement surface | 6mm |
| minimum curvature | F: convex 1.5mm/concave 25mm; N: convex 3mm/concave 50mm |
| thinnest substrate | 0.3mm |
| Unit display | Metric/Imperial |
| statistical function | 99 sets of data |
| Power | No. 7 battery * 4 |
Duban DB22-CM212B Split type coating Thickness Gauge Packing list
Host X1, manual X1, F/NF Sensors X1, iron-based X1, aluminum-based X1, portable case X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
FAQ
- ActiveQJ 990.3A-2011
- ReplacedNF EN ISO 2808-2007
- ActiveGB/T 13448-2019
- ActiveISO 2808-2019
- AbolishGB/T 13448-2006
