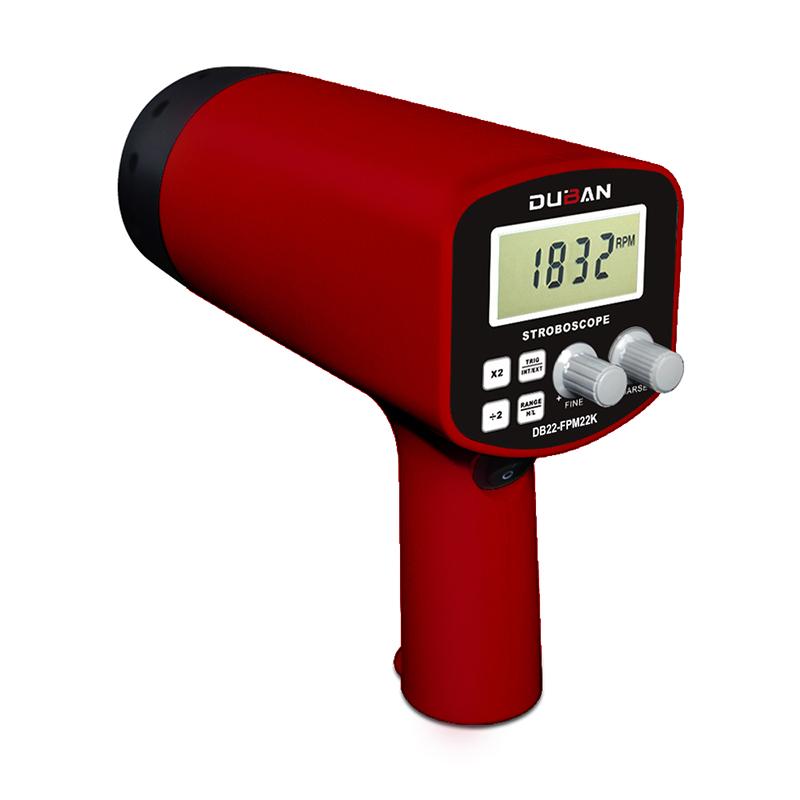

DUBAN DB22-FPM22K Stroboscope 50~22000 FPM
Measurement range 50~22000 FPM, measurement accuracy +/- (0.05% + 1nd), Sampling time 0.3s, fast FM × 2, ÷ 2, internal/external trigger free conversion, Lamp life 100 million times
Duban
DB22-FPM22K
DB22-FPM42K
DB22-FPM12K
DB22-FPM12KBAT
-
SMART SENSOR AR4105A Ground Resistance Tester
$ 133.00 -
YUZHOU PG-2D metallographic sample polishing machine, double disc independent operation, large disc diameter
$ 700.00 -
AMITTARI AT-135B Stroboscopic Rotation speed instrument, stroboscopic instrument 50~40000FPM
$ 332.00 -
QIWEI QW-NSY-12ST (timing) sample condensing instrument, air drying instrument 12 holes PID temperature control
$ 242.00 -
CHINA NBC-1000 home appliance stability test bench, tilt stability test bench
$ 876.00
Applications
The stroboscope is used to detect the rotation speed and movement frequency of the object (for example: motor). The stroboscope can also be used to analyze the vibration of the object, the movement of high-speed moving objects, and high-speed photography.
Features
Digital display, no parallax; wide measuring range, high resolution.
Functions such as automatic flash stop save electricity and increase the service life of the strobe light.
Quick conversion of internal trigger/external trigger selection; double frequency and half frequency fast frequency modulation function.
When working in external trigger mode (using photoelectric signals), the automatic tracking function of the pattern can be realized.
Using many advanced technologies such as microcomputer technology, flash technology and anti-interference technology, the speed value can be accurately measured without contact.
Duban DB22-FPM22K StroboscopeSpecifications
| LIST | VALUE |
|---|---|
| monitor | 5-Position 10mm LCD display |
| Resolution | 0.1FPM (below 1000 FPM); 1FPM (above 1000 FPM) |
| Measurement range | 50~22000 FPM |
| Measurement Accuracy | ±(0.05%+1nd ) |
| Sampling time | 0.3s |
| Fast FM | ×2，÷2 |
| internal/external trigger | Free conversion |
| Lamp life | 100 million times |
| Power | AC220±10%v,2A, 50Hz |
| size | 210x85x185 mm |
| Weight | 660g |
Duban DB22-FPM22K Stroboscope Packing list
Host X1, portable case X1, instruction manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
