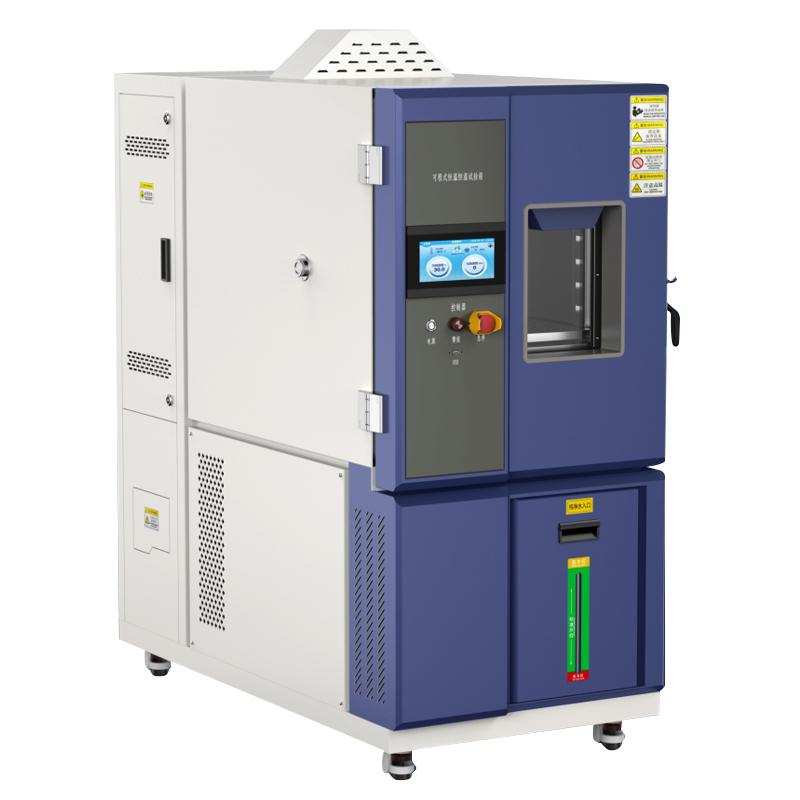

HUITAI GDT-100B High and low temperature alternating climate chamber Humidity test chamber 100L/-40~ 150 ℃

Temperature range -40~ 150 ℃, Temperature Fluctuation ≤ +/- 0.5 ℃, temperature deviation ≤ +/- 2 ℃, Temperature Uniformity ≤ 2 ℃, Temperature resolution 0.1 ℃, heating rate -40 ℃ → 100 ℃ 3~ 5 ℃/min, cooling rate + 25 ℃ → -40 ℃ 1~ 1.5 ℃/min.

Brand

SKU: NB044233

HuiTai

Model

GDT-100B

Get Quote

HuiTai shopSE

Information

Datasheet Catalog

What else did others buy

Genuinegoods

HuiTai GDT-100B High and low temperature alternating climate chamberOverview
Specifications
Comments
FAQs

GDT-100B

High and low temperature alternating climate chamber

Instrument interface

GDT series configuration

temperature range	Aï¼-20~150 Bï¼-40~150℃ Cï¼-60~150℃
Humidity range	20%~98% Relative Humidity (model with H)
Display instrument	7-inch TFT color LCD display (can be connected to RMCS control software)
Operation mode	Fixed value mode, program mode (preset 100 groups, 100 steps, 999 cycles)
control method	BTC balance temperature control method + DCC (intelligent cooling capacity control) + DEC (intelligent electrical control) (temperature test equipment) BTHC balance temperature and humidity control method + DCC (intelligent cooling capacity control) + DEC (intelligent electrical control) ( Temperature and humidity testing equipment)
Curve recording function	It has battery-protected RAM that can save the deviceâs setting values, sampling values ââand sampling time; the maximum recording time is 350 days (when the sampling cycle is 1/min)
Software usage environment	The upper computer operating software is compatible with XP, Win7, Win8, and Win10 operating systems (provided by the user)
Communication function	Choose one of RS-485 interface MODBUS RTU communication protocol and Ethernet interface TCP/IP communication protocol; support secondary development and provide host computer operation software, RS-485 interface single device link, Ethernet interface can realize remote communication of multiple devices Online.
Way of working	A/B: Mechanical single-stage compression refrigeration system C: Two-stage cascade compressor refrigeration method
way of observation	Heated viewing window with LED internal lighting
Temperature and humidity sensing method	Temperature: Class A PT100 armored thermocouple Humidity: Class A PT100 armored thermocouple Dry and wet bulb thermometer method (works only in tests with humidity control)
safety protection	Fault alarm and cause, processing prompt function, power-off protection function, upper and lower limit temperature protection function, calendar timing function (automatic start and automatic stop running), self-diagnosis function
Verify configuration	Access hole with silicone plug (50 mm, 80mm, 100mm left)
Data interface	Ethernet + software, USB data export, 0-40MA signal output

Implementation standards

GB/T5170.2-2008 Temperature test equipment

GB/2423.1-2008 (1EC60068-2-1:2007) Low temperature test method AB.

GB/2423.2-2008(1EC60068-2-2:2007) High temperature test method BA. GB/T5170.5-2008 Damp heat test equipment.

GJB150.3(MIL-STD-810D) High temperature test method.

GJB150.4(MIL-STD-810D) Low temperature test method.

GB2423.3-93 (IEC68-2-3) Test Ca: Constant damp heat test method.

GB2423.4-93(1EC68-2-30) Test Db: alternating damp heat test method.

Equipment security protection

Cooling System

Compressor overpressure protection
Compressor motor overheat protection
Compressor motor overcurrent protection

humidification system

Humidification tube dry burning protection
Water supply abnormality protection
Water shortage abnormality protection

Test chamber protection

Adjustable test space over-temperature protection
Air conditioning channel extreme over-temperature protection
Ultra-high temperature protection is set inside the controller
Fan motor overheat protection

Other protection

Total power phase sequence and phase loss protection
Whole machine leakage protection
Load short circuit protection
Closed lightning protection

Refrigeration process

Refrigeration Compressors

French Taikang fully enclosed compressor

Way of working

A/B: Mechanical single-stage compression refrigeration system

C: Cascade compressor refrigeration method

Evaporator

High-efficiency components use slope-type evaporators (AC&R compound spoiler-type aluminum fins)

condenser

Adopt water cooling system to facilitate equipment movement, etc.

heat exchanger

Ultra-high efficiency SWEP plate type cold coal cold and heat exchange design is more efficient than the traditional internal spiral type

Installation process

1. Adopt nitrogen flushing welding process, use oxygen-free copper pipes for low-temperature connecting pipes, and use 48-hour high pressure-maintaining and anti-leakage process to ensure welding quality.

2. The pipeline installation adopts the bending process of pipe bending machine. Elbow welding is not allowed in the turning parts.

3. The low-temperature pipeline is equipped with shock-absorbing process pipes, and the refrigeration unit uses shock-absorbing springs and foot pads for shock absorption and noise reduction.

4. The filter dryer absorbs residual moisture, particles, impurities, and acidic substances in the refrigeration system.

5. The selection of solenoid valves is mainly based on brand. Necessary valve core cooling protection measures should be taken when welding solenoid valves to prevent damage or shortening of service life.

HuiTai GDT-100B High and low temperature alternating climate chamberSpecifications

LIST	VALUE
Temperature range	-40~150℃
Temperature Fluctuation	≤±0.5℃
Temperature deviation	≤±2℃
Temperature Uniformity	≤2℃
Temperature Resolution	0.1℃
Heating rate	-40 ℃ → 100 ℃ 3~ 5 ℃/min (mechanical refrigeration, under standard load)
Cooling rate	+ 25 ℃ → -40 ℃ 1~ 1.5 ℃/min (mechanical refrigeration, under standard load)
Standard load Capacity	1Kg aluminum sheet, 200W calorific value
Interior Volume	100L
Voltage	220V/25A
Power	4.5Kw
Interior size	500400500mm
Dimensions	70013001600m

HuiTai GDT-100B High and low temperature alternating climate chamber Packing list

Host X1, instruction manual X1, certificate X1, Shelf X2

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

How does the GDT-100B device support the durability testing of automotive parts in heat and humidity environments?

[A]

The GDT-100B offers a relative humidity range of up to 98% and is suitable for simulating the use of automotive parts in humid environments, such as heat and humidity durability testing of interior parts and electronic Control Units to ensure its Reliability in real-world driving conditions.

[Q]

What are the application cases of GDT-100B high and low temperature climate box in the pharmaceutical industry?

[A]

GDT-100B can be used in the pharmaceutical industry to test the Stability of traditional Chinese medicines, simulate the storage and transportation environment of medicines under different temperature and Humidity conditions, ensure the mass and effectiveness of medicines, and comply with relevant pharmacopoeia and regulatory requirements.

[Q]

What are the main applications of GDT-100B in the aerospace industry?

[A]

GDT-100B can be used to simulate the operating environment of aerospace equipment under extreme temperature and Humidity conditions, such as the performance test of aircraft electronic equipment in high altitude and low temperature environment, to ensure the Reliability and safety of equipment under various severe weather conditions.
