        Home> High-Low Temperature Chamber> HuiTai> HuiTai GDT-1000CH High and low temperature alternating climate chamber

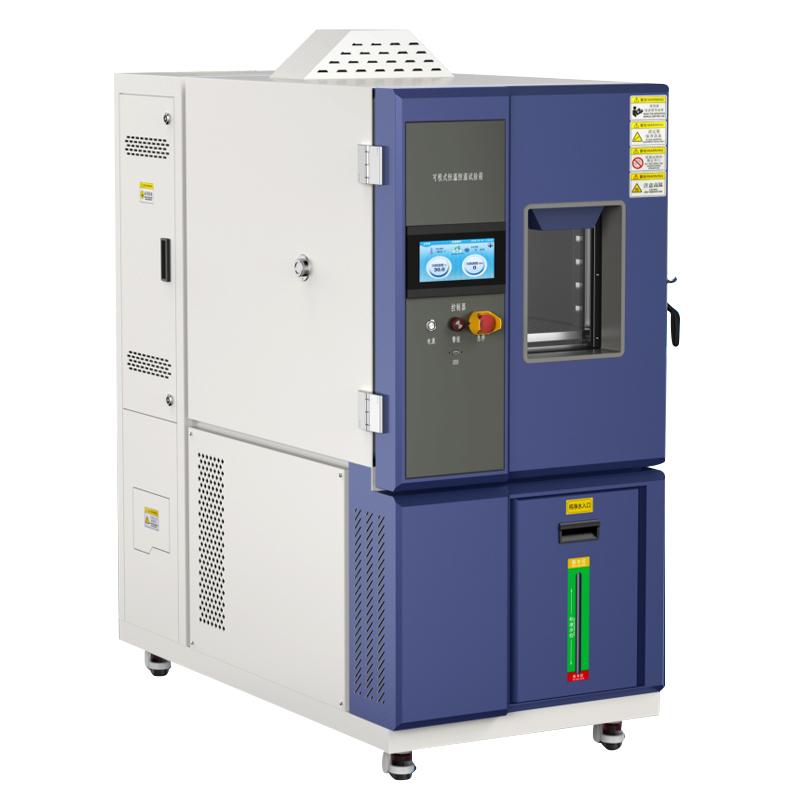

        HuiTai GDT-1000CH High and low temperature alternating climate chamber

        HUITAI GDT-1000CH high and low temperature alternating Climate Chamber with Humidity control 1000L/-60~ 150 ℃

        Temperature range -60~ 150 ℃, Humidity range 20% R.H~ 98% R.H, studio volume 1000L, voltage 380V/50A, Power 12Kw, Inner chamber dimensions 1000 * 1000 * 1000mm.

        Brand
        SKU: NB044267
        China HuiTai
        Get Quote
        VS
        HuiTaiLOGO

        HuiTai shopSE

        Information
        Datasheet Catalog
        What else did others buy
        Genuinegoods

        • HuiTai GDT-1000CH High and low temperature alternating climate chamberOverview

        • Specifications
        • Comments
        • FAQs
        GDT-1000CH
        High and low temperature alternating climate chamber
        • HUITAI GDT-1000CH high and low temperature alternating Climate Chamber with Humidity control 1000L/-60~ 150 ℃
        • HUITAI GDT-1000CH high and low temperature alternating Climate Chamber with Humidity control 1000L/-60~ 150 ℃ Figure 1
        • HUITAI GDT-1000CH high and low temperature alternating Climate Chamber with Humidity control 1000L/-60~ 150 ℃ Figure 2
        Temperature range -60~ 150 ℃, Humidity range 20% R.H~ 98% R.H, studio volume 1000L, voltage 380V/50A, Power 12Kw, Inner chamber dimensions 1000 * 1000 * 1000mm.

        Instrument interface

        GDT series configuration

        temperature range

        A：-20~150

        B：-40~150℃

        C：-60~150℃

        Humidity range20%~98% Relative Humidity (model with H)
        Display instrument7-inch TFT color LCD display (can be connected to RMCS control software)
        Operation modeFixed value mode, program mode (preset 100 groups, 100 steps, 999 cycles)
        control methodBTC balance temperature control method + DCC (intelligent cooling capacity control) + DEC (intelligent electrical control) (temperature test equipment)
        BTHC balance temperature and humidity control method + DCC (intelligent cooling capacity control) + DEC (intelligent electrical control) ( Temperature and humidity testing equipment)
        Curve recording functionIt has battery-protected RAM that can save the device’s setting values, sampling values ​​and sampling time; the
        maximum recording time is 350 days (when the sampling cycle is 1/min)
        Software usage environmentThe upper computer operating software is compatible with XP, Win7, Win8, and Win10 operating systems (provided by the user)
        Communication functionChoose one of RS-485 interface MODBUS RTU communication protocol and Ethernet interface TCP/IP communication protocol; support secondary development and
        provide host computer operation software, RS-485 interface single device link, Ethernet interface can realize remote communication of multiple devices Online.
        Way of workingA/B: Mechanical single-stage compression refrigeration system
        C: Two-stage cascade compressor refrigeration method
        way of observationHeated viewing window with LED internal lighting
        Temperature and humidity sensing methodTemperature: Class A PT100 armored thermocouple
        Humidity: Class A PT100 armored thermocouple
        Dry and wet bulb thermometer method (works only in tests with humidity control)
        safety protectionFault alarm and cause, processing prompt function, power-off protection function, upper and lower limit temperature protection function, calendar timing function
         (automatic start and automatic stop running), self-diagnosis function
        Verify configurationAccess hole with silicone plug (50 mm, 80mm, 100mm left)
        Data interfaceEthernet + software, USB data export, 0-40MA signal output

        Implementation standards

        GB/T5170.2-2008 Temperature test equipment

        GB/2423.1-2008 (1EC60068-2-1:2007) Low temperature test method AB.

        GB/2423.2-2008(1EC60068-2-2:2007) High temperature test method BA. GB/T5170.5-2008 Damp heat test equipment.

        GJB150.3(MIL-STD-810D) High temperature test method.

        GJB150.4(MIL-STD-810D) Low temperature test method.

        GB2423.3-93 (IEC68-2-3) Test Ca: Constant damp heat test method.

        GB2423.4-93(1EC68-2-30) Test Db: alternating damp heat test method.


        Equipment security protection

        Cooling System

        • Compressor overpressure protection

        • Compressor motor overheat protection

        • Compressor motor overcurrent protection

        humidification system

        • Humidification tube dry burning protection

        • Water supply abnormality protection

        • Water shortage abnormality protection

        Test chamber protection

        • Adjustable test space over-temperature protection

        • Air conditioning channel extreme over-temperature protection

        • Ultra-high temperature protection is set inside the controller

        • Fan motor overheat protection

        Other protection

        • Total power phase sequence and phase loss protection

        • Whole machine leakage protection

        • Load short circuit protection

        • Closed lightning protection


        Refrigeration process

        Refrigeration Compressors

        French Taikang fully enclosed compressor

        Way of working

        A/B: Mechanical single-stage compression refrigeration system

        C: Cascade compressor refrigeration method

        Evaporator

        High-efficiency components use slope-type evaporators (AC&R compound spoiler-type aluminum fins)

        condenser

        Adopt water cooling system to facilitate equipment movement, etc.

        heat exchanger

        Ultra-high efficiency SWEP plate type cold coal cold and heat exchange design is more efficient than the traditional internal spiral type

        Installation process

        1. Adopt nitrogen flushing welding process, use oxygen-free copper pipes for low-temperature connecting pipes, and use 48-hour high pressure-maintaining and anti-leakage process to ensure welding quality.

        2. The pipeline installation adopts the bending process of pipe bending machine. Elbow welding is not allowed in the turning parts.

        3. The low-temperature pipeline is equipped with shock-absorbing process pipes, and the refrigeration unit uses shock-absorbing springs and foot pads for shock absorption and noise reduction.

        4. The filter dryer absorbs residual moisture, particles, impurities, and acidic substances in the refrigeration system.

        5. The selection of solenoid valves is mainly based on brand. Necessary valve core cooling protection measures should be taken when welding solenoid valves to prevent damage or shortening of service life.


        VS

        HuiTai GDT-1000CH High and low temperature alternating climate chamberSpecifications

        LIST VALUE
        Temperature range -60~150℃
        Temperature Fluctuation ≤±0.5℃
        Temperature deviation ≤±2℃
        Temperature Uniformity ≤2℃
        Temperature Resolution 0.1℃
        Heating rate -40 ℃ → 100 ℃ 3~ 5 ℃/min (mechanical refrigeration, under standard load)
        Cooling rate + 25 ℃ → -40 ℃ 1~ 1.5 ℃/min (mechanical refrigeration, under standard load)
        Humidity range 20% R. H~ 98% R. H (see Temperature Humidity Controllable Chart)
        Humidity Deviation ≤±3%R.H
        Humidity stability ±1.5%R.H
        Humidity resolution 0.1%R.H
        Standard load Capacity 1Kg aluminum sheet, 200W calorific value
        Interior Volume 1000L
        Voltage 380V/50A
        Power 12Kw
        Interior size 1000*1000*1000mm
        Dimensions 1200*1900*2100mm

        HuiTai GDT-1000CH High and low temperature alternating climate chamber Packing list

        Host X1, instruction manual X1, certificate X1, Shelf X2

        [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

        FAQ

        [Q]
        What are the operating modes of the GDT-1000CH high and low temperature alternating test chamber?
        [A]
        Holding value mode and program mode, preset 100 groups of 100 steps 999 cycles, can be flexibly adjusted and set according to experimental needs.
        [Q]
        Safety protection functions of high and low temperature alternating climate box?
        [A]
        GDT-1000CH equipment has multiple Safety protections such as fault alarm and cause prompt, power-off protection, temperature protection, and timing start-stop functions to ensure the safety of equipment and users
        [Q]
        How is the Linear dispersion recording function of the GDT-1000CH?
        [A]
        The device is equipped with battery-protected RAM, which can save the device's settings, sampling values, and sampling time, with a maximum recording time of 350 days to ensure data integrity and traceability.
