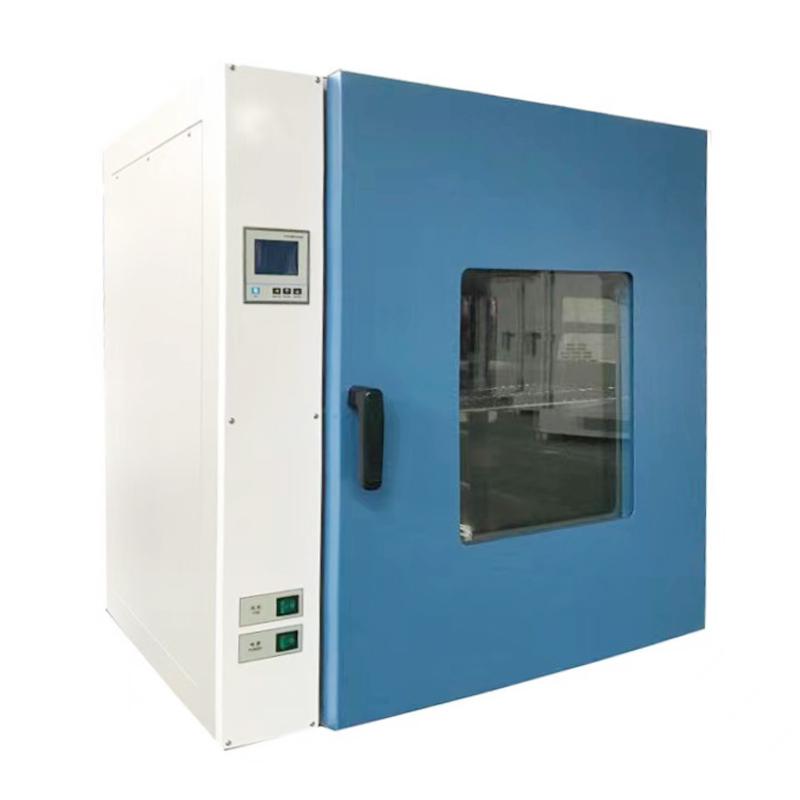

CHINA DHG-9053A Desktop Forced Air Drying Oven 850W/50L
High-Precision Platinum Resistance Sensors, Liquid Crystal Display, Pushbutton, Fuzzy PID Control Technology for Microprocessor Temperature Control.
Factory-
YIHENG DHG-9920A Vertical Forced Air Drying Oven Volume 1000L Temperature control: 10~200 ℃
$ 3458.00 -
YIHENG BPZ-6213LCB Vacuum Oven imported Vacuumpump
$ 6727.00 -
BENTING CBGL-625B vertical standard Forced Air Drying Oven 300 ℃/627L oven
Login -
YIHENG PH-240A Drying Oven/Incubator High temperature Drying Oven Input Power 2450W
$ 1084.00 -
YIHENG BPG-9156A Input Power of laboratory Forced Air Drying Oven is 1650W
$ 963.00
In laboratories, 200℃ desktop Forced Air Drying Ovens are widely used for sample processing and materials research. Researchers can use its high-temperature environment to dry experimental samples, remove moisture to ensure the accuracy of experimental results, and solidify materials to change their properties. In addition, the device also plays a role in electronic component testing, biological experiments and other fields, providing a flexible and reliable tool for laboratory research.
The 200℃ Drying Oven also plays an important role in laboratory equipment handling and catalyst research. Thermal treatment of laboratory equipment and activation of catalysts require accurate temperature control, and this equipment provides a stable high-temperature environment. This benchtop Forced Air Drying Oven provides laboratories with a versatile tool that meets the high-temperature processing needs of different research fields.
Series model
| model | DHG-9023A | DHG-9053A | DHG-9123A | DHG-9203A | |
| Operating Conditions | Ambient temperature 5ï½30℃ | ||||
| Relative Humidity â¤80% | |||||
| Altitude ⤠2000m | |||||
| Power supply AC220V±10% 50Hz±1Hz | |||||
| Way of working | LCD display, push-button type, microprocessor temperature control with fuzzy PID control technology | ||||
| High precision platinum resistance sensor | |||||
| Forced circulation convection duct | |||||
| Optional 0~9999 minutes or hour timing | |||||
| temperature | Control range | Rt+10ï½200℃ | |||
| Accuracy | 0.1℃ | ||||
| Volatility | ±1℃ | ||||
| Call the police | SV+5℃(factory value) | ||||
| Power consumption | 650W | 850W | 1500W | 2050W | |
| Material | studio | 304 stainless steel plate | |||
| shell | 08F cold rolled steel plate | ||||
| Number of shelves (standard/optional) | 2/3 | 2/3 | 2/3 | 2/4 | |
| weight | net weight | 36KG | 50KG | 73KG | 91KG |
| size | studio | 300Ã300Ã 275mm | 420Ã350Ã 350mm | 550Ã350Ã550 mm | 600Ã550Ã 600mm |
| shape | 580Ã470Ã 445mm | 710Ã520Ã 520mm | 830Ã530Ã720 mm | 880Ã740Ã790 mm | |
Factory DHG-9053A Desktop Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | Rt+10~200℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Accuracy | 0.1℃ |
| Temperature alarm | SV + 5 ℃ (factory value) |
| Interior size | 420×350×350mm |
| Chamber material | 304 stainless steel plate |
| Shelf (std.) | 2pcs |
| Shelves (max) | 3pcs |
| Timer | Optional 0~9999 minutes or hour Timer |
| Convection mode | Forced circulation convection duct |
| Temperature transducer | High-Precision Platinum Resistance Sensors |
| monitor | Liquid crystal display, push-button, fuzzy PID control technology for microprocessor temperature control |
| Power | AC 220V±10% 50Hz±1Hz |
| Power Consumption | 850W |
| Ambient Temperature | 5~30℃ |
| Relative Humidity | ≤80% |
| Dimensions | 710×520×520mm |
| Net Weight | 50KG |
| Enclosure Material | 08F Cold rolled steel plate |
Factory DHG-9053A Desktop Forced Air Drying Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
