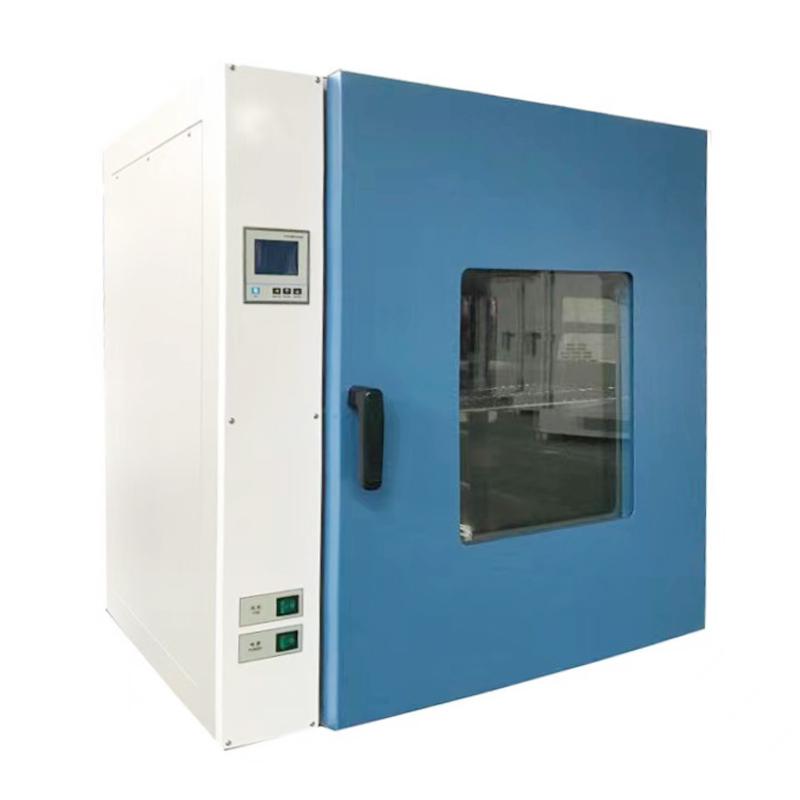

CHINA DHG-9203AE Desktop Forced Air Drying Oven 2050W/200L
Temperature range Rt + 10~200 ℃, 304 stainless steel plate, with Sensors fault alarm, over-temperature alarm, self-diagnostic dynamic control, temperature display correction function.
Factory-
SANFA HP-030A Drying Oven/Incubator (dual-use)
$ 453.00 -
MODERNER GFX-9055A Forced Air Drying Oven 50L
Login -
HUITAI DHG-9145A Blast drying oven oven 136L temperature control RT + 10~ 300 ℃
$ 599.00 -
Kenton 101-3A digital display electric Forced Air Drying Oven, galvanized tank inner tank 300 ℃/225L
$ 410.00 -
BOZHEN DZF-6250 Vacuum Oven
$ 3862.00
Applications
It is used for drying, baking, wax melting, disinfection and sterilization of non-flammable and explosive items and non-volatile items for industrial and mining enterprises, colleges and universities, biopharmaceuticals, food processing, scientific research, medical units and various laboratories. use.
Features
1. Horizontal, back heating type, horizontal forced convection ensures uniform temperature in the studio;
2. The temperature control system uses high-performance CPU processing chips and high-sensitivity, high-precision platinum resistance sensors to make temperature control more precise and easier to operate;
3. It has sensor fault alarm, over-temperature alarm, self-diagnosis dynamic control, temperature display correction, parameter memory and timing functions up to 999 minutes.
Series model
| model | DHG-9023A | DHG-9053A | DHG-9123A | DHG-9203A | |
| Operating Conditions | Ambient temperature 5ï½30℃ | ||||
| Relative Humidity â¤80% | |||||
| Altitude ⤠2000m | |||||
| Power supply AC220V±10% 50Hz±1Hz | |||||
| Way of working | LCD display, push-button type, microprocessor temperature control with fuzzy PID control technology | ||||
| High precision platinum resistance sensor | |||||
| Forced circulation convection duct | |||||
| Optional 0~9999 minutes or hour timing | |||||
| temperature | Control range | Rt+10ï½200℃ | |||
| Accuracy | 0.1℃ | ||||
| Volatility | ±1℃ | ||||
| Call the police | SV+5℃(factory value) | ||||
| Power consumption | 650W | 850W | 1500W | 2050W | |
| Material | studio | 304 stainless steel plate | |||
| shell | 08F cold rolled steel plate | ||||
| Number of shelves (standard/optional) | 2/3 | 2/3 | 2/3 | 2/4 | |
| weight | net weight | 36KG | 50KG | 72.5KG | 91KG |
| Dimensions (mm) | studio | 300Ã300Ã275 | 420Ã350Ã350 | 550Ã350Ã550 | 600Ã550Ã600 |
| shape | 580Ã470Ã445 | 710Ã520Ã520 | 830Ã530Ã720 | 880Ã740Ã790 | |
Factory DHG-9203AE Desktop Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | Rt+10~200℃ |
| Temperature Fluctuation | ±1℃ |
| Temperature Accuracy | 0.1℃ |
| Temperature alarm | SV + 5 ℃ (factory value) |
| Interior size | 600×550×600mm |
| Chamber material | 304 stainless steel plate |
| Shelf (std.) | 2pcs |
| Shelves (max) | 4pcs |
| Timer | Optional 0~9999 minutes or hour Timer |
| Convection mode | Forced circulation convection duct |
| Temperature transducer | High-Precision Platinum Resistance Sensors |
| monitor | Liquid crystal display, push-button, fuzzy PID control technology for microprocessor temperature control |
| Power | AC 220V±10% 50Hz±1Hz |
| Power Consumption | 2050W |
| Ambient Temperature | 5~30℃ |
| Relative Humidity | ≤80% |
| Dimensions | 880×740×790mm |
| Net Weight | 91KG |
| Enclosure Material | 08F Cold rolled steel plate |
Factory DHG-9203AE Desktop Forced Air Drying Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
