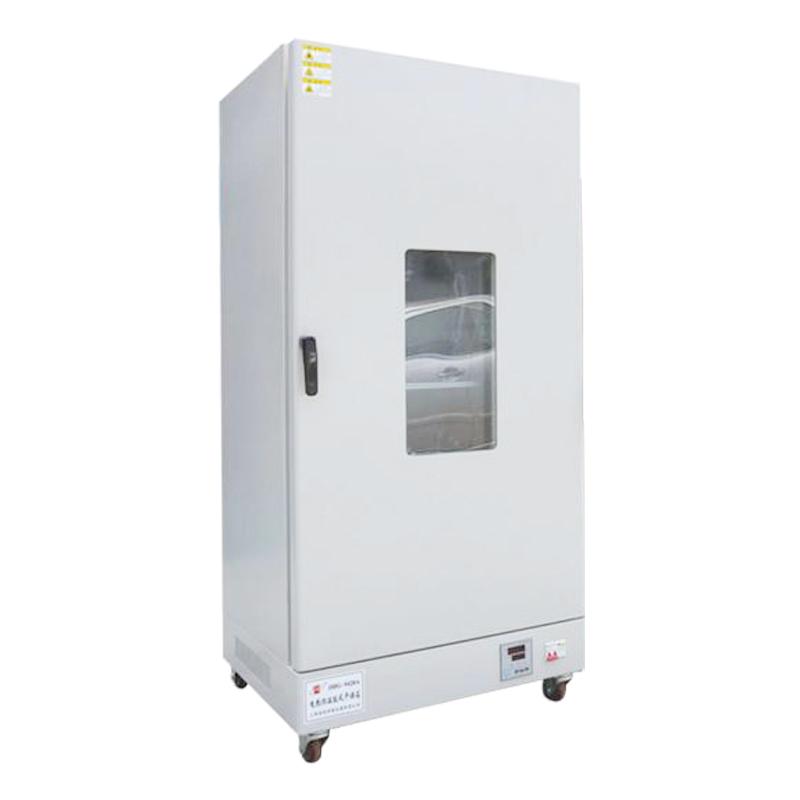

CHINA DHG-9640B vertical blast oven 5300W/300 ℃
Temperature control range Rt + 10~300 ℃, Interior size 800 * 800 * 1000mm, using three-layer tempered Glass observation window in line with CCC certification, using phosphating electrostatic powder spraying technology, more durable to use, more convenient to clean.
Factory-
BENTING CBGL-625B vertical standard Forced Air Drying Oven 300 ℃/627L oven
Login -
BENTING C101-0AB experimental Forced Air Drying Oven 250 ℃/45L oven
Login -
Kenton 101-2A digital display electric Forced Air Drying Oven, galvanized bile 101 oven 300 ℃/136L
$ 330.00 -
YIHENG BPG-9100BH High temperature Forced Air Drying Oven Volume 100L Temperature control up to 400 ℃
$ 2785.00 -
Huitai HTZ-6090L vacuum digital display Drying Oven, volume 90L
$ 3034.00
Applications
DHG-9640B vertical Forced Air Drying Oven is mainly used for powder drying and baking under vacuum conditions in industrial and mining enterprises, colleges and universities, biological products, food processing, agricultural science and technology, chemical pharmaceuticals, medical units and various laboratories. . It is especially suitable for drying heat-sensitive, easily decomposed, easily oxidized substances and items with complex components.
Features
1. The temperature control system uses high-performance CPU processing chips and high-sensitivity, high-precision platinum resistance sensors to make temperature control more precise and operation more convenient.
2. Equipped with sensor failure alarm, over-temperature alarm, self-diagnosis dynamic control, temperature display correction, parameter memory and timing function up to 9999 minutes
3. The shell is made of high-quality cold-rolled steel plate and adopts phosphating electrostatic powder spraying technology, which is more durable and easier to clean.
4. The three-layer tempered glass observation window that complies with CCC certification is safer and the samples in the observation box are clearer.
Specifications
| model | 9640B | 9420B | |||
| Operating Environment | Ambient temperature 5~30℃ | ||||
| Relative Humidity â¤80% | |||||
| Altitude ⤠2000m | |||||
| Power supply AC220V±10% 50Hz±1Hz | |||||
| Way of working | LCD display, push-button type, microprocessor temperature control with fuzzy PID control technology | ||||
| High precision platinum resistance sensor | |||||
| Forced circulation convection duct | |||||
| Optional 0~9999 minutes or hour timing | |||||
| temperature | Control range | RT+10~300℃ | |||
| resolution | 0.1℃ | ||||
| Volatility | ±1℃ | ||||
| Power consumption | 5800W | 5600W | |||
| Material | internal | 304 stainless steel | |||
| external | 08F cold rolled steel plate | ||||
| size | internal | 800*800*1000mm | 600*550*1300mm | ||
| external | 990*930*1460mm | 770*710*1750mm | |||
Factory DHG-9640B Vertical Forced Air Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Ambient Temperature | 5~30℃ |
| Relative Humidity | ≤80% |
| Altitude | ≤2000m |
| Power | AC220V±10% 50Hz±1Hz |
| Display | Liquid crystal display, push-button, fuzzy PID control technology for microprocessor temperature control |
| Sensors | High-Precision Platinum Resistance Sensors |
| Convection mode | Forced circulation convection duct |
| Timer | Optional 0~9999 minutes or hour Timer |
| Temperature control range | Rt+10~300℃ |
| Temperature Accuracy | 0.1℃ |
| Temperature Fluctuation | ±2℃ |
| Temperature alarm | SV + 5 ℃ (factory value) |
| Temperature Uniformity | ±2℃ at 100℃ |
| Inner chamber materials | 304 stainless steel plate |
| Shell material | 08F Cold rolled steel plate |
| Number of shelves (standard) | 3 |
| Power | 5800W |
| Interior size | 800*800*1000mm |
| Dimensions | 990*930*1460mm |
Factory DHG-9640B Vertical Forced Air Drying Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
