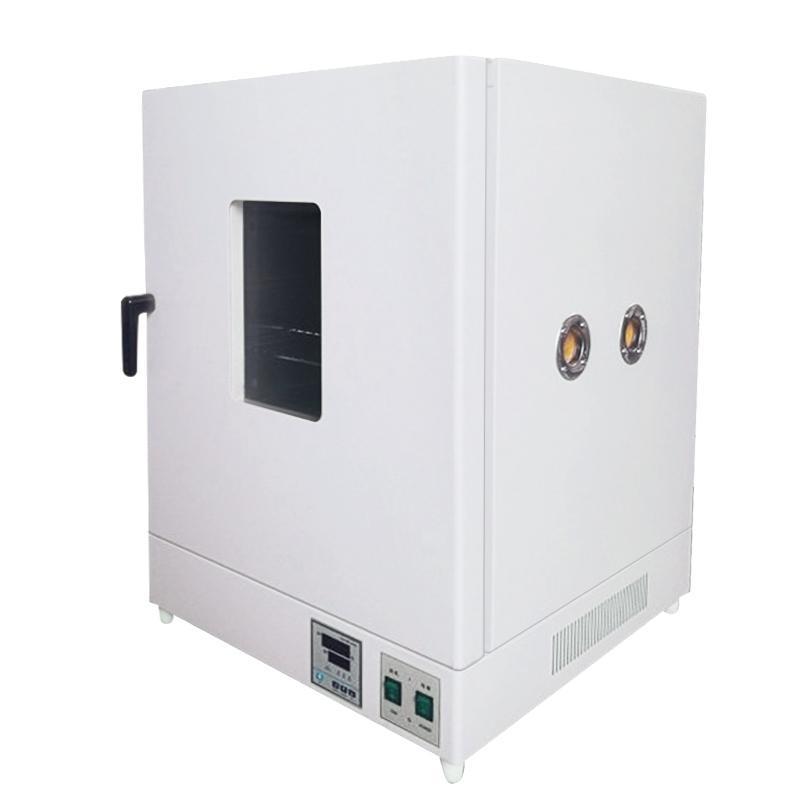

CHINA DHG-9140BE Vertical Forced Air Drying Oven Box type Forced Air Drying Oven 300 ℃/136L

Introduction

DHG-9140BE vertical Forced Air Drying Oven consists of a chamber body, heating system, electrical control system, air supply system, protection system, etc. It is used for industrial and mining enterprises, colleges and universities, biopharmaceuticals, food processing, scientific research institutions, medical units and various laboratories for drying, baking, wax melting, disinfection and sterilization of non-flammable, explosive and non-volatile items.

Box structure

1) The electric constant temperature Forced Air Drying Oven consists of a chamber body, heating system, electrical control system, air supply system, protection system, etc.

2) The cabinet is made using equipment and industry-leading manufacturing processes, with smooth lines and beautiful appearance.

3) The studio is made of stainless steel, the outer box is made of cold-rolled steel plate, and the product shell is spray-painted with metallic paint. The overall design is beautiful and elegant, and is suitable for laboratory color matching.

4) The shelves in the studio can be freely moved.

5) The insulation material between the working room and the outer box is fine glass fiber insulation cotton. The thickness of the insulation layer is >70mm. It has good insulation and high-performance edge structure. From the inside to the outside, there are inner cavity, inner shell, fine glass fiber, aluminum reflective aluminum foil, and air interlayer, so the inner tank loses less heat. The structure of the inner tank, outer box and door tank reduces the heat transfer from the inner cavity.

6) High-performance sealing materials and rubber sealing structures are used between the door and the door frame, which have good sealing, high temperature resistance and aging resistance.

7) The air duct in the box adopts a double circulation system, which is composed of a stainless steel multi-wing centrifugal wind wheel and a circulating air duct. The heat of the electric heater placed at the bottom of the box is vertically discharged upward through the bottom air duct, and then is dried by the bottom The centrifugal wind wheel inhales and forms a reasonable air channel, which can fully convection the hot air and make the temperature inside the box as uniform as possible. The air flow heating capability is greatly improved, which greatly improves the temperature uniformity of the Drying Oven.

8) The heater uses stainless steel electric heating tube, which heats up quickly and has a long life.

Specifications

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
