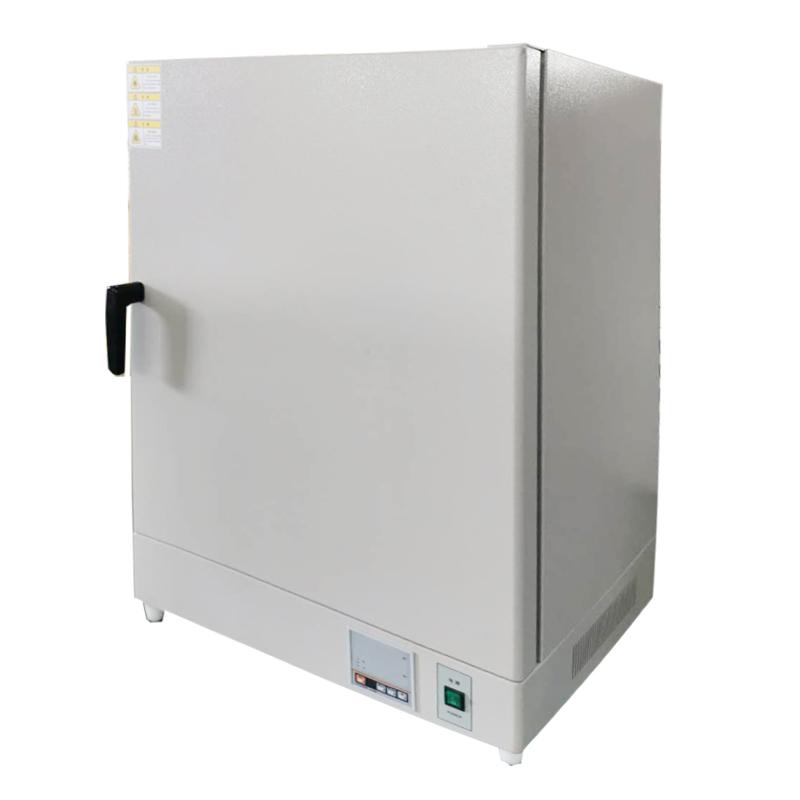

CHINA DHG-9030C high temperature Drying Oven temperature control 400 ℃ 30L
Liquid crystal display, button type, fuzzy PID control technology microprocessor temperature control, control range: Rt + 10~400 ℃, accuracy 0.1 ℃.
Factory-
BenTing BGL-50GB high temperature Forced Air Drying Oven, temperature control up to 500 ℃
$ 2260.00 -
Kenton DZF-3090S constant temperature vacuum Drying Oven, independent temperature control for each layer
$ 2331.00 -
Kenton XCT-0AS high temperature Forced Air Drying Oven 50L with independent temperature limit controller
$ 1025.00 -
RONGHUA DHG-9030A Electric thermostatic Drying Oven
$ 343.00 -
BOZHEN 766-3A Far infrared Drying Oven
$ 377.00
Applications
DHG-9030C high temperature Drying Oven can be used in industrial and mining enterprises, colleges and universities, biopharmaceuticals, food processing, scientific research, medical units and various laboratories for drying, baking and curing of non-flammable and explosive items and non-volatile items. , disinfection and sterilization. Specific uses: drying of glassware, thermal deformation, thermal hardening, thermal softening, and moisture removal of experimental samples and food chemicals; dry heat sterilization of vessels and utensils in bioengineering; drying and aging of electronic components, etc.
Features
Reasonably designed air duct structure and fanless natural convection circulation design ensure uniform temperature in the studio.
Stainless steel studio, high-quality steel plate electrostatically sprayed shell, stainless steel polished electrolytic shelf, safe and convenient to use, novel and beautiful in shape.
The temperature controller adopts a high-speed and high-performance CPU processing chip, a high-sensitivity and high-precision platinum resistance sensor, and has fixed programming control functions of timed on, timed off, and fixed value operation; the Timer Setting is up to 9999 minutes.
The temperature controller comes with sensor failure alarm, upper and lower limit temperature deviation alarm, over-temperature alarm, parameter memory temperature display correction, and self-diagnostic dynamic control technology.
Independent temperature limit control alarm system, automatically interrupts work when the temperature exceeds the limit, double insurance. (optional)
Factory DHG-9030C High temperature Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Volume | 30 |
| Ambient Temperature | RT+5~30℃ |
| Relative Humidity | ≤80% |
| Altitude | ≤2000m |
| Convection mode | Natural convection |
| Power | AC220V 50Hz |
| Temperature range | RT+10~400℃ |
| Temperature Resolution | 0.1℃ |
| Fluctuation | +0.5°C |
| Thermostat | Liquid crystal display, button type, PID microprocessor control, touch type, digital display |
| Sensors | Platinum resistance PT100 |
| Timer | Timely on and off (9999 minutes, minimum 1 minute) |
| Chamber material | 304 stainless steel |
| Enclosure Material | 08F Cold rolled steel plate |
| Interior size | 300*300*350mm |
| Dimensions | 640*520*575mm |
Factory DHG-9030C High temperature Drying Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
