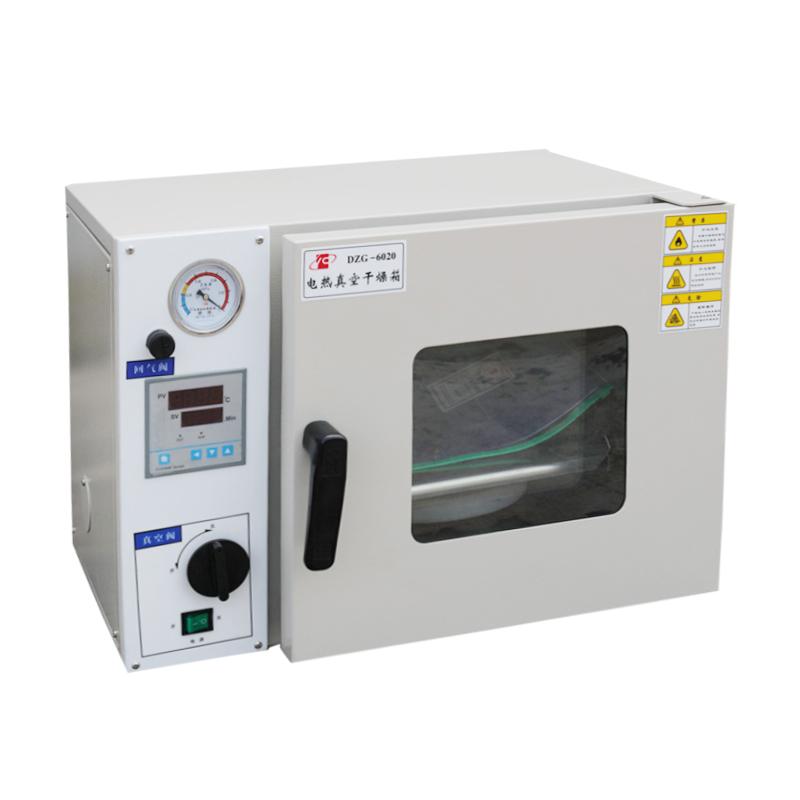

CHINA DZG-6020 Vacuum Oven 600W/25L
The selection of high-performance CPU processing chips and high-sensitivity, high-precision Platinum Resistance Sensors Temperature Control system makes temperature control more accurate and easier to operate.
Factory-
HUITAI HHG-9249A High temperature blast drying oven Volume 240L
$ 1973.00 -
CHINA DHG-9420B Vertical Forced Air Drying Oven sample heating box 5600W/300 ℃
$ 1213.00 -
HUITAI HHG-9148A High temperature electric blast dryer, volume 140L with test hole 50mm
$ 1139.00 -
YIHENG BPZ-6063LCB Vacuum Oven imported Vacuumpump
$ 3554.00 -
BENTING CBHL-125B electric thermostatic Drying Oven 300 ℃/125L
Login
Applications
Used for powder drying and baking under vacuum conditions in industrial and mining enterprises, colleges and universities, biological products, food processing, agricultural scientific research, chemical pharmaceuticals, medical units and various laboratories. It is especially suitable for drying heat-sensitive, easily decomposed, easily oxidized substances and items with complex components.
Features :
1. The tightness of the box door can be adjusted, and the integrally formed silicone rubber door seal can ensure high vacuum in the box.
2. The temperature control system uses high-performance CPU processing chips and high-sensitivity, high-precision platinum resistance sensors to make temperature control more precise and operation more convenient.
3. It has sensor failure alarm, over-temperature alarm, self-diagnosis dynamic control, temperature display correction, parameter memory and timing functions up to 9999 minutes.
4. Independent temperature limit control alarm system, automatically interrupts work when the temperature exceeds the limit, double insurance.
Series model
| Model (desktop) | 6020 | 6050 | 6090 | |
| Working temperature | Ambient temperature 5~30℃ | |||
| Relative Humidity â¤80% | ||||
| Altitude â¤1500m | ||||
| Power supply AC220V+10% 50Hz±1Hz | ||||
| temperature | Temperature control range | Room temperature +15℃~200℃ | ||
| resolution | 0.1℃ | |||
| Volatility | ±0.5℃ | |||
| controller | Digital display, push button, microprocessor temperature control with fuzzy PID control technology | |||
| sensor | High precision platinum resistance sensor | |||
| time | 0~9999 minutes | |||
| Material | internal | 304 stainless steel | ||
| external | 08F | |||
| Dimensions(MM) | internal | 300x300x275 | 415x370x345 | 450x450x450 |
| external | 590x420x460 | 710x510x530 | 740x610x590 | |
| Vacuum degree | <133Pa | |||
| heating method | Heated all around | |||
| net weight | 33KG | 71KG | ||
| Power consumption | 600W | 1300W | 1500W | |
| Shelves (most offered) | 1/1 | 2/2 | 2/2 | |
Factory DZG-6020 Vacuum OvenSpecifications
| LIST | VALUE |
|---|---|
| Ambient Temperature | 5~30℃ |
| Relative Humidity | ≤80% |
| Altitude | ≤1500m |
| Power | AC220V+10% 50Hz±1Hz |
| Temperature range | Room temperature + 15 ℃~ 200 ℃ |
| Resolution | 0.1°C |
| Fluctuation | ±0.5°C |
| Controller | Digital display, push-button, fuzzy PID control technology for microprocessor temperature control |
| Sensors | High-Precision Platinum Resistance Sensors |
| time | 0~9999 minutes |
| Internal material | 304 stainless steel |
| external material | 08F Cold rolled steel plate |
| Internal Dimensions | 300x300x275mm |
| External Dimensions | 590x420x460mm |
| vacuum | <133Pa |
| Heating mode | Around heating |
| Net Weight | 33KG |
| Power Consumption | 600W |
| Shelves (most available) | 1/1 |
Factory DZG-6020 Vacuum Oven Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
