JingKeLian KTQ-200 Adjustable Coating Applicator

JINGKELIAN KTQ-200 adjustable laboratory Film Applicator application width of 200mm

Adjustable, wet film thickness 0~3500μm, application width 200mm, accuracy +/- 2μm, material stainless steel, size 120 * 115 * 105mm

Brand

SKU: NB004444

JingKeLian

Model

Price

$ 288.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

JingKeLian shopSE

Information

Datasheet RFQ Contract Video Catalog

What else did others buy

Genuinegoods

JingKeLian KTQ-200 Adjustable Coating ApplicatorOverview
Specifications
Comments
FAQs

KTQ-200

Adjustable Coating Applicator

Adjustable, wet film thickness 0~3500μm, application width 200mm, accuracy +/- 2μm, material stainless steel, size 120 * 115 * 105mm

Overview of KTQ Adjustable Film Applicator

JinKeLian adjustable Film Applicators are divided into 4 models, KTQ-I, KTQ-II , KTQ-III , and KTQ-IV according to the different coating widths, and the coating widths are 50mm, 100mm, 150mm, and 200mm respectively . The film coating accuracy of KTQ-I/II/III/IV adjustable Film Applicators is ±2μm, which can be freely adjusted in the film thickness range of 0~3500μm, and the gap of the scraper can be adjusted in units of 10 microns.

Application of KTQ adjustable Film Applicator

The adjustable Film Applicator can adjust the scraper below by adjusting the two differentiators above the Film Applicator up and down to control the gap, that is, the thickness of the final coating.

Real shot of KTQ adjustable Film Applicator

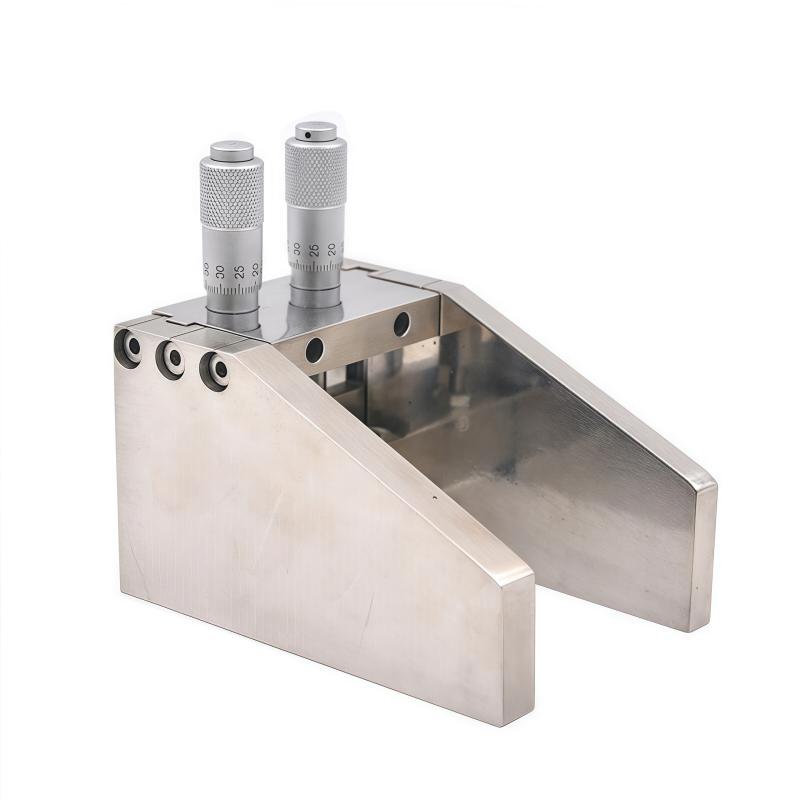

Appearance of JinKeLian KTQ adjustable Film Applicator

Model details of JinKeLian KTQ adjustable Film Applicator with different widths

JingKeLian KTQ-200 Adjustable Coating ApplicatorSpecifications

LIST	VALUE
type	Adjustable
WFT	0 ~ 3500µm
Application width	200mm
precision	± 2μm
material	stainless steel
size	120115105mm
Net Weight	450g

JingKeLian KTQ-200 Adjustable Coating Applicator Packing list

Adjustable coating applicator x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

What materials can your Applicator rod be coated with and what is the thickness? I apply metal welding glue, the thickness is about 1MM.

[A]

Wire rod can not be coated so thick, up to 200 microns, it is recommended to consider Micrometer Film Applicator

[Q]

What is the film accuracy of Jingke KTQ-200 adjustable film Applicator?

[A]

Hello, the film accuracy is ± 2μm.

[Q]

I want to do a test on the JB/T7663.2 standard, is this adjustable coating applicator okay?

[A]

Sure
