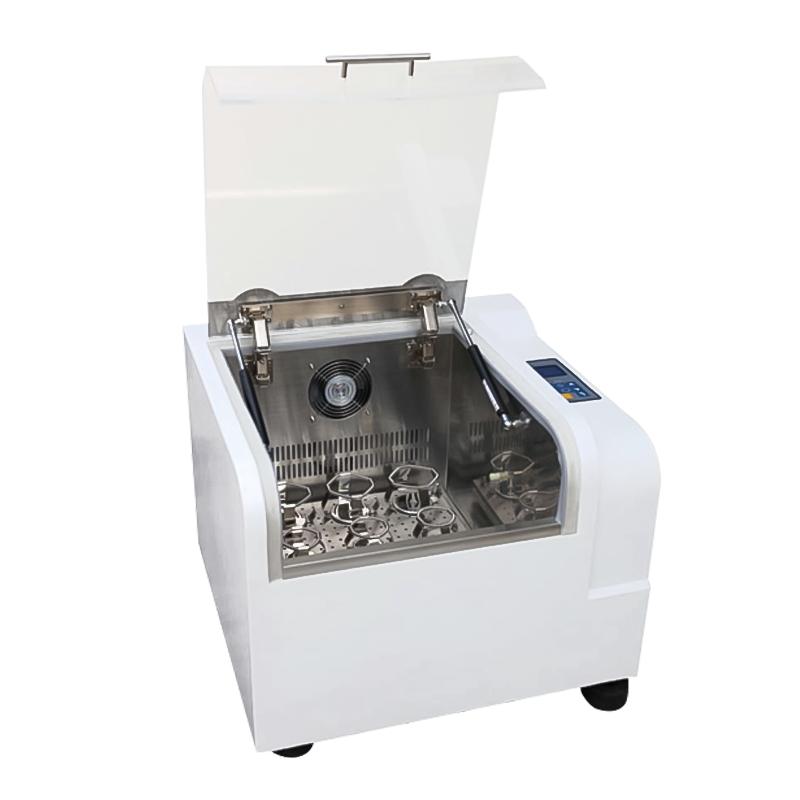

CHINA PY-200 Desktop thermostatic Shaker
Rotary drive, set thermostatic foster and Shaker in one, closed adjustable cycle heating, mirror stainless steel liner, standard 500mlx3, 250mlx3, 100mlx5, 50mlx5 fixture, Temperature range 4 ℃~ 60 ℃, rocker size 405x455mm.
Factory
PY-200
PY-100C
-
RONGHUA instrument SHZ-82A digital display thermostatic gas bath Shaker speed digital display
$ 565.00 -
RONGHUA instrument HY-A reciprocating large capacity Shaker
$ 804.00 -
YIHENG THZ-35 High-speed thermostatic foster Shaker 5mm amplitude/load-bearing 10Kg
$ 2166.00 -
Hengli HNY-110 Constant Temperature Oscillating Incubator (Room Temperature Type)
$ 2375.00 -
RONGHUA instrument HY-4 speed regulation multi-purpose Shaker horizontal reciprocating
$ 173.00
Applications
Widely used in cell culture, fermentation, hybridization, biochemistry, and scientific research on enzymes and cell tissues. Widely used in life science and other fields.
Features
It integrates a constant temperature Incubator and an oscillator into one, with more functions and less investment. When the temperature is higher than or lower than the set temperature, the host will sound an alarm.
It is equipped with an automatic stop protection device when the cover is removed to protect the operator from accidents .
Electronically controlled closed adjustable circulation heating and cooling system, silent fan design.
The streamlined and luxurious overall machine shape with rich aesthetic concepts brings you visual enjoyment. The large screen viewing window allows the operator to observe cultures cleanly during use .
Equipped with incoming call recovery function, it is not affected by power interruption .
It has a powerful and fast heating and cooling system.
Types 200 and 100B are equipped with air pressure regulating valves to make the door opening more flexible and lighter.
A wide variety of detachable rocking plates and stainless steel spring flask clamps can be combined at will .
The mirror stainless steel inner liner makes the whole machine look neat and bright.
PY series technical parameters
| model | Standard configuration | temperature control | Rocking board size |
| PY-100C | 100mlx9 | Room temperature +5~60℃ | 290x250mm |
| PY10013 | 500mlx3, 250mlx3, 100mlx4, 50mlx4 | Room temperature +5~60℃ | 405x375mm |
| PY200 | 500mlx3, 250mlx3, 100mlx5, 50mlx5 | 4~60℃ | 405x455mm |
| Other parameters | |||
| Temperature control accuracy | ±0.1℃ at constant temperature | ||
| Oscillation/drive method | Swing/Multidimensional Drive | ||
| romantic style | forced convection | ||
| amplitude | Ï24mm | ||
| rotation frequency | 20~300rpm (frequency accuracy ±1rpm) | ||
Factory PY-200 Desktop thermostatic ShakerSpecifications
| LIST | VALUE |
|---|---|
| Oscillation mode | Cyclotron/Multidimensional Drive |
| Temperature range | 4℃~60℃ |
| Temperature Accuracy | Thermostatic +/- 0.1 ℃ |
| Temperature Fluctuation | ±0.1℃ |
| Swirl/spin Frequency | 20~300rpm |
| Speed Accuracy | ±1rpm |
| Oscillation Stroke | φ24mm |
| Maximum configuration | 500mlx9、250mlx16、100mlx28 |
| Rocking board size | 405x455mm |
| Number of pallets | 1 piece |
| Liner size | 510x480x370mm |
| Timer | Can be selected arbitrarily |
| Dimensions | 800x700x520mm |
| Net Weight | 75kg |
| Input Power | 300W |
| Power | Ac220v±10% 50~60HZ |
| Display mode | LCD liquid crystal display |
| Gross Weight | 105kg |
| Control mode | PLD microcomputer intelligent control |
| Merry way | Forced convection |
| Standard configuration | 500ml*3、250ml*3、100ml*5、50ml*5 |
Factory PY-200 Desktop thermostatic Shaker Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
