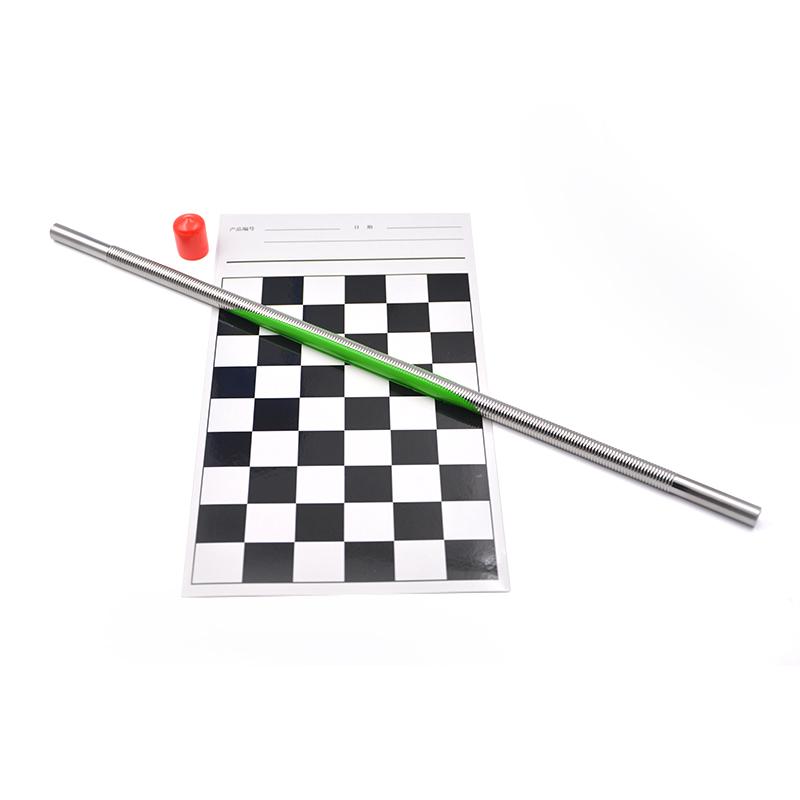

RDS 8 #1/4 "molded Mayer Rods WFT 18.3μm
It is suitable for preparing 18.3μm wet-film, rod diameter 6.35mm, Total length 400mm, effective Spreader width 300mm, suitable for Coating inks, Resin, Plastic, Pressure sensitive adhesive, etc.
RDS
8# 1/4“
8# 3/8"
8# 3/8"
Product description
RDS#8 wire rod applicator has two processes of wire-wound rod and forming rod, among which the wire-wound rod is divided into three diameters: 1/2'', 3/8'', 1/4'', the same model The wet film thickness prepared by the RDS wire Bar Coater is the same, the wet film thickness that can be coated by the RDS#8 wire Bar Coater is 18.3 microns, the rod length is 400mm, and there are 50mm grips at both ends . The RDS wire Bar Coater is made of 303 high-grade stainless steel, which has the characteristics of wear resistance and corrosion resistance. It is not only suitable for the coating and ink industry, but also widely used in resin, plastic, pressure-sensitive adhesive and other industries.
RDS 8# 1/4“ Applicator rod 1/4 "Specifications
| LIST | VALUE |
|---|---|
| Production process | formed |
| WFT | 18.3μm |
| diameter | 6.35mm |
| Total length | 400mm |
| application width | 300mm |
| Grip Width | 50+50mm |
| material | stainless steel |
RDS 8# 1/4“ Applicator rod 1/4 " Packing list
Stainless Steel Rod X1 Transparent Encasement Hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
