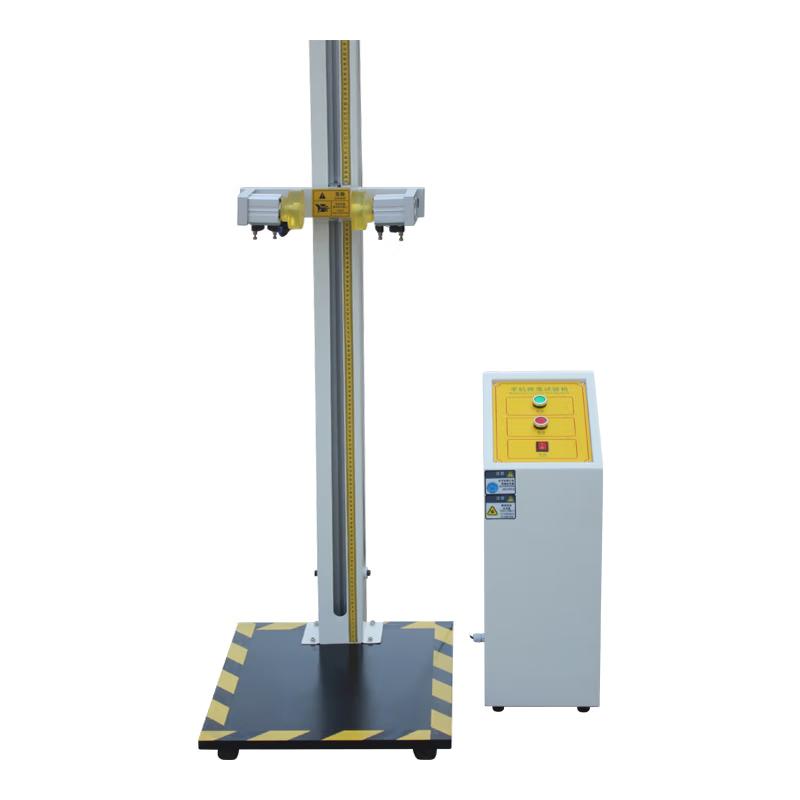

CHINA NBC-5618 Mobile phone Dropping Tester
0 °, 45 °, 90 ° multi-angle drop device, drop height 300~2000mm, test load 2kg, vacuum adsorption drop, drop height can be set, automatic lift, accurate impact site, with Acceleration, speed measurement and other functions.
Factory
NBC-5618
-
CHINA NBC-8516 single wing Dropping Tester
$ 1781.00 -
CHINA NBC-1050B Double drum Drop Tester
$ 1131.00 -
HUIDA HD-6004 Single wing Dropping Tester Encasement Tester 300~1500mm
$ 2620.00 -
CHINA NBC-5618B electric free Drop Tester, pneumatic Drop Tester 1.5 meters
$ 1363.00 -
YINUO YN-DLY-D Carton Dropping Tester (single wing) 1500mm 60kg
$ 2516.00
Introduction
The free drop test machine is suitable for free drop testing mobile phones, batteries, charger adapters, walkie-talkies, electronic dictionaries, apartment intercoms, CDs, MD MP3s, etc. Drop test. Comply with YD/T1539-2006 standard.
This machine is designed to evaluate the impact on product performance after customers may accidentally drop the product during experimental use. It is suitable for: mobile phones, PDAs, telephone electronic dictionaries, CDs, MP3s and other small consumer electronic products to maintain their original posture and accelerate drops. test.
Function: Vacuum adsorption of drops, settable drop height, automatic lifting, accurate impact location, with acceleration and speed measurement.
Factory NBC-5618 Phone Dropping TesterSpecifications
| LIST | VALUE |
|---|---|
| Multi-angle drop device | 0°、45°、90° |
| Drop height indication | 1cm |
| drop height | 300~2000mm |
| test load | 2kg |
| Bottom plate material | steel plate |
| Baseplate size | 500x600mm |
| Use air source | ≥0.5Mpa |
| Dimensions | 800*900*2200mm |
| Power | AC220V 50HZ 5A |
| Power | 60W |
| Weight | 50kg |
Factory NBC-5618 Phone Dropping Tester Packing list
host X1, manual X1, warranty card X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
