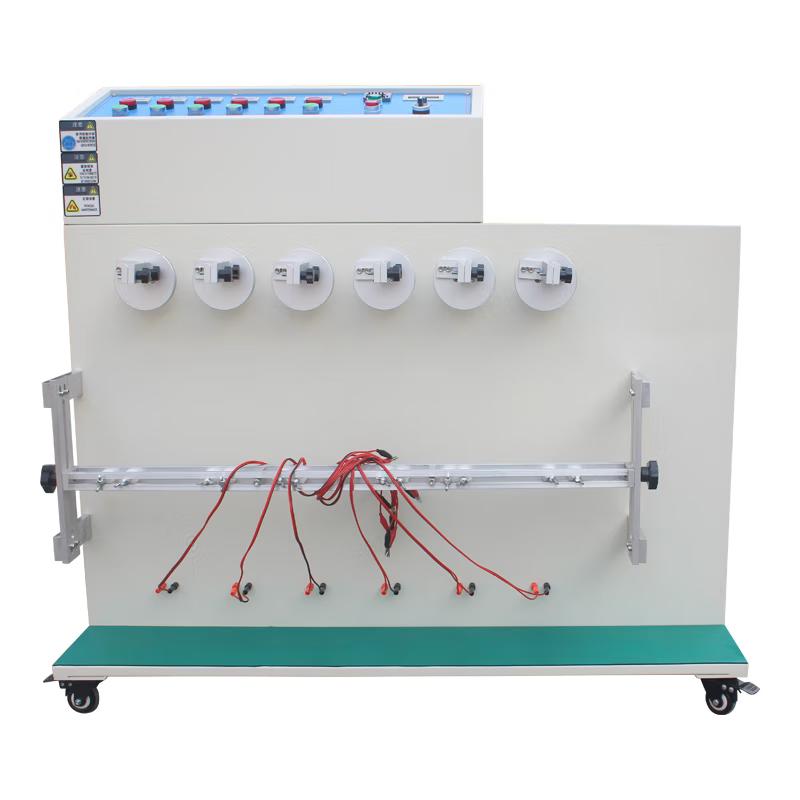

CHINA NBC-5025B 360 degree wire swing testing machine
With 6 test stations, experimental angle 0~ +/- 180 °, Test speed 5-60 times/min (knob speed regulation, LCD display), equipped with six sets of anti-skid, not easy to damage the sample special fixture,
Factory
NBC-5025B
-
HUXI HICE-4 4 degree electronic ice box
$ 580.00 -
JINGHUAYIQI LD-HMV-01 Sponge resilience Tester, soft material resilience Tester
$ 1426.00 -
RONGHUA 1810-B quartz double pure water distillation, laboratory prepative secondary distillation
$ 718.00 -
CHINA NBC-5025B 360 degree wire swing testing machine
$ 1396.00 -
HUITAO HT-201 Crushed Stone Impact Tester Automotive coating anti-rock Tester, high-end version
$ 9156.00
Introduction
This testing machine complies with the provisions of "General Safety Requirements for Flexible Cord Components and Power Cords" in relevant standards such as UL817. It is suitable for relevant manufacturers and quality inspection departments to conduct bending tests on power cords and DC cords.
This machine is specially designed to test the flexural strength of plug leads and cables; the speed uses a photoelectric sensor to collect the signal and transmit it to the digital display meter. The value can be read out by directly adjusting the stepless speed regulator.
Test method: The test method is to fix the sample on the fixture, add a certain load, and swing the fixture left and right. After a certain number of times, check its disconnection rate, or when it cannot be powered on, check its total number of counts, and you can stop working
Factory NBC-5025B 360 degree wire swing testing machineSpecifications
| LIST | VALUE |
|---|---|
| test station | Six (working simultaneously) |
| test angle | 0- +/- 180 ° (scale dial plus indicator, manually adjustable) |
| Odd folding angle display and adjustment | Pointer indicator scale dial, manual adjustment of eccentric shaft |
| Test speed | 5-60 times/min (knob speed regulation, LCD display) |
| Total Counter of blue and white times | 0-999999 times (can be preset, automatically stop when the number of times is reached) |
| Bending conduction Counter | 0-999999 times (the conduction is automatically counted separately, one of them is disconnected, and the counting is automatically stopped) |
| Hook Weight | Six each of 50/100/200/300/500g |
| Hand tip test fixture | Six sets of non-slip, not easy to damage the sample special fixture |
| Test fixing rod | Can be adjusted up and down, fixed at the lower end of the product, the test is more in line with the standard |
| Machine size | 120Lx600Wx800H（mm） |
| Machine Weight | 100kg |
| Power | AC220V, 50HZ |
Factory NBC-5025B 360 degree wire swing testing machine Packing list
host X1, manual X1, warranty card X1, certificate X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
