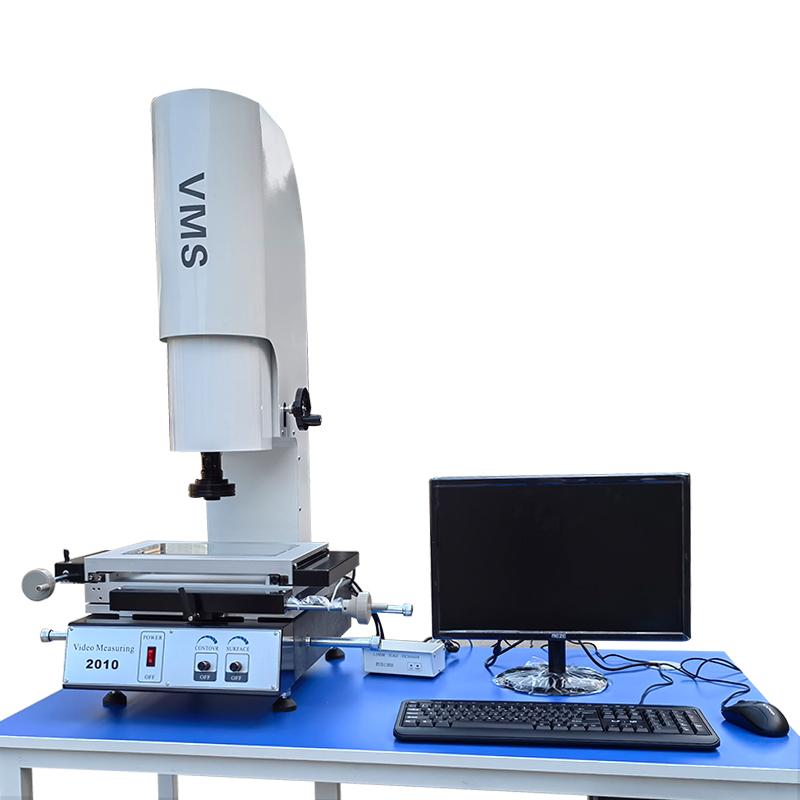

CHINA NBC-YX-3020ZD automatic imaging instrument, workpiece weld inspection 300 × 200mm

Introduction

The two-dimensional image measuring instrument uses a digital measurement method to convert the shape of the measured object into a computer through image acquisition, and uses professional measurement software to measure the size of the object, while traditional projectors amplify the object through optical projection for measurement;

The two-dimensional image measuring instrument is mainly used for the detection, positioning, evaluation and diagnosis of various defects inside the workpiece (welding seams, cracks, inclusions, pores, etc.). It can be used in laboratories and engineering sites . Widely used in boilers, pressure vessels, aerospace, aviation, electric power, petroleum, chemical industry, offshore oil, pipelines, military industry, shipbuilding, automobiles, machinery manufacturing, metallurgy, metal processing industry, steel structures, railway transportation, nuclear power, universities, etc. industry.

Features

1. Strive for high-precision measurement in the optical field and independently develop all-marble structural products (base, columns, and worktables are all made of high-precision "Jinan Qing" Chuntian

Natural granite, two-layer design, precision-grade V-shaped guide rails, giving the product extremely high stability and rigidity). This granite has stable chemical properties, is not easily weathered, can resist the erosion of acids, alkalis and corrosive gases, and will not deform. ,stainless;

2. Strengthen product structure and appearance design, pay attention to the practicality and stability of product software functions, provide profit promotions and feedback profits to friends from all walks of life, and strive for cost-effective products to make your choice more confident!

3. Three-axis friction precision transmission is sensitive and reliable, has no backlash and can move quickly;

4. High-quality optical system and high-resolution CCD can ensure clear measurement pictures;

5. Adjustable LED ring-shaped surface light source to achieve large-angle lighting and avoid heat deformation of the workpiece;

6. A digital element measurement and data processing system is composed of a precision optical ruler and a data processor.

Imager host X1, dedicated industrial control computer X1, genuine software X2, axis grating ruler X1, linear guide X1, freeze frame fixed lens X1, high definition CCD camera X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
