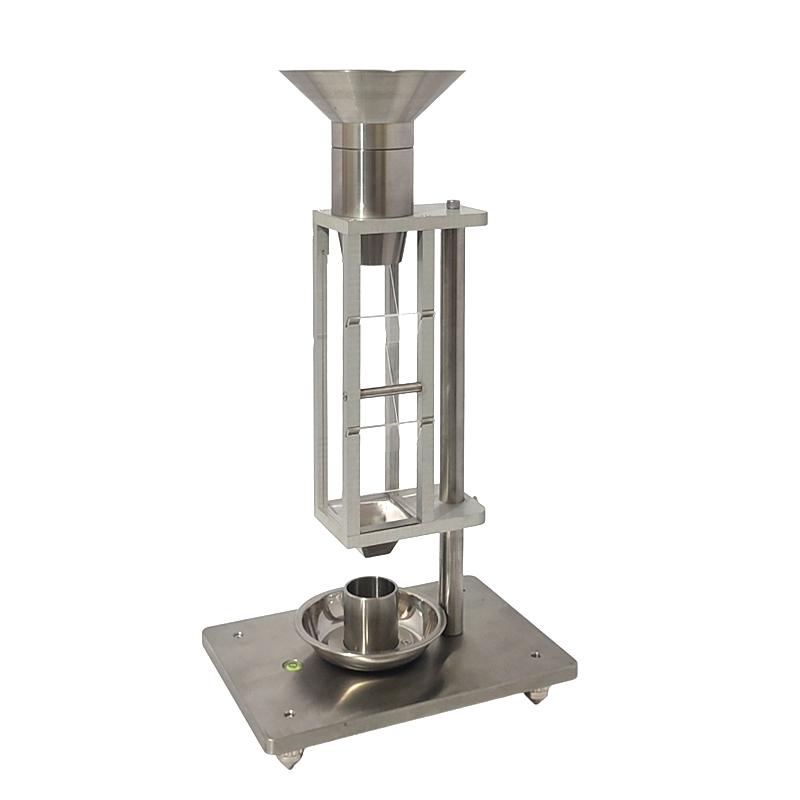

FRARIV F100 Scott Volumeter, Powder Loose Bulk Density Test

Application

The F100 Scott capacity meter is designed and produced in accordance with the national standards of the People's Republic of CHINA GB/T 1479.2-2011. This device is suitable for measuring the bulk density of powder using the Scott volumetric method.

Principle

Measure the mass of powder that completely fills a known measuring cup in its loose state. The powder is loosely packed by passing the powder through a series of sloping baffles in a Scott volumetric gauge that fills the cup. Bulk density is expressed as the ratio of mass to volume.

Instrument composition

1. Funnel

It is assembled with two conical funnels, large and small, and a metal screen with a hole diameter of 1.18mm is placed in the middle.

2. Baffle box

The baffle box has a square section and contains four baffles. They are fixed on the sides of the box with the help of grooves and can be easily removed for cleaning. The purpose of installing baffles is to make the powder fall on each baffle in turn, thereby destroying the drop and thus slowing down the flow of powder. It is important that no powder can pass between the upper edge of the baffle and the box, so that the lower edge of the baffle should overlap slightly between strips when viewed from a vertical plane.

3. Bracket and vibration-free horizontal base

Used to support measuring cups, baffle boxes and funnels.

4. Balance (optional)

The balance must have sufficient range and weigh accurately to ±0.05 g.

5. Measuring cup

Stainless steel (304 material) measuring cup with a volume of 25mL ± 0.05mL and an inner diameter of 30mm ± 1mm.

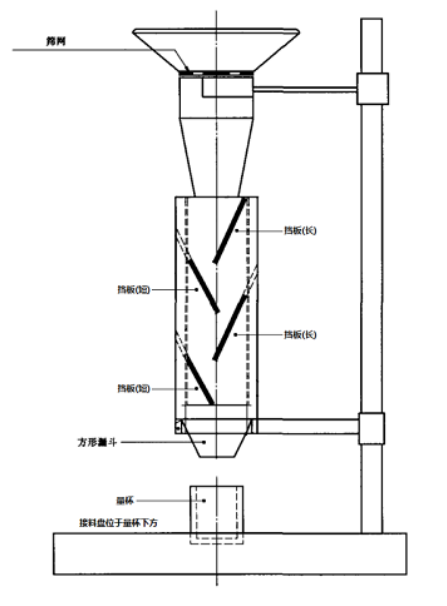

Instrument structure diagram

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
