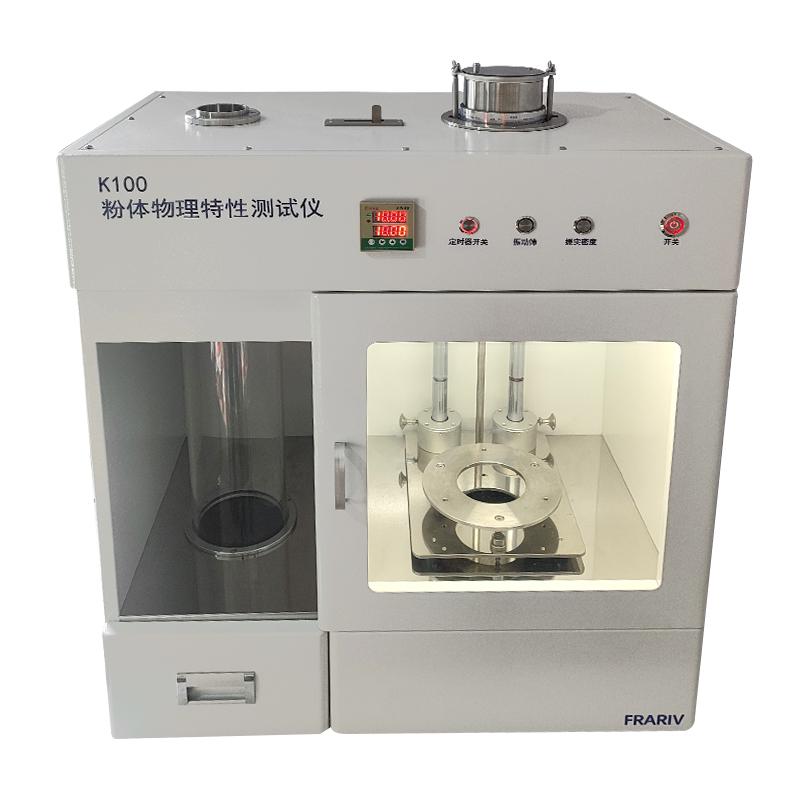

FRARIV K100 basic powder physical property Tester, powder physical property Tester
Can test Carr Angle of Repose, Carr Angle of Fall, Loose Bulk Density, Tapped Density, Carr Cohesion, Carr Uniformity, Carr Dispersibility, Voidage items, Manual Measurement angle.
FRARIV
K100
K110
-
Density balance Tianma MDTP1204 120g/0.0001g
$ 1109.00 -
XIONGFA XF-120FM Powder Density Meter Measurement range 0.001~ 120g
$ 459.00 -
Shangtian Jingyi YM2003J density Electronic Balance Liquid density Tester 200g/0.001g
$ 901.00 -
XIONGFA XF-120GY Solid-liquid dual-use Density Meter measurement range 0.0001~ 120g
$ 915.00 -
XIONGFA MDJ-900A Solid Density Meter measurement range 0.01g~ 900g
$ 377.00
Support standards
American Society for Materials Standard ASTM D6393 - 14 Standard Test Method for Bulk Solids Characterization by Carr Indices;
Chinese National Standard GB/T 31057.2 -2008 Physical Property Testing of Granular Materials Part 2: Measurement of Tap Density;
Chinese National Standard GB/T 31057.3 -2008 Physical Property Testing of Granular Materials Part 3: Measurement of Flowability Index;
Chinese National Standard GB/T 5162 -2006/ISO 3953:1993 Determination of tap density of metal powder;
Chinese National Standard GB/T 1482 -2010 Standard Funnel Method for Determination of Fluidity of Metal Powders (Hall Flow Meter);
Chinese National Standard GB/T 1479.1 -2010 Determination of Bulk Density of Metal Powders Part 1: Funnel Method;
Chinese National Standard GB/T 16913 -2008 4.5 Dust physical properties test method Determination of angle of repose (injection limited bottom method)
Supported test projects
Carr Angle of Repose
Carr Angle of Fall
Loose Bulk Density
Tapped Density
Carr Cohesion
Carr Uniformity
Carr Angle of Spatula
Carr Dispersibility
Voidage
Supported computing projects
Carr Angle of Difference
Carr Compressibility
Flowability
Floodability
FRARIV K100 Powder physical property TesterSpecifications
| LIST | VALUE |
|---|---|
| Angle measurement | Protractor, manual measurement |
| Tap Frequency | 300 rpm, fixed |
| vibration amplitude | 3Mm, 14mm (optional) |
| Repeatability Error | ≤3% |
| size | 680mm*380mm*750mm |
| Power | AC220V±10V 50Hz |
| Vibration sieve specification (aperture) | 45μm，75μm，150μm，250μm，355μm，1180μm |
FRARIV K100 Powder physical property Tester Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
