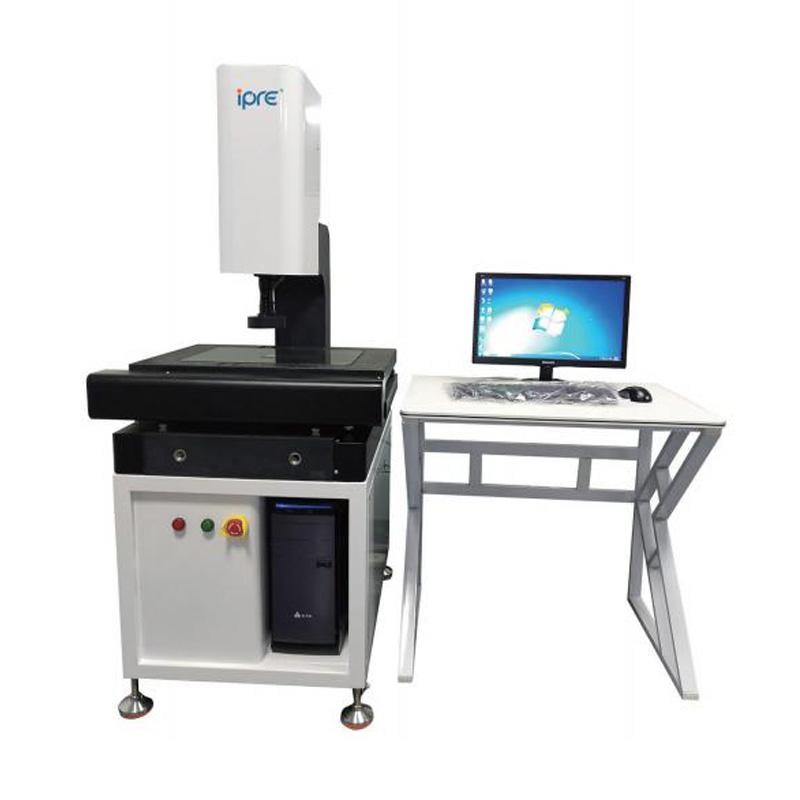

IPRE XY5040Q image Measurement Instrument, travel 500mm

Features

• The base, columns and workbench are made of grade 00 granite structure, which has strong rigidity and small deformation, thus ensuring stable accuracy;

• The three-axis imported precision-grade ball screw ensures the accurate positioning of the machine operation and the repeatability of the measurement during the measurement process, thus ensuring the stability of the machine;

• Programmable control of LED four-ring eight-zone annular surface light source + transmitted parallel light source to meet the lighting measurement requirements of various surfaces;

• Germany's COMST high-definition 1/3 industrial digital color camera enables clear observation and the software can easily capture the edge of the product, maximally meeting the measurement requirements of the product and greatly improving the accuracy of stable measurement of the machine.

Software features

Three-dimensional measurement: Measure height, width, length, angle between two sides, apex angle of a cone, diameter of a cylinder, chamfer, straightness, flatness, roundness, cylindricity, verticality, parallelism, inclination, etc.;

Auto focus; automatically find the Z position when it is clearest;

Command line: You can directly input coordinate information from the command line to generate points, straight lines, circles, arcs, etc. to meet special needs. Line position tolerance: roundness, straightness, parallelism, verticality, concentricity, etc.;

Annotation functions: radius annotation, diameter annotation, angle annotation, linear annotation, alignment annotation, text annotation, coordinate annotation;

Automatic measurement function: automatic straight line finding, multi-area automatic straight line finding, click circle selection, frame selection circle, multi-area automatic circle, and automatic arc.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
