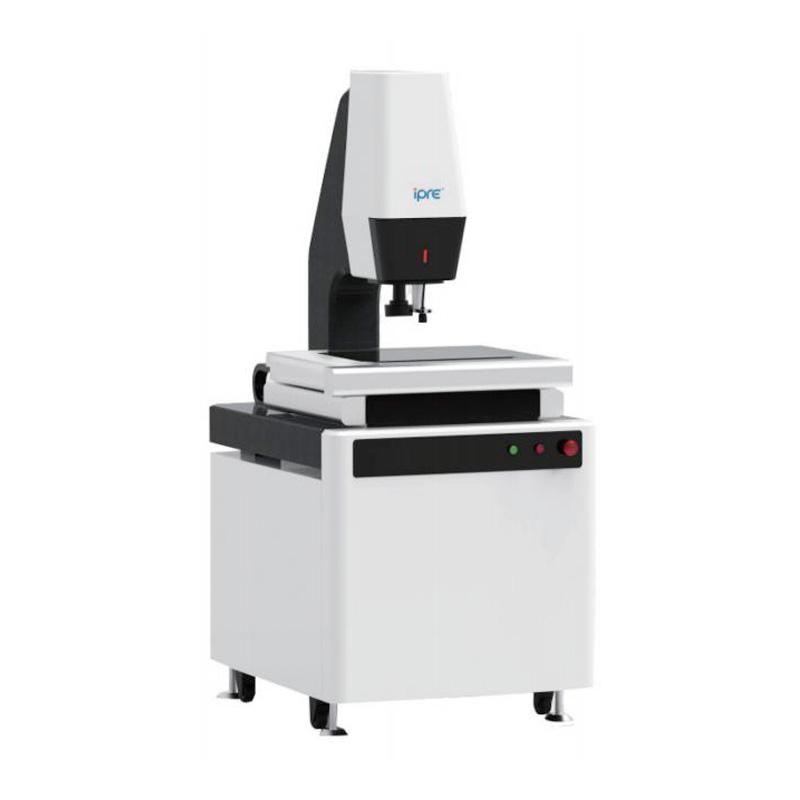

IPRE SC1008 One-button fast imager, measuring range 100mm

Features

1. Host

Automatic image registration function eliminates the need to position workpieces and fixtures, and products can be placed casually to achieve automatic identification and measurement;

Can identify multiple measurement workpieces at the same time, measure them, and output the results;

The image sensor uses a high-definition 20-megapixel CCD, and the matching Gige Gigabit Ethernet card (transmission rate: 1G/S) makes the image clear and the image quality exquisite;

It adopts a bilateral telecentric lens, equipped with parallel telecentric transmitted light (transmission system), programmable four-zone annular shadowless epilight (epi-illumination system), coaxial epilight and low-angle shadowless epilight (optional light source).

2. Software system

Programming is simple, the software is calibrated through surface compensation, the repeatability of measuring standard parts can reach 0.001mm, and the accuracy of repeated measurement products can be guaranteed to be <0.005mm;

The software has powerful measurement functions. In addition to basic line drawing, distance, angle, radius and diameter measurement, it also adds the highest point, intersection point, contour scanning, electronic caliper, area, contour, longest distance, shortest distance, center functions such as distance.

Software features

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
