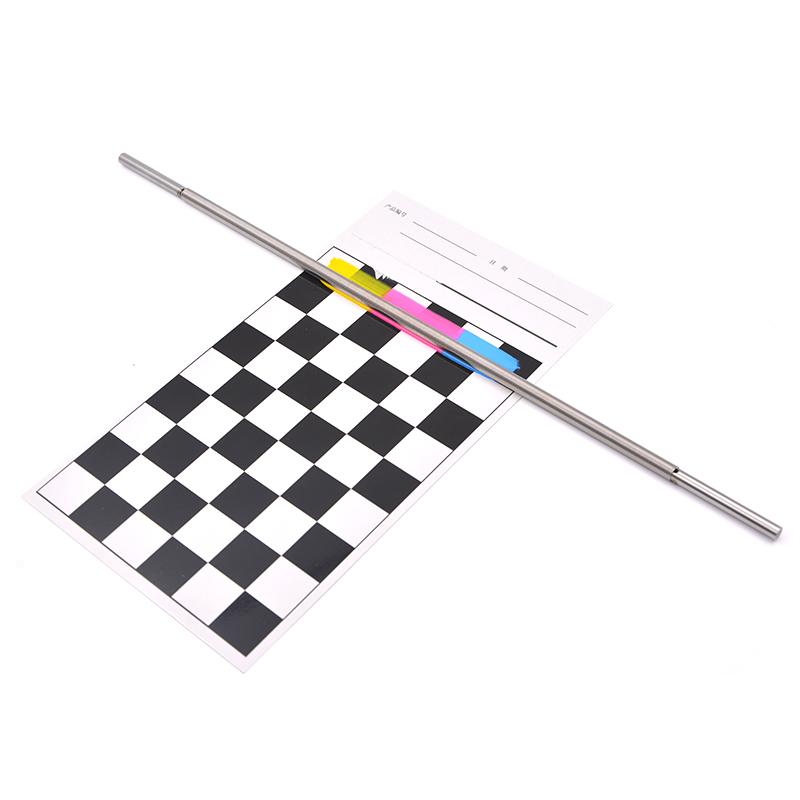

RDS 38 #1/4 "wire-wound Applicator rod film thickness 86.9μm Wire diameter 0.97mm

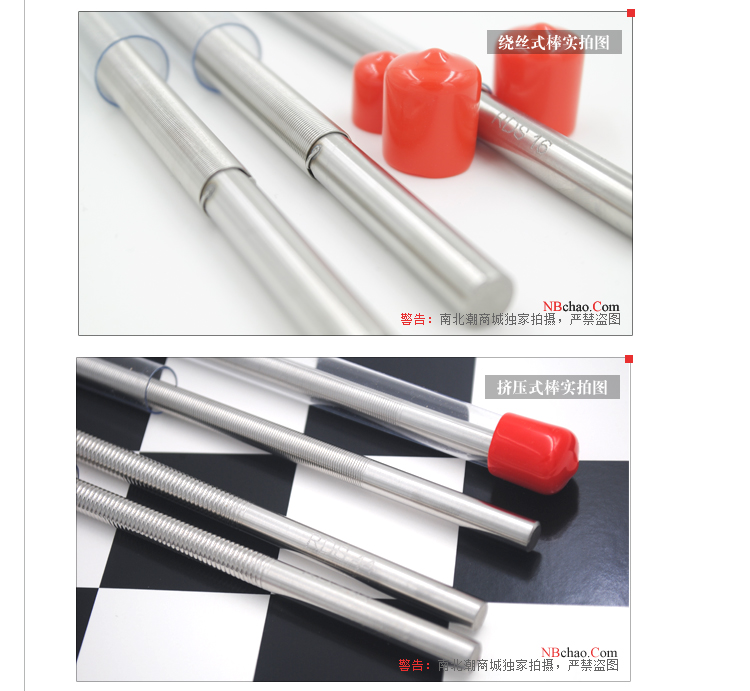

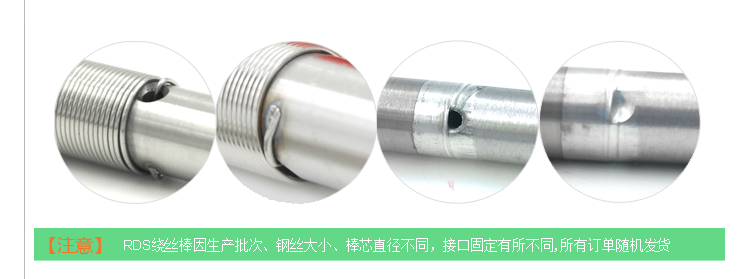

Applicator rod can film 86.9 μm, using winding process, Wire diameter 0.97mm, rod diameter 6.35mm, the main rod and steel wire are stainless steel.
Brand
SKU: NB004490
RDS
38# 1/4"
38# 3/8"
38# 3/8"
Price
$ 155.00
Promotion
Service
The delivery and service By NBchao.Com
VS
What else did others buy
Genuinegoods
38# 1/4"
Applicator rod 1/4 "
Applicator rod can film 86.9 μm, using winding process, Wire diameter 0.97mm, rod diameter 6.35mm, the main rod and steel wire are stainless steel.
 |  |  |

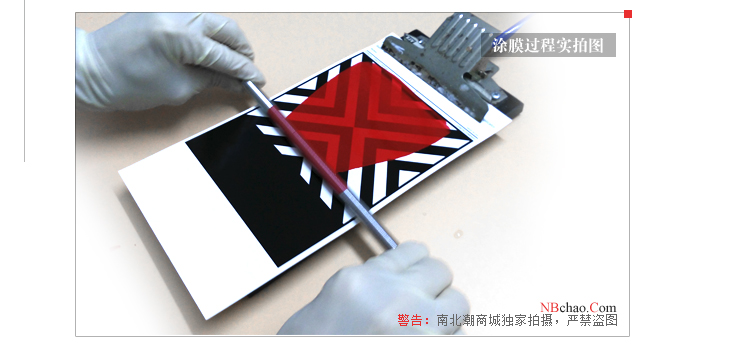

RDS38 wiper rod is used to apply 86.9 micron wet film. The product is made of 303 stainless steel. In terms of precision, RDS is based on 80 years of production experience and has been widely recognized by industry users. In addition, No. 38 RDS scraping rod is also widely used in resin and building materials industries.
Optional
 |
|
 |  |
Note: Click on the accessory picture to view Details.
VS

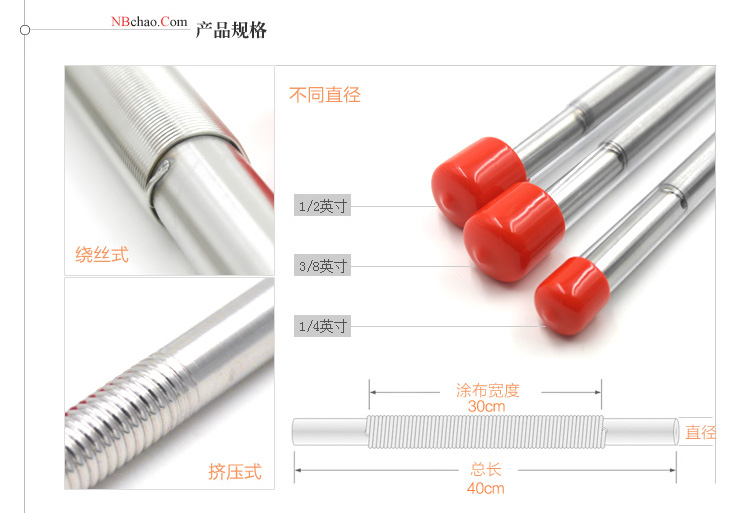

RDS 38# 1/4" Applicator rod 1/4 "Specifications
| LIST | VALUE |
|---|---|
| Production process | Wire-wound |
| WFT | 86.9µm |
| diameter | 6.35mm |
| Total length | 400mm |
| Application width | 300mm |
| Grip width | 50+50mm |
| material | stainless steel |
| Wire diameter | 0.97mm |
RDS 38# 1/4" Applicator rod 1/4 " Packing list
Stainless Steel Rod X1 Transparent Encasement Hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
FAQ
[Q]
Is the RDS 1/4 "Series Spreader formed?
[A]
Hello, yes.
[Q]
Do you support customization? Such as wet film thickness and length?
[A]
Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
[Q]
Can this film scraper be applied to ASTMD 4147?
[A]
OK
