Introduction

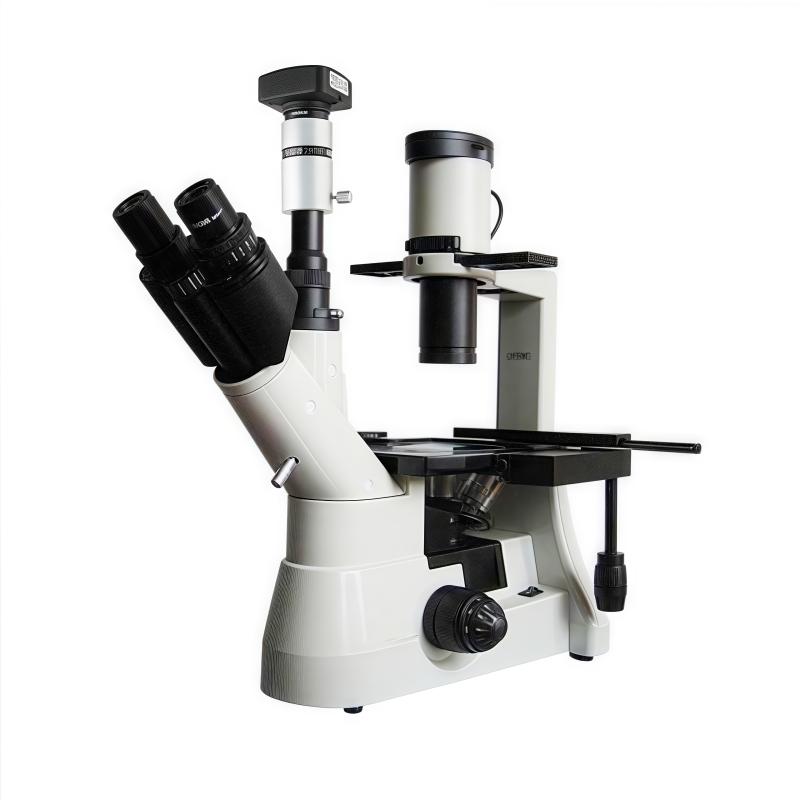

The BM-37XCD computerized inverted biological microscope has the characteristics of microscopic observation in culture bottles or petri dishes. The instrument is equipped with a long working distance objective lens, a long working distance plan achromatic condenser, a wide-angle eyepiece, and a phase contrast device. It can observe transparent living bodies without staining, and is especially suitable for microscopic research on living cells and tissues, fluids, sediments, etc. It can be used by scientific research, universities, medical, epidemic prevention, agriculture and animal husbandry and other departments.
This instrument uses an electric light source with continuously adjustable brightness. The chain-type lens barrel is tilted at 45° and can rotate freely 360 degrees.
Standard configuration
eyepiece:
| type | gain | focal length | Field of view diameter |
| wide angle eyepiece | 10X | 25mm | Ï22mm |
| Plan eyepiece | 16X | 15.6mm | Ï20mm |
Objective lens:
| Objective type | Magnification | numerical aperture | working distance | Cover glass thickness | Remark |
| Infinity long working distance plan achromatic objectives | 4X | 0.1 | 25mm | 1.2mm | |
| 40X | 0.6 | 3.3mm | 1.2mm | ||
| Infinity long working distance plan phase contrast objective | 10X | 0.25 | 8.1mm | ââ | |
| 20X | 0.4 | 4.8mm | 1.2mm | ||
| 40X | Shop |
SHSGBM BM-37XCD Computer Inverted Biological MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Mechanical barrel length | Infinity system (∞) |
| magnification | 40X-640X |
| Stage size | Size: 242mm × 172mm; Glass sheet: φ 110mm; Moving range: 120mm × 75mm |
| pupil distance | 50-75mm |
| Focusing device | Coarse and fretting coaxial focusing, using rack and pinion transmission mechanism, fretting grid value: 0.002mm |
| condenser | Long working distance condenser with variable light bar, working distance: 55mm |
| lighting system | 12V20W halogen lamp, adjustable luminance |
| Computer imagery system: | (1) Digital CMOS camera, 5 million pixels, with geometric measurement analysis software; (2) MCL-Z adapter mirror; (3) Computer purchase |
SHSGBM BM-37XCD Computer Inverted Biological Microscope Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
