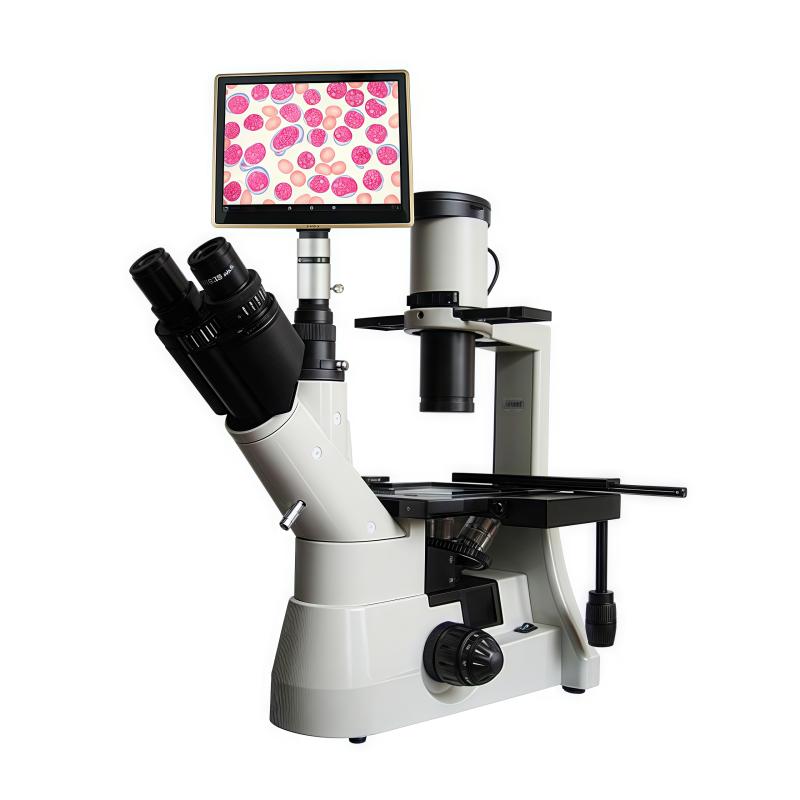

Varnishing BM-37XCP Tablet Inverted Biological Microscope
Equipped with a long working distance objective lens and a long working distance flat-field color difference condenser, wide-angle eyepiece, the luminance can be continuously adjusted, hinged lens barrel, 45 ° tilt, 360 degrees of free rotation.
SHSGBM-
TEELEN XTL-302 Brightfield Upright Metallurgical Microscopy
Login -
TEELEN TL3200A Research Grade Binocular Biological Microscope
Login -
Varnishing BM-59XC Trinocular Polarizing Microscope Trinocular Microscope
$ 1944.00 -
VARNISING XSP-BM-2CBAP Video Microscope with 9-inch large screen display
$ 689.00 -
Anyty 3R-WM461WIFI Digital Microscope 10~600 times
$ 996.00
Introduction
The BM-37XCP tablet-type inverted biological microscope has the characteristics of microscopic observation in culture bottles or petri dishes. The instrument is equipped with a long working distance objective lens, a long working distance plan achromatic condenser, a wide-angle eyepiece, and is equipped with phase contrast The device can observe transparent living bodies without staining. It is especially suitable for microscopic research on living cells and tissues, fluids, sediments, etc. It can be used by scientific research, universities, medical, epidemic prevention, agriculture and animal husbandry and other departments.
This instrument uses an electric light source with continuously adjustable brightness. The hinged lens barrel is tilted at 45° and can rotate freely 360 degrees.
Standard configuration
eyepiece:
| type | gain | focal length | Field of view diameter |
| wide angle eyepiece | 10X | 25mm | Ï22mm |
| Plan eyepiece | 16X | 15.6mm | Ï20mm |
Objective lens:
| Objective type | Magnification | numerical aperture | working distance | Cover glass thickness | Remark |
| Infinity long working distance plan achromatic objectives | 4X | 0.1 | 25mm | 1.2mm | |
| 40X | 0.6 | 3.3mm | 1.2mm | ||
| Infinity long working distance plan phase contrast objective | 10X | 0.25 | 8.1mm | ââ | |
| 20X | 0.4 | 4.8mm | 1.2mm | ||
| 40X | Shop |
SHSGBM BM-37XCP Tablet Computer Inverted Biological MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Mechanical barrel length | Infinity system (∞) |
| magnification | 40X-640X |
| Stage size | Size: 242mm × 172mm; Glass sheet: φ 110mm; Moving range: 120mm × 75mm |
| pupil distance | 50-75mm |
| Focusing device | Coarse and fretting coaxial focusing, using rack and pinion transmission mechanism, fretting grid value: 0.002mm |
| condenser | Long working distance condenser with variable light bar, working distance: 75mm |
| lighting system | 12V20W halogen lamp, adjustable luminance |
| Computer imagery system: | 9.7-Inch large-screen Android system tablet, MCL-Z adapter mirror |
SHSGBM BM-37XCP Tablet Computer Inverted Biological Microscope Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
