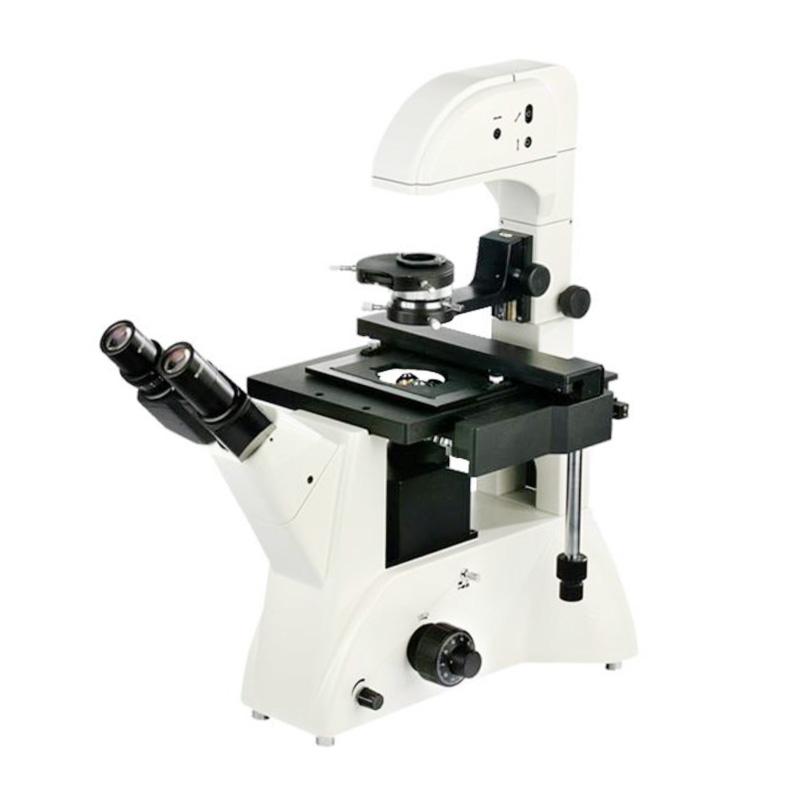

Varnishing BM-37XD Inverted Biological Microscope
Equipped with a long working distance flat-field objective and a large-field eyepiece, the compact and stable high-rigidity main body fully reflects the anti-vibration requirements of microscopic operation.
SHSGBMIntroduction
The BM-37XD inverted biological microscope adopts an excellent infinity optical system. Equipped with a long working distance plan objective lens and a wide field of view eyepiece, the compact and stable high-rigidity body fully reflects the anti-vibration requirements of microscopic operations. The rotating swing-in and swing-out focusing system enables contamination-free observation of cultured cells in tall petri dishes or cylindrical flasks. Commonly used designs that meet ergonomic requirements make operation more convenient and comfortable, and the space is wider. This instrument is suitable for microscopic observation of cell tissues, transparent liquid tissues, and dynamic microscopic observation of cultured tissues in culture dishes. It can be used in scientific research institutes, colleges and universities, medical and health, inspection and quarantine, agriculture, animal husbandry, dairy and other departments.
Standard configuration
eyepiece:
| type | gain | focal length | Field of view diameter | Remark |
| Plan eyepiece | 10X | 25mm | Ï22mm | |
| reticle eyepiece | 10X | 25mm | Ï20mm | Optional (0.1mm/grid) |
Objective lens:
| Objective type | Magnification | numerical aperture | working distance | Cover glass thickness | Remark |
| Infinity long working distance plan achromatic objectives | 10X | 0.25 | 19.40mm | 1.2mm | |
| 20X | 0.4 | 8mm | 1.2mm | ||
| 40X | 0.6 | 3.5mm | 1.2mm | ||
| Infinity long working distance plan phase contrast objective | 10X | 0.25 | 4.3mm | 1.2mm | |
| 20X | 0.4 | 8mm | 1.2mm | Shop | |
| 40X | 0.65 | 3.5mm | 1.2mm | Shop |
SHSGBM BM-37XD Inverted Biological MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Mechanical barrel length | Infinity system (∞) |
| magnification | 100X-400X |
| Stage size | Size: 227mm × 208mm; Glass sheet: φ 118mm; Movement range: 114mm × 77mm |
| pupil distance | 50-75Mm, 45 ° tilted eyepiece barrel |
| Focusing device | Coarse and fretting coaxial focusing, using rack and pinion transmission mechanism, fretting grid value: 0.002mm |
| condenser | Extra long working distance condenser, working distance 55mm, with phase contrast device |
| Color filter | Frosted Glass, Blue and Green Color Filters |
| lighting system | 6V30W halogen lamp, adjustable luminance and spatial position |
SHSGBM BM-37XD Inverted Biological Microscope Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
