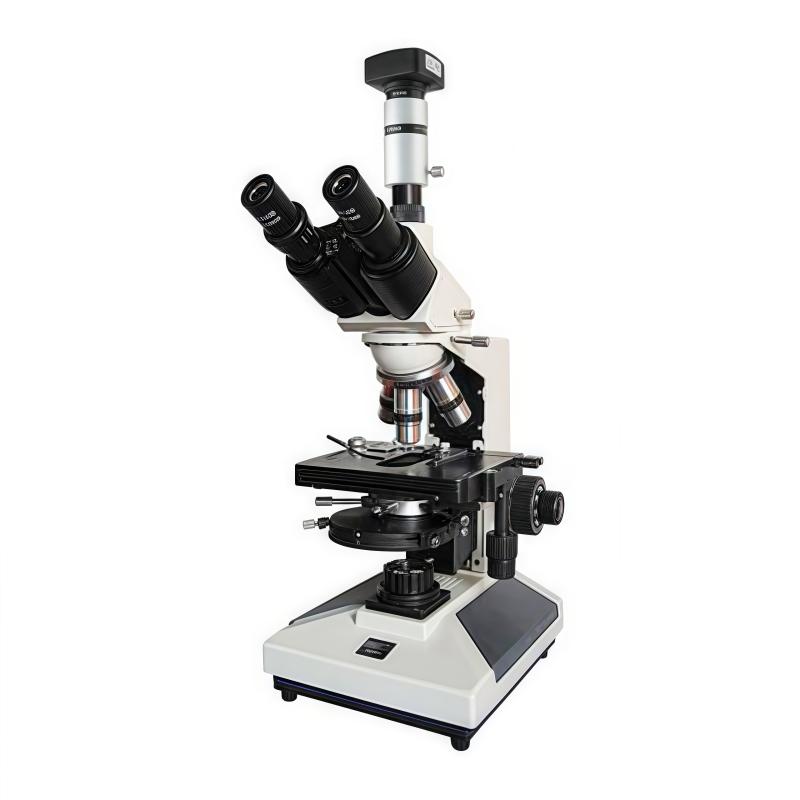

        SHSGBM BM-PHD Computer Phase Contrast Microscope

        Varnishing BM-PHD Computer Phase Contrast Microscope

        Following the principle of microscopic Optical inspection imaging and the theory of phase contrast microscopy technology, using electric light source, lighting can continuously adjust the luminance, hinged barrel 30 ° tilt, 360 degrees of free rotation.

        Brand
        SKU: NB044916
        China SHSGBM
        Model
        Stock
        Loading…
        Price
        $ 2256.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          SHSGBMLOGO

          SHSGBM shopSE

          Information
          Datasheet RFQ Contract
          What else did others buy
          Genuinegoods

          • SHSGBM BM-PHD Computer Phase Contrast MicroscopeOverview

          • Specifications
          • Comments
          • FAQs
          BM-PHD
          Computer Phase Contrast Microscope
          • Varnishing BM-PHD Computer Phase Contrast Microscope
          Following the principle of microscopic Optical inspection imaging and the theory of phase contrast microscopy technology, using electric light source, lighting can continuously adjust the luminance, hinged barrel 30 ° tilt, 360 degrees of free rotation.

          Introduction

          Phase contrast microscopy is developed based on the principles of microscopic optical imaging and the theory of phase contrast microscopy technology. It is suitable for observation and research of low-contrast, non-stained living sample specimens in cytology, bacteriology, fresh blood specimens, aquatic plankton, etc.

          The BM-PHD computerized phase contrast microscope uses an electric light source, and the brightness of the illumination can be continuously adjusted. The hinged lens barrel is tilted at 30° and can be freely rotated 360 degrees.

          Standard configuration

          eyepiece:

          typegainVisual field diameter
          eyepiece10Xφ18mm
          16Xφ11mm

          Objective lens:

          typegainnumerical apertureworking distance
          achromatic
          objective lens          		4X0.1NA37.5mm
          10X0.25NA7.31mm
          40X0.65NA0.63mm
          100X (oil)1.25NA0.18mm
          phase contrast objective10X0.25NA7.31mm
          40X0.65NA0.63mm
          100X (oil)1.25NA0.18mm


          VS

          SHSGBM BM-PHD Computer Phase Contrast MicroscopeSpecifications

          LIST VALUE
          Mechanical barrel length 160mm
          magnification 40X-1600X
          Stage size Mobile platform 160 × 140mm Moving range: 80 × 50mm, cursor: 0.1mm
          pupil distance 55-75mm
          Focusing device 30Mm coarse fretting focusing coaxial mechanism fine-tuning grid value 0.002mm
          condenser N.A.1.25 Adjustable medium Abbe condenser with variable light bar, phase contrast condenser with variable light bar
          Color filter Blue, yellow, green
          Light source Transmission lighting: halogen lamp 6V20W, AC85V-230V luminance adjustable
          Computer imagery system (1) Digital CMOS camera, 5 million pixels. With geometric measurement analysis software. The software for point, line, circle and arc, straightness, roundness, area and other measurements; (2) MCL-Z adapter mirror; (3) computer self-purchased

          SHSGBM BM-PHD Computer Phase Contrast Microscope Packing list

          host X1, manual X1, certificate X1, warranty card X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
