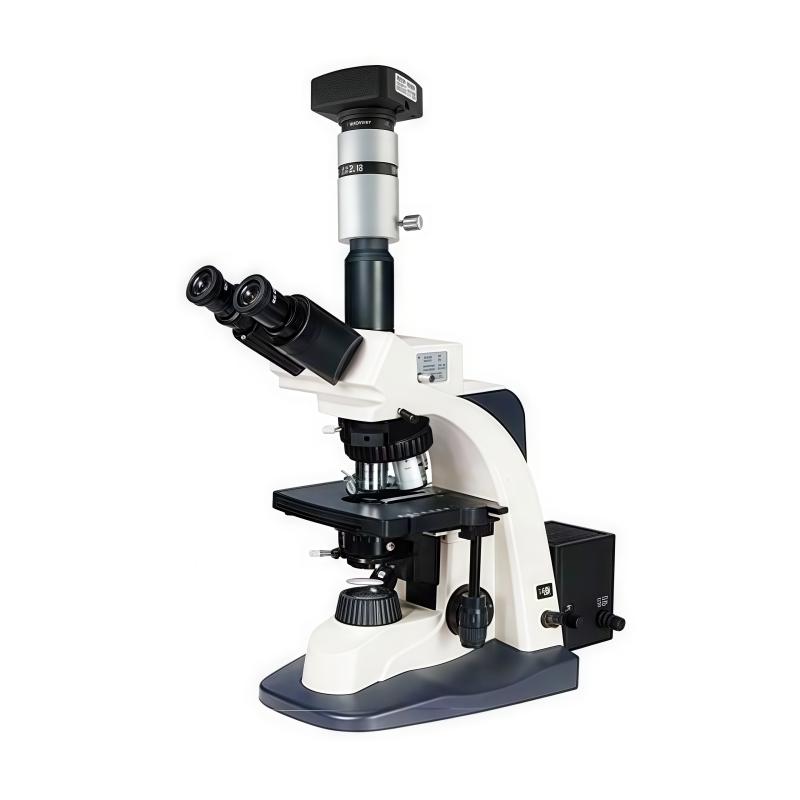

SHSGBM BM-SG10D Computer Research Biological Microscope

VARNISING BM-SG10D Computer Research Microscope

Adopting a semi-canceled color difference infinite flat-field objective lens, it has strong expansibility and can be equipped with auxiliary equipment such as vertical lighting device and fluorescent device.

Brand

SKU: NB044919

SHSGBM

Model

BM-SG10D

Price

$ 4375.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

SHSGBM shopSE

Information

Datasheet RFQ Contract

What else did others buy

Genuinegoods

SHSGBM BM-SG10D Computer Research Biological MicroscopeOverview
Specifications
Comments
FAQs

BM-SG10D

Computer Research Biological Microscope

Introduction

, BM-SG1OD computer biological microscope adopts semi-apochromatic infinity plan objective lens. It is highly expandable and can be equipped with auxiliary equipment such as vertical illumination device and fluorescence device. It is widely used in histology, biology, bacteriology, pathology, and medicinal chemistry. and other research fields, teaching work in colleges and universities, and clinical analysis and experiments in the medical field.

This instrument uses a light source, the illumination brightness can be continuously adjusted, and the trinocular chain-type observation tube is tilted at 30Â° and can rotate freely 360 degrees.

Standard configuration

eyepiece:

type	gain	Visual field diameter
High eye point wide field plan eyepiece	10X	Î¦23mm
High eye point wide field plan eyepiece	16X (optional)	Î¦17mm

Objective lens:

type	gain	numerical aperture	working distance
Semi-apochromatic infinity plan objective	4X	0.1NA	29.4mm
	10X	0.25NA	16mm
	20X	0.4NA	3mm
	40X(S)	0.65NA	0.63mm
	100X(S)Oil	1.25NA	0.35mm

SHSGBM BM-SG10D Computer Research Biological MicroscopeSpecifications

LIST	VALUE
Mechanical barrel length	Infinity system (∞)
magnification	40X-1000X
Objective lens converter	Six hole converter
tube lens	Focal length: f = 200mm
Stage size	Layer mobile platform 189 × 160mm, moving range 80 × 50mm
pupil distance	55-75mm
Focusing device	30Mm coarse fretting coaxial focusing with limit, coarse focusing tension locking device, fine-tuning grid value 0.002mm
condenser	N.A.1.25 Abbe condenser adjustable medium with variable light bar
Color filter	Blue, green, neutral
Light source	12V/50W halogen lamp, Kohler lighting, Light source adjustable
Computer imagery system	(1) Digital CMOS camera, 5 million pixels, with geometric measurement analysis software, the software for point, line, circle and arc, straightness, roundness, area and other measurements; (2) MCL-Z adapter mirror; (3) computer self-purchased

SHSGBM BM-SG10D Computer Research Biological Microscope Packing list

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
