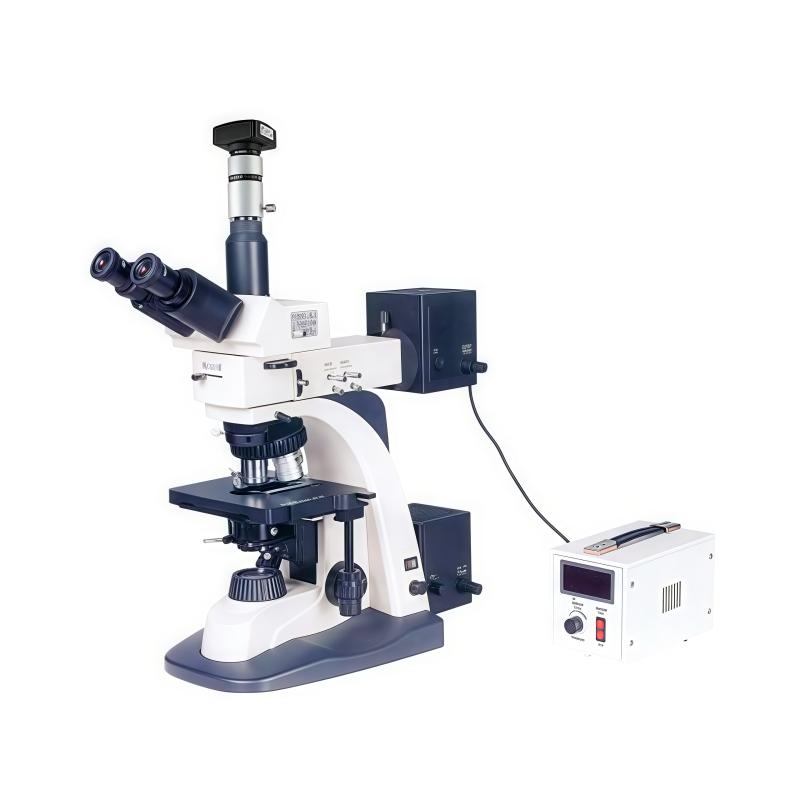

        SHSGBM BM-SG12D Computer Research Biological Microscope (Brightfield)

        VARNISING BM-SG12D Computer Research Microscope

        Adopt mechanical cylinder length infinity system (∞), converter five-hole converter, computer imagery system adopts digital CMOS camera, 5 million pixels, with geometric measurement analysis software, which can be used for point, line, circle and arc, straightness, roundness, area and other measurements.

        Brand
        SKU: NB044925
        China SHSGBM
        Stock
        Loading…
        Price
        $ 5936.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          SHSGBMLOGO

          SHSGBM shopSE

          Information
          Datasheet RFQ Contract
          What else did others buy
          Genuinegoods

          • SHSGBM BM-SG12D Computer Research Biological Microscope (Brightfield)Overview

          • Specifications
          • Comments
          • FAQs
          BM-SG12D
          Computer Research Biological Microscope (Brightfield)
          • VARNISING BM-SG12D Computer Research Microscope
          Adopt mechanical cylinder length infinity system (∞), converter five-hole converter, computer imagery system adopts digital CMOS camera, 5 million pixels, with geometric measurement analysis software, which can be used for point, line, circle and arc, straightness, roundness, area and other measurements.

          Introduction

          BM-SG12D computerized transmission and reflection microscope (bright field) adopts two types of illumination: reflection and transmission. It can perform polarized observation under reflection and bright field observation under transmitted light. The stable and high-quality optical system makes the imaging clearer, with better contrast, and is ergonomically designed. It is widely used in research fields such as histology, biology, bacteriology, pathology, medicinal chemistry, and in universities and colleges. Teaching work and clinical analysis and experiments in the medical field, etc.

          This instrument uses an electric light source with continuously adjustable brightness. It has a hinged lens barrel with a 30° tilt and 360-degree free rotation.

          Standard configuration

          eyepiece:

          typegainVisual field diameter
          eyepiece10Xφ25mm
          16Xφ17mm

          Objective lens:

          typegainnumerical aperture
          Infinity Plan Achromatic Objective4X0.1NA
          10X0.25NA
          20X0.40NA
          40X0.65NA
          100X (oil)1.25NA


          VS

          SHSGBM BM-SG12D Computer Research Biological Microscope (Brightfield)Specifications

          LIST VALUE
          magnification 40X-1600X
          Mechanical barrel length Infinity system (∞)
          converter Five hole converter
          platform Double-decked Mobile Platform; Platform size: 189mmx160mm; Movement range: 80mmx50mm
          Color filter Plug-in color filters (green, blue, neutral)
          condenser N.A.1.25 Abbe condenser with variable diaphragm and color filter
          Focus Coarse and fretting coaxial focusing, using rack and pinion transmission mechanism, fretting grid value 0.002mm
          Polarizing device The polarizer can rotate 360 degrees, and the polarizer and the polarizer can move the light path
          Light source (1) Transmission lighting: halogen lamp 12V/50W, AC85V-230V, luminance adjustable; (2) drop illumination: halogen lamp with aperture light bar and field of view light bar 12V/50W, AC85V-230V luminance adjustable
          Computer imagery system (1) Digital CMOS camera, 5 million pixels, with geometric measurement analysis software, the software for point, line, circle and arc, straightness, roundness, area and other measurements; (2) MCL-Z adapter mirror; (3) computer self-purchased
          buy Drop illumination: halogen lamp 12V100W, AC85V-230V, adjustable luminance

          SHSGBM BM-SG12D Computer Research Biological Microscope (Brightfield) Packing list

          host X1, manual X1, certificate X1, warranty card X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          Is the price listed on the website the final cost for overseas purchases?
          [A]
          No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
          [Q]
          What is the specific process for purchasing the product?
          [A]
          First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
          [Q]
          What should I do if the instrument I purchase needs repair?
          [A]
          After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
