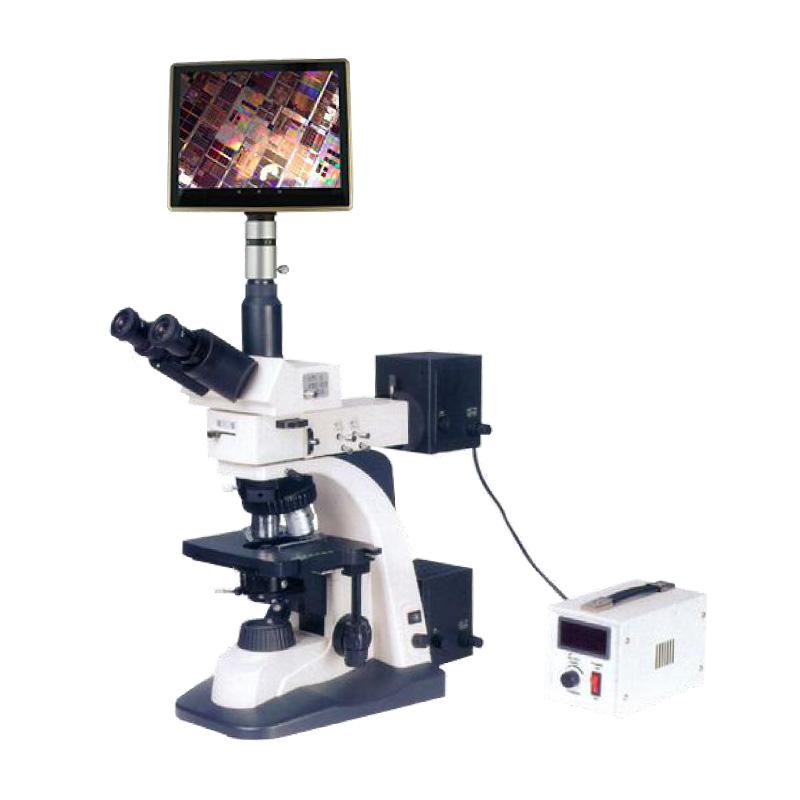

Varnishing BM-SG12P Tablet Microscope (Brightfield)
Magnification 40X-1600X, mechanical barrel length infinity system (∞), converter five-hole converter, using electric light source, luminance can be continuously adjusted, hinged barrel, 30 ° tilt, 360 degrees free rotation.
SHSGBM
BM-SG12P
-
VARNISING BM-SG15D Computer Research Biological Microscope with 12 million Pixel CMOS Camera
$ 11217.00 -
TEELEN XP-200 Monocular Simple Polarizing Microscope
Login -
TEELEN XTL-12B Inverted Metallurgical Microscopy
Login -
TEELEN 4XC Trinocular Inverted Metallurgical Microscopy
Login -
TEELEN TL5000 Integrated LCD Digital Microscope
Login
Introduction
The BM-SG12P tablet-type transmission and reflection microscope (bright field) adopts two types of illumination: reflection and transmission. It can perform polarized observation under reflection and bright field observation under transmitted light. The stable and high-quality optical system makes the imaging clearer, with better contrast, and is ergonomically designed. It is widely used in research fields such as histology, biology, bacteriology, pathology, medicinal chemistry, and in universities and colleges. Teaching work and clinical analysis and experiments in the medical field, etc.
This instrument uses an electric light source with continuously adjustable brightness. It has a hinged lens barrel with a 30° tilt and 360-degree free rotation.
Standard configuration
eyepiece:
| type | gain | Visual field diameter |
| eyepiece | 10X | Ï25mm |
| 16X | Ï17mm |
Objective lens:
| type | gain | numerical aperture |
| Infinity Plan Achromatic Objective | 4X | 0.1NA |
| 10X | 0.25NA | |
| 20X | 0.40NA | |
| 40X | 0.65NA | |
| 100X (oil) | 1.25NA |
SHSGBM BM-SG12P Tablet Research Biological Microscope (Brightfield)Specifications
| LIST | VALUE |
|---|---|
| magnification | 40X-1600X |
| Mechanical barrel length | Infinity system (∞) |
| converter | Five hole converter |
| platform | Double-decked Mobile Platform; Platform size: 189mmx160mm; Movement range: 80mmx50mm |
| Color filter | Plug-in color filters (green, blue, neutral) |
| condenser | N.A.1.25 Abbe condenser with variable diaphragm and color filter |
| Focus | Coarse and fretting coaxial focusing, using rack and pinion transmission mechanism, fretting grid value 0.002mm |
| Polarizing device | The polarizer can rotate 360 degrees, and the polarizer and the polarizer can move the light path |
| Light source | (1) Transmission lighting: halogen lamp 12V/50W, AC85V-230V, luminance adjustable; (2) drop illumination: halogen lamp with aperture light bar and field of view light bar 12V/50W, AC85V-230V luminance adjustable |
| Imagery system | 9.7-Inch large-screen Android system tablet, MCL-Z adapter mirror |
| buy | Drop illumination: halogen lamp 12V100W, AC85V-230V, adjustable luminance |
SHSGBM BM-SG12P Tablet Research Biological Microscope (Brightfield) Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
