        Home> Microscope> SHSGBM> SHSGBM BM-SG15 Research Biological Microscope

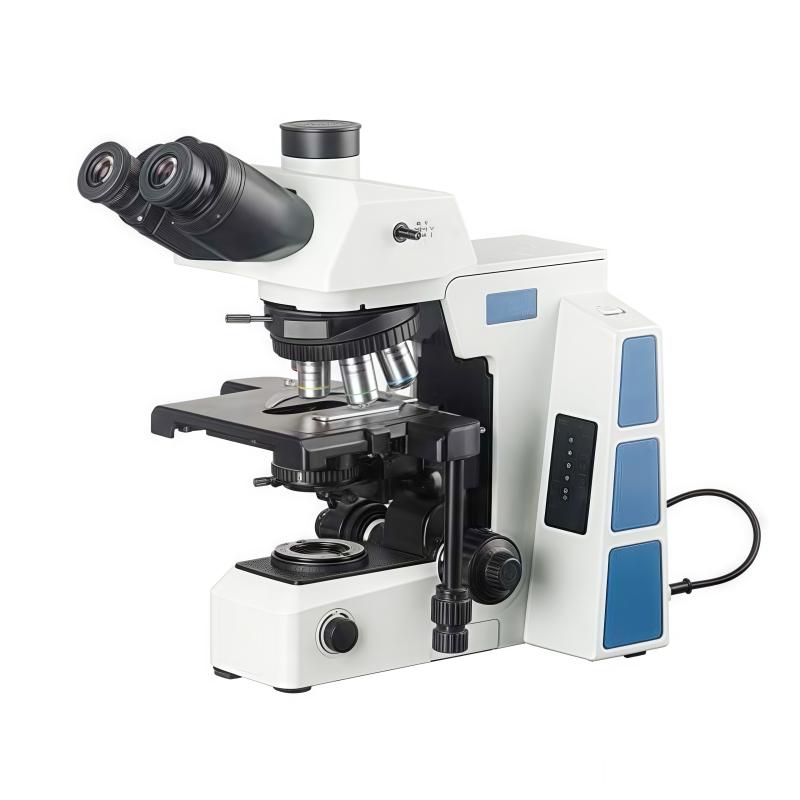

        SHSGBM BM-SG15 Research Biological Microscope

        VARNISING BM-SG15 Research Microscope Magnification 40X-1000X

        Mechanical barrel length infinite system ∞, objective lens converter six-hole converter (with DIC slot, with luminance memory function), using electric light source, luminance can be continuously adjusted, hinged barrel, 30 ° tilt, 360 degree free rotation.

        Brand
        SKU: NB044927
        China SHSGBM
        Model
        Stock
        Loading…
        Price
        $ 10051.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          SHSGBMLOGO

          SHSGBM shopSE

          Information
          Datasheet RFQ Contract
          What else did others buy
          Genuinegoods

          • SHSGBM BM-SG15 Research Biological MicroscopeOverview

          • Specifications
          • Comments
          • FAQs
          BM-SG15
          Research Biological Microscope
          • VARNISING BM-SG15 Research Microscope Magnification 40X-1000X
          Mechanical barrel length infinite system ∞, objective lens converter six-hole converter (with DIC slot, with luminance memory function), using electric light source, luminance can be continuously adjusted, hinged barrel, 30 ° tilt, 360 degree free rotation.

          Introduction

          BM-SG15 research biological microscope adopts infinity optical technology, the system with modular functional combination, high-definition optical images, simple operating mechanism, easy to achieve brightfield, fluorescence, phase contrast, polarization and other professional observation and diagnostic analysis, fully meet the needs of users in scientific research, ** and other fields. This instrument adopts electric light source, the brightness can be continuously adjusted, hinged lens tube, 30° tilt, 360 degree free rotation.

          Standard configuration

          Eyepiece:

          categoryMagnificationField of view diameter
          High eye point, large field of view, planar eyepiece10XΦ22mm

          Objective:

          categoryMagnificationNumerical apertureWorking distance
          Infinity plan achromatic objective3w0.1NA15.00mm
          10X0.25NA10.80mm
          20X0.40NA1.50mm
          40X0.65NA0.80mm
          100X1.25NA0.21mm


          VS

          SHSGBM BM-SG15 Research Biological MicroscopeSpecifications

          LIST VALUE
          Mechanical barrel length Infinity system ∞
          spectral ratio 0:100；20:80；100:0
          magnification 40X-1000X
          Objective lens converter Six-hole converter (with DIC slot, with luminance memory function)
          Stage size Double-decked mobile platform 187 × 166mm, moving range 80 × 55mm
          pupil distance 50-76 mm
          Focusing device 25Mm coarse fretting coaxial focusing with limit, coarse focusing tension locking device, fine-tuning grid value 0.001mm
          condenser N.A.1.1 Abbe condenser adjustable medium with variable light bar
          lighting system Compound eye lighting system
          Light source Wide band 3W LED (Color temperature: 4000 +/- 100K)

          SHSGBM BM-SG15 Research Biological Microscope Packing list

          host X1, manual X1, certificate X1, warranty card X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
