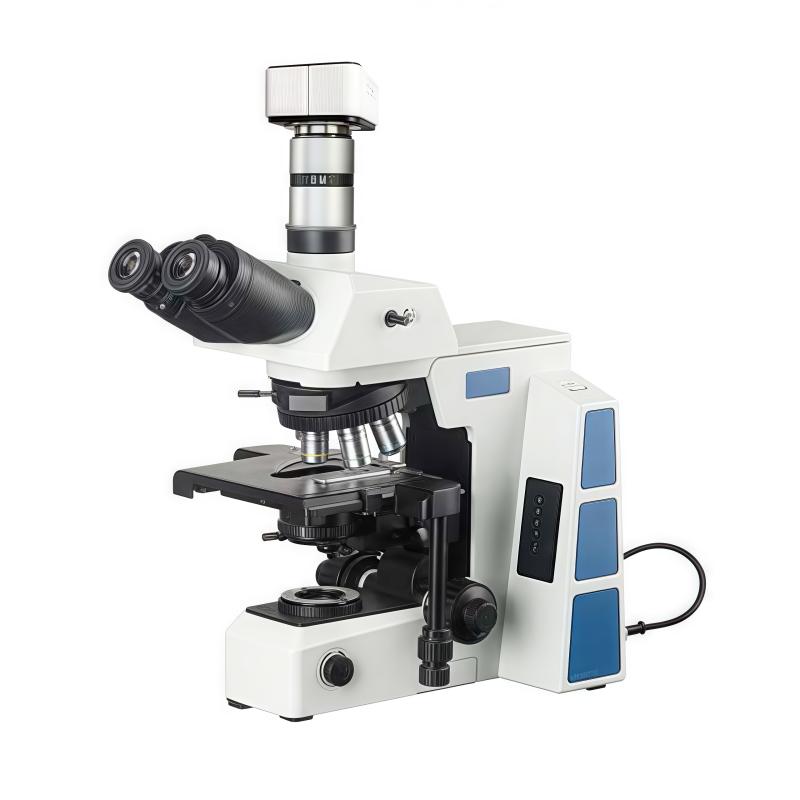

SHSGBM BM-SG15D Computer Research Biological Microscope

VARNISING BM-SG15D Computer Research Biological Microscope with 12 million Pixel CMOS Camera

Objective lens converter Six-hole converter (with DIC slot, with luminance memory function), magnification 40X-1000X, using electric light source, continuous adjustment of luminance, hinged barrel, 30 ° tilt, 360 degrees free rotation.

Brand

SKU: NB044928

SHSGBM

Model

BM-SG15D

Price

$ 11217.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

SHSGBM shopSE

Information

Datasheet RFQ Contract

What else did others buy

ANYTY 3R-MSA600S Portable Video Microscope 64GB

$ 957.00
TEELEN DXS-5 Inverted Biological Microscope

Login
Anyty 3R-MSUSB461 USB Digital Microscope

$ 520.00
Varnishing BM-PHP Tablet Microscope

$ 2547.00
Varnishing BM-20APHP Tablet Microscope 40X-1600X

$ 3307.00

Genuinegoods

SHSGBM BM-SG15D Computer Research Biological MicroscopeOverview
Specifications
Comments
FAQs

BM-SG15D

Computer Research Biological Microscope

Introduction

BM-SG15D computerized research biological microscope adopts infinite optical technology, the system with modular function combination, high-definition optical images, simple operating mechanism, easy to achieve brightfield, fluorescence, phase contrast, polarization and other professional observation and diagnostic analysis, fully meet the needs of users in scientific research, ** and other fields. This instrument adopts electric light source, the brightness can be continuously adjusted, hinged tube,30° tilt, 360 degree free rotation.

Features

Equipped with a high-magnification, high-numerical aperture microscope lens to provide high-resolution and clear fluorescence images.
Equipped with an autofocus system to ensure that the focal plane of the sample is maintained during long observations.

Standard configuration

Eyepiece:

category	Magnification	Field of view diameter
High eye point, large field of view, planar eyepiece	10X	Φ22mm

Objective:

category	Magnification	Numerical aperture	Working distance
Infinity plan achromatic objective	3w	0.1NA	15.00mm
	10X	0.25NA	10.80mm
	20X	0.40NA	1.50mm
	40X	0.65NA	0.80mm
	100X	1.25NA	0.21mm

SHSGBM BM-SG15D Computer Research Biological MicroscopeSpecifications

LIST	VALUE
Mechanical barrel length	Infinity system (∞)
spectral ratio	0:100；20:80；100:0
magnification	40X-1000X
Objective lens converter	Six-hole converter (with DIC slot, with luminance memory function)
Stage size	Double-decked mobile platform 187 × 166mm, moving range 80 × 55mm
pupil distance	50-76 mm
Focusing device	25Mm coarse fretting coaxial focusing with limit, coarse focusing tension locking device, fine-tuning grid value 0.001mm
condenser	N.A.1.1 Abbe condenser adjustable medium with variable light bar
lighting system	Compound eye lighting system
Light source	Wide band 3W LED (Color temperature: 4000 +/- 100K)
Computer imagery system	(1) Digital CMOS camera, 12 million pixels. With geometric measurement analysis software. The software for point, line, circle and arc, straightness, roundness, area and other measurements; (2) MCL-Z adapter mirror; (3) computer self-purchased

SHSGBM BM-SG15D Computer Research Biological Microscope Packing list

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
