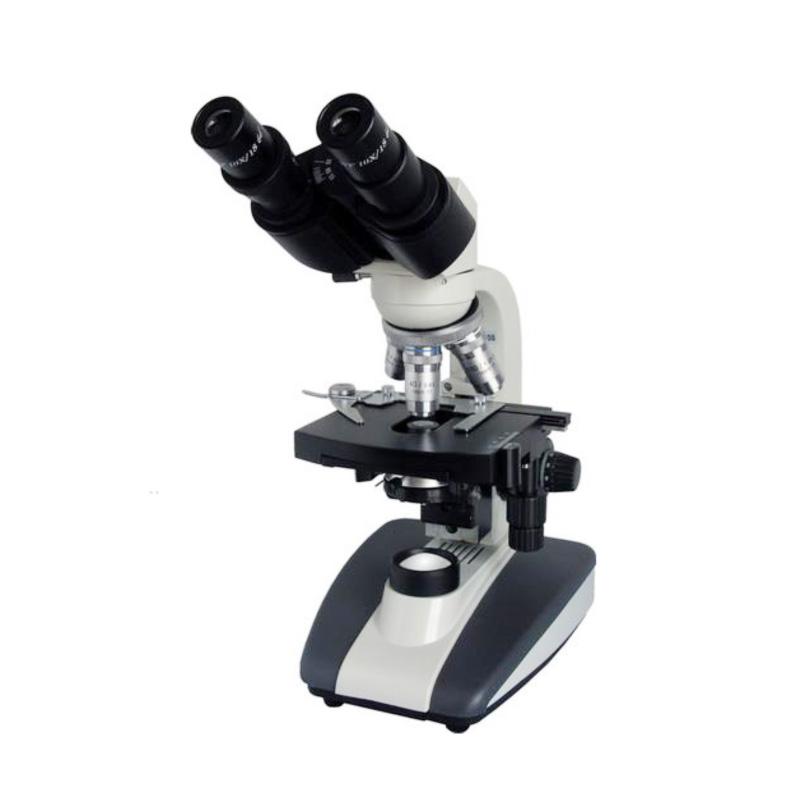

Varnishing XSP-BM-2CA Microscope Magnification 40X-1600X
Mechanical barrel length infinity system (∞), magnification 40X-1600X, using electric light source, luminance can be continuously adjusted, hinged barrel, 30 ° tilt, 360 degrees of free rotation.
SHSGBMIntroduction
XSP-BM-2CA binocular biological microscope is widely used in biology, cytology, histology, chemistry and other research institutes, which can be used for three routine examinations in medicine and can be used for teaching in school laboratories.This instrument adopts electric light source, the brightness can be continuously adjusted, hinged lens tube, 30° tilt, 360 degrees free rotation.
Features
Independent light source control: Binocular biological microscopes with electric light sources are often equipped with an independent light source control system, which enables users to precisely adjust and control the illumination intensity to meet different sample and observation needs.
Tunable light source type: The electric light source can be LED or other tunable light source, which allows the user to choose a light source with different color temperatures, which is helpful for observing and studying specific types of biological samples.
Illumination uniformity: The light provided by the electric light source is generally well uniform, which helps to obtain clear, high-quality microscopic images.
Low heat output: Microscopes with electric light sources such as LEDs generate less heat than traditional incandescent lamps, helping to reduce the likelihood of the sample being heated.
Environmentally friendly and energy-efficient: Electric light sources such as LEDs typically have a long life and low energy consumption, helping to reduce energy consumption while reducing environmental impact.
Scope of application
Biological research: Electro-light binocular biological microscopy is widely used in the field of biology to observe microbiological features such as cells and tissue structure.
Medical diagnostics: In medical practice, this type of microscope is commonly used in clinical laboratories for cytology, histopathology, etc.
Education: The electric light source binocular biological microscope is also the basic equipment in biology laboratories in schools and educational institutions for biological observation and experiments of students.
Industrial applications: In some industrial fields, such as food inspection, water quality testing, etc., this microscope may also be used for the observation and analysis of microstructure.
Standard configuration
Eyepiece:
| category | Magnification | Field of view diameter |
| Plan eyepiece | 10X | φ18mm |
| 16X | φ11mm |
Objective:
| category | Magnification | Numerical aperture | Working distance |
| objective | 3w | 0.10NA | 37.5mm |
| 10X | 0.25NA | 7.31mm | |
| 40X | 0.65NA | 0.63mm | |
| 100X (oil) | 1.25NA | 0.18mm |
SHSGBM XSP-BM-2CA MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Mechanical barrel length | Infinity system (∞) |
| magnification | 40X-1600X |
| Stage size | Mobile platform 130 × 130mm; moving range: 70 × 30mm; cursor: 0.1mm |
| pupil distance | 55-75 mm |
| Focusing device | 15 mm coarse fretting focusing coaxial mechanism; fine-tuning grid value 0.002mm |
| condenser | N.A.1.25 Abbe condenser adjustable medium with variable light bar |
| Color filter | Blue, yellow, green |
| Light source | LED light, adjustable luminance |
SHSGBM XSP-BM-2CA Microscope Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
