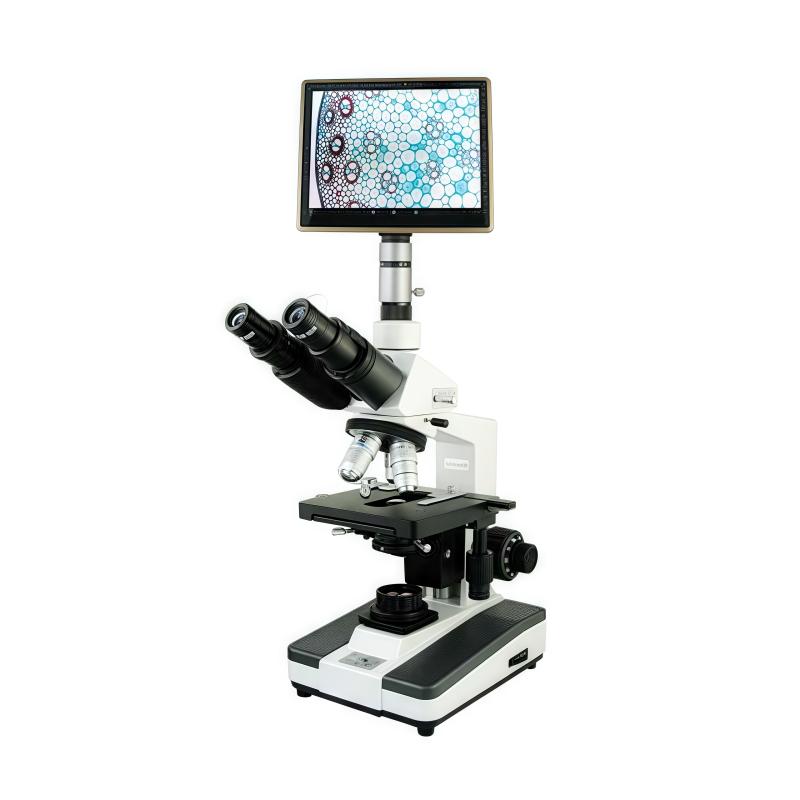

Varnishing XSP-BM-8CAP Tablet Microscope with 9.7 inch large screen tablet
The mechanical barrel is 160mm long, the magnification is 40X-1600X, the electric light source is used, the luminance can be continuously adjusted, and the hinged barrel is inclined at 30 °, which can rotate 360 degrees freely.
SHSGBM-
VARNISING BM-14DF Light and Dark Field of View Microscope Tricycle Tube
$ 717.00 -
Varnishing BM-37XFP Tablet Inverted Bio Microscope Magnification 100X-400X
$ 3582.00 -
Varnishing BM-PHP Tablet Microscope
$ 2547.00 -
VARNISING XSP-BM-8CAD Microscope with 5 million pixel CMOS camera
$ 1521.00 -
TEELEN XSP-1C Monocular Biological Microscope
Login
Introduction
XSP-BM-8CAP tablet computer biological microscope is widely used in biology, cytology, histology, chemistry and other research institutes, which can be used for three routine examinations in medicine, and can be used by research institutes and colleges and universities in the laboratory.
This instrument adopts electric light source, the brightness can be continuously adjusted, and the hinged lens barrel is tilted 30° and can rotate 360 degrees freely.
Features
Digital imaging: A computerized biomicroscope converts the images observed by the microscope into digital signals through a built-in or external digital camera, which is convenient for processing and display on a computer.
High-resolution images: A digital imaging system with high resolution that enables users to observe the details of tiny structures and obtain clear microscopic images.
Real-time observation: It provides real-time observation function, and users can see the microstructure on the computer screen in real time, which is convenient for observation and operation.
Digital storage and sharing: Ability to save observed images and data on a computer.
Standard configuration
Eyepiece:
| category | Magnification | Field of view diameter |
| Plan eyepiece | 10X | φ18mm |
| 16X | φ11mm |
Objective:
| category | Magnification | Numerical aperture | Working distance |
| objective | 3w | 0.10NA | 37.5mm |
| 10X | 0.25NA | 7.31mm | |
| 40X | 0.65NA | 0.63mm | |
| 100X (oil) | 1.25NA | 0.18mm |
SHSGBM XSP-BM-8CAP Tablet MicroscopeSpecifications
| LIST | VALUE |
|---|---|
| Mechanical barrel length | 160mm |
| magnification | 40X-1600X |
| Stage size | Mobile platform: 140 × 140mm; moving range: 75 × 50mm, cursor: 0.1mm |
| pupil distance | 55-75 mm |
| Focusing device | 30 mm coarse fretting coaxial focusing mechanism with limit, coarse focusing tension adjustment device, fine-tuning grid value 0.002mm |
| condenser | N.A.1.25 Adjustable medium Abbe condenser with variable light bar |
| Color filter | Blue, yellow, green |
| Light source | Halogen lamp 6V/20W, Kohler lighting, adjustable luminance |
| Imagery system | 9.7-Inch large-screen Android system tablet, MCL-Z adapter mirror |
SHSGBM XSP-BM-8CAP Tablet Microscope Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
