Varnishing XSP-BM-20A Microscope magnification 40X-1600X

Mechanical barrel length infinity system (∞), magnification 40X-1600X, using electric light source, luminance can be continuously adjusted, hinged barrel, 30 ° tilt, 360 degrees of free rotation.

Brand

SKU: NB044947

SHSGBM

Model

Get Quote

SHSGBM shop

Information

Datasheet

What else did others buy

Genuinegoods

SHSGBM XSP-BM-20A MicroscopeOverview
Specifications
Comments
FAQs

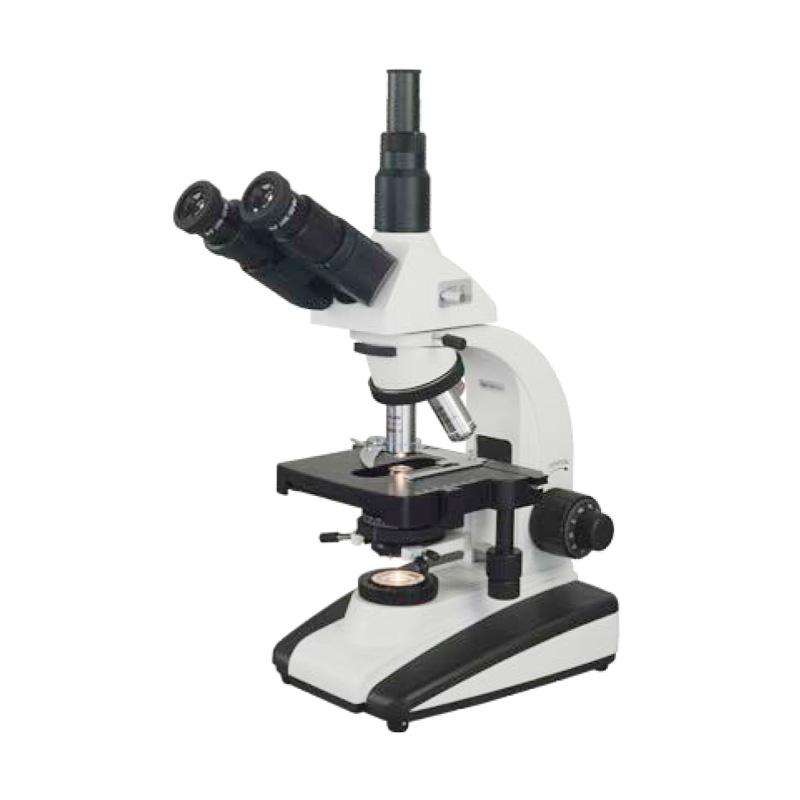

XSP-BM-20A

Microscope

Mechanical barrel length infinity system (∞), magnification 40X-1600X, using electric light source, luminance can be continuously adjusted, hinged barrel, 30 ° tilt, 360 degrees of free rotation.

Introduction

The XSP-BM-20A trinocular UIS biological microscope adopts UIS infinite optical technology, which is highly scalable and can be equipped with auxiliary equipment such as vertical illumination device and fluorescence device. It is widely used in histology, biology, bacteriology, pathology, chemistry and other research fields, as well as the teaching work of colleges and universities and clinical analysis and experiments in the medical community.

This instrument adopts electric light source, the brightness can be continuously adjusted, hinged lens tube, 30° tilt, 360 degree free rotation.

Standard configuration

Eyepiece:

category	Magnification	Field of view diameter
Plan eyepiece	10X	φ22mm
Plan eyepiece	16X	φ15mm

Objective:

category	Magnification	Numerical aperture	Working distance
Infinity plan achromatic objective	3w	0.10NA	20.00mm
	10X	0.25NA	13.50mm
	40X	0.65NA	0.68mm
	100X (oil)	1.25NA	0.20mm

SHSGBM XSP-BM-20A MicroscopeSpecifications

LIST	VALUE
Mechanical barrel length	Infinity system (∞)
magnification	40X-1600X
Stage size	Double-decked mobile platform: 155 × 145mm; moving range: 80 × 50mm
pupil distance	55-75 mm
Focusing device	30 mm coarse fretting coaxial focusing mechanism with limit, coarse focusing tension adjustment device, fine-tuning grid value 0.002mm
condenser	N.A.1.25 Abbe condenser adjustable medium with variable light bar
Color filter	Blue, yellow, green
Light source	6V/20W halogen lamp, Kohler lighting, adjustable luminance

SHSGBM XSP-BM-20A Microscope Packing list

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
