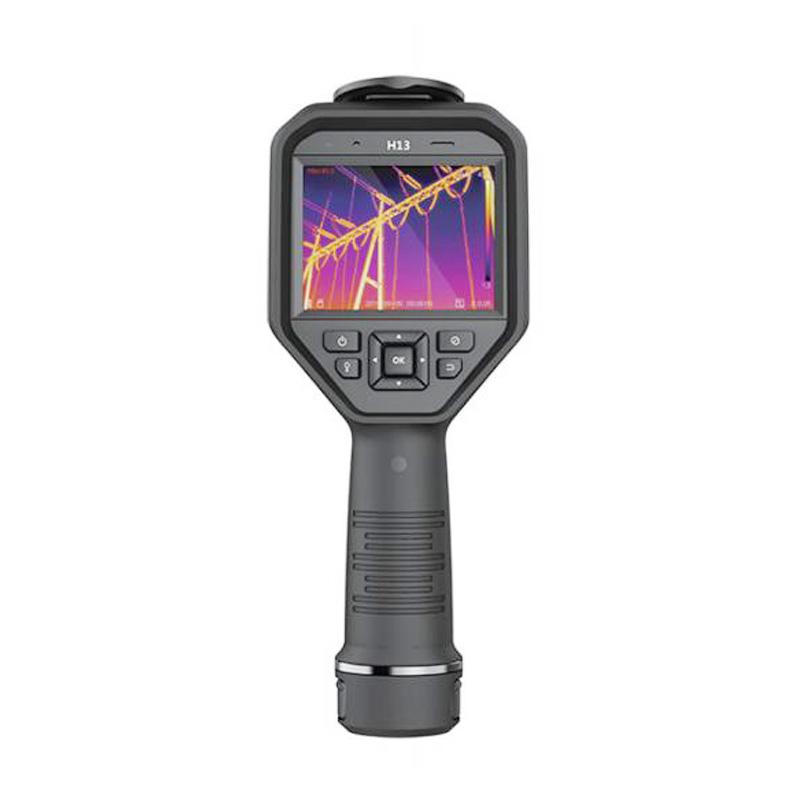

IPRE H13 infrared thermal imagery instrument, temperature measurement -20 ℃~ 350 ℃
Detector resolution 160 x 120, Response band 8-14μm, temperature range -20 ℃~ 350 ℃.
Brand
SKU: NB045096
IpreModel
H13
VS
What else did others buy
-
ST9450A + infrared thermal imagery instrument
$ 413.00 -
Dianyang DP-22 thermal imagery handheld, resolution 320x240
$ 689.00 -
Dianyang DP-21 thermal imagery handheld, resolution 220x160
$ 428.00 -
DIANYANG CA-30 CA Series Research Thermal Analyzer Infrared thermal imagery thermometer, wide temperature measurement range -20 ℃~ 550 ℃
$ 5512.00 -
DIANYANG CA-20D infrared thermal imagery analyzer, circuit board thermal fault detection
$ 1392.00
Genuinegoods
H13
Infrared thermal imagery
Detector resolution 160 x 120, Response band 8-14μm, temperature range -20 ℃~ 350 ℃.
null
VS
Ipre H13 Infrared thermal imagerySpecifications
| LIST | VALUE |
|---|---|
| Product model | H13 |
| Detector type | Uncooled Detector |
| Detector resolution | 160 x 120 |
| Response band | 8-14μm |
| IFOV | 5.48mrad |
| NETD (Noise Equivalent Temperature Difference) | <70mk(@25″ C.F#=1.0) |
| Minimum measurement distance | 0.15m |
| Field of view | 50°x37.2° |
| aperture | / |
| Numerical zoom | 1X、2X、4X |
| Accuracy | +/- 2 ″ C or +/- 2%, MAX Maximum |
| Temperature Measurement Range | -20℃~350℃ |
| Maximum image size | 800W |
| Picture resolution | 1600 x 1200 |
| Video resolution | 1600 x 1200 |
| frame rate | 25Hz |
| display | 3.5 ″ LCD capacitive touch screen 640 * 480 |
| image mode | Support 7 pseudo-color modes such as white hot and iron red |
| screen display mode | Thermal imagery |
| Laser pointer | Not supported |
| storage | 16G |
| take a picture | Thermal imagery |
| video recording | Thermal imagery |
| Heiming | Not supported |
| WIFI | Not supported |
| Text annotation | support |
| phonetic annotation | Support (60S) |
| interface language | Chinese/English |
| Battery type | Li-ion battery |
| Working time of battery | 5h, can be replaced on site, can be charged |
| Hardware Interface | TYPE-C |
| Operating temperature | -10℃~-50℃ |
| fall | 2m |
| Protection level | IP54 |
| Dimension | 244 mm x 100 mm x 104 mm |
| Weight | 630g |
Ipre H13 Infrared thermal imagery Packing list
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
