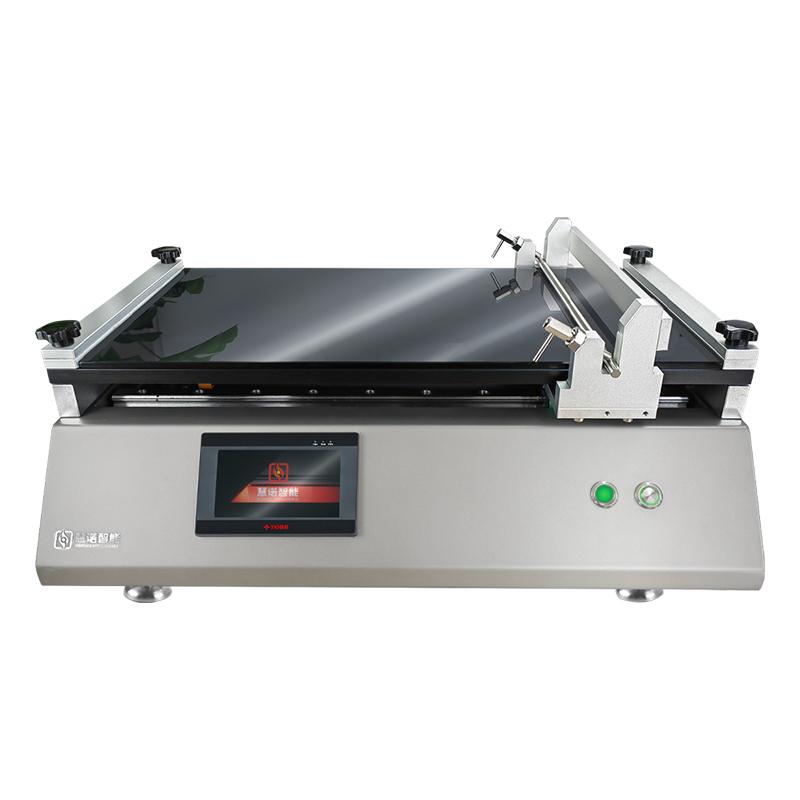

HuiNuo TM1000pro Automatic Film Applicator

HUINUO TM1000pro High-accuracy Wire-rod Film Coating Apparatus

Wire Spreader, Servo Motor, Easy Installation Spreader Head, Easy Installation Wire Spreader, High Smoothness Full Tempered Glass Mesa, Standard high-precision imported Film Applicator for film Spreader.

Brand

SKU: NB045279

Boutique

HuiNuo

Model

Price

$ 1966.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

HuiNuo shopSE

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

HuiNuo TM3300L Automatic Film Applicator bar drawdown blade Coater Vacuum chuck heating

$ 3229.00
Domestic (CN) TBJ-A1-XB500g Automatic Film Applicator bar type Automatic Film Applicator

$ 1935.00
China TBJ-X3-DJ20 automatic spraying and coating machine bar + Drawdown blade + lame plating + heating + Vacuum chuck + automatic feeding

$ 9544.00
Domestic (CN) TBJ-B1-DJ6 Automatic Film Applicator Intelligent Programmable drawdown blade Coater Automatic feeding

$ 5597.00
HuiNuo TM1300Pro/01D Floor type bar heating Vacuum chuck Coater 100 * 90cm

Login

Genuinegoods

HuiNuo TM1000pro Automatic Film ApplicatorOverview
Specifications
Comments
FAQs

TM1000pro

Automatic Film Applicator

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 1

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 2

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 3

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 4

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 5

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 6

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 7

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 8

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 9

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 10

HUINUO TM1000pro high-precision wire-rod Film Applicator servo motor Figure 11

product description

The automatic film coating machine is a device used for coating films in the laboratory. It replaces manual coating and automatically applies film to improve the accuracy and efficiency of coating. The Principle of the experimental automatic film coating machine is to evenly coat the sample on the substrate to form the required film by controlling the coating head and coating parameters.

This coating machine is a basic wire bar coating machine. It adopts a new wire bar installation method and has speed control and coating length adjustment functions. It is suitable for high-precision automatic coating in laboratories, and in university research institutes and new materials. , lithium battery and other laboratories for film production and proofing.

Applications

The film coating machine is suitable for coating film sample preparation of coatings, inks, paints, slurries, lithium batteries, pressure-sensitive adhesives, polymer materials, pharmaceuticals, etc. It can be applied on glass, cardboard, and cloth.

Features

1) The glass tabletop is a 3C certified national standard authentic fully tempered glass plate, original gold crystal, heat-resistant to 600℃, scratch-resistant and scratch-resistant

2) Equipped with a high-precision Film Applicator, the original imported wire rod can apply the film uniformly and with high precision

3) Aluminum alloy hard oxidation surface treated coated base plate, wear-resistant and flat, comes with flatness accuracy calibration certificate

4) Touch screen control panel, easy to operate

5) Coating length and coating speed can be adjusted freely

HuiNuo TM1000pro Automatic Film ApplicatorSpecifications

LIST	VALUE
Coating method	Rod
Coating speed	1~ 300Mm/s stepless speed regulation (can be customized)
Substrate clamping method	fixture
Coating table material	Glass plate
Coating table size	600*300mm
Effective coating Area	400 * 300Mm (can be customized)
Film thickness	Controlled by bar, with high-precision imported bar
Mayer Rod Accuracy	±0.001mm
Drive motor	Servo motor
Power	600w
Operating language	Chinese (can be customized in English)
Display	Color LCD touch screen
Host Power Supply	220V/50HZ (can be customized 110V/60HZ)
Dimension	658438205mm（LWH）
Weight	39.7kg
optional feature	Drawdown blade, heating, vacuum adsorption

HuiNuo TM1000pro Automatic Film Applicator Packing list

Machine X1, manual X1, fixture X1, doctor blade x1, imported wire rod X1, certificate X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Which instrument should be selected for the film test of lithium battery paste in the laboratory?

[A]

TM1000pro adopts imported high-precision bar, Spreader accuracy can reach +/- 0.001mm, which can ensure the uniformity and conformity of lithium battery slurry Spreader. Servo motor drive with 1-300mm/s stepless speed regulation can precisely control Spreader speed, especially suitable for Moulding requirements when developing lithium battery materials.

[Q]

Do polymer materials film experiment, this Film Applicator is applicable?

[A]

Applicable. TM1000pro is specially designed for university research institutes and New material laboratories. It is equipped with a heat-resistant 600 ° C tempered Glass countertop and a hard aluminum oxide alloy baseplate, which can withstand various conditions in the polymer material film process. The application length and speed can be adjusted freely, and with a high-precision bar, it can ensure the preparatory mass of the polymer film.

[Q]

I need to do a Repeatability test on the Coating sample. What are the advantages of this Film Applicator?

[A]

The automated Spreader function of the TM1000pro can significantly improve the test Repeatability. The servo motor ensures that the speed of each Spreader is stable, and the imported bar guarantees the same film thickness. The touch screen operation is simple and the parameter setting is accurate, which avoids the artificial error of manual film. It is especially suitable for the comparison test and quality control of Coating samples.

[Q]

The laboratory needs to do the film test of lithium battery paste. Do you have a suitable Automatic Film Applicator?

[A]

It is recommended that you use HuiNuo TM1000pro Automatic Film Applicator. This device adopts the original imported bar, and the film uniform accuracy is as high as +/- 0.001mm, which is especially suitable for applications requiring high-precision Spreader such as lithium battery paste. Servo motor drive and 1~ 300mm/s stepless speed regulation can ensure the stability and control of the Spreader process and effectively improve the Reliability of experimental data.

[Q]

In our New materials laboratory, we often need to coat polymer films on Glass substrates. Which Film Applicator should we choose?

[A]

HuiNuo TM1000pro is suitable for your situation. It is equipped with a tempered Glass countertop with heat resistance of 600 ° C, which can withstand high temperature experimental environment; the aluminum alloy Spreader baseplate comes with a Smoothness calibrated certificate to ensure uniform thickness when filming on the Glass substrate. The touch screen is easy to operate, and the application length and speed can be adjusted freely, which is suitable for scientific research in universities.
