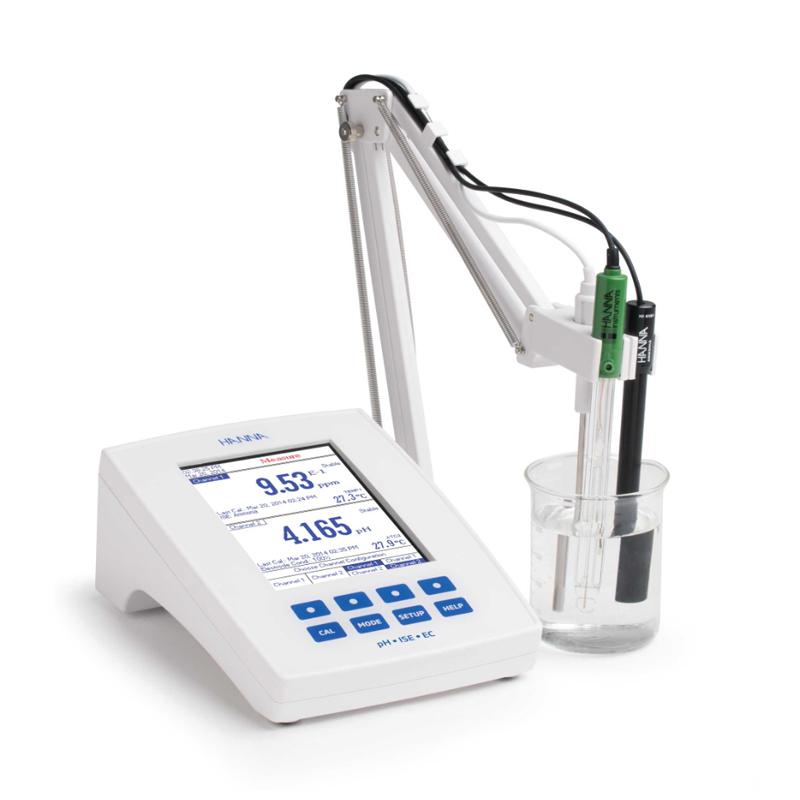

HANNA HI5522 Professional desktop multiparameter Water Quality Analyzer (8 parameters)
Measurement range: -2.000 to 20.000 pH, ORP/mV: +/-2000.0 mV, ISE: 1.00 x 10-6 to 9.99 x 1010 Ion concentration units, linear and non-linear temperature compensation, choice of three salinity measurement ranges, up to four point EC calibrated and single point salinity calibrated.
HANNA
HI5522
Features
Capacitive touch buttons, clear user interface, on-screen operation guide, multiple language options;
5-point pH automatic recognition calibration, 8 built-in standard points, 5 custom calibrations;
USP-<645> three-step conductivity analysis standard, in line with international measurement specifications; especially suitable for pure water and ultrapure water measurement;
Linear and nonlinear temperature compensation, three salinity measurement range options;
Up to four-point EC calibration and single-point salinity calibration;
GLP management, USB data interface, charts and curves, convenient data analysis;
Data storage, three data storage modes: automatic, manual and end-point lock. Automatically and manually store 100 groups, 50,000 data/group; up to 200 USP data reports;
Custom setting files can store or view up to 10 custom files, that is, user-defined settings include: mode, standard point, temperature unit, resolution and other information;
User-friendly operation interface supports multiple language selections, and on-screen measurement and calibration operation prompts are convenient and fast.
HANNA HI5522 Desktop multiparameter DetectorSpecifications
| LIST | VALUE |
|---|---|
| Measurement range -pH | -2.0 to 20.0 pH；-2.0 to 20.00；-2.000 to 20.000 pH |
| Resolution-pH | 0.1 pH ；0.01 pH；0.001 pH |
| Measurement Accuracy -pH | ±0.1 pH；±0.01 pH；±0.002 pH±1 LSD |
| Calibrated mode -pH | Up to five-point acidity pH automatically recognizes the calibrate and five user-defined calibrates with eight built-in acidity standard calibrate points (1.68, 3.00, 4.01, 6.86, 7.01, 9.18, 10.01, 12.45 pH) |
| Temperature compensation -pH | Automatic or manual temperature compensation, -20.0 to 120.0 ℃, -4.0 to 248.0 ° F, 253.15 to 393.15K |
| Measurement range -ORP | ±2000.0 mV |
| Resolution - ORP | 0.1 mV |
| Measurement Accuracy - ORP | ±0.2 mV ±1 LSD |
| Measurement range -ISE | 1.00X10-6 to 9.99x1010 Ion concentration units |
| Resolution-ISE | 0.001, 0.01, 0.1, 1 Ion concentration unit |
| Measurement Accuracy - ISE | Readings +/- 0.5% (price ions), readings +/- 1% (divalent ions) |
| Calibrated mode - ISE | Five automatically recognized calibrates and five user-defined calibrates with five standard calibrated points built in |
| Temperature Measurement Range | -20.0 to 120.0 ℃、-4.0 to 248.0 ℉、253.15 to 393.15K |
| temperature resolution | 0.1℃、0.1℉、0.1K |
| Temperature measurement Accuracy | +/- 0.2 ℃、 +/- 0.4 ℉、 +/- 0.2K (ignoring probe error) |
| EC range | 0.000 to 9.999 μS/cm；10.00 to 99.99μS/cm；100.0 to 999.9μS/cm；1.000 to 9.999 mS/cm；10.00 to 99.99 mS/cm；100.0 to 1000.0 mS/cm 自动量程转换 |
| Resolution-EC | 0.001 μS/cm；0.01 μS/cm；0.1 μS/cm；0.001 mS/cm；0.01mS/cm；0.1 mS/cm |
| Measurement Accuracy -EC | Reading +/- 1 %（ +/- 0.01 μS/cm) |
| Calibrated mode - EC | Single point calibrated |
| Conductivity Detector constant -EC | 0.0500 to 200.00/cm |
| Calibrated mode - EC | Automatic identification of calibrated points, user single-point/multi-point custom calibrated; calibrated expiration reminder; |
| Temperature compensation -EC | Coefficients 0.00 to 10.00%/℃; linear, non-linear and uncompensated modes |
| Miscellaneous Indicators EC | Up to 10 set files, 5/channel; USP compliant |
| TDS range | 0.000 to 9.999、10.00 to 99.99、100.0 to 999.9 mg/L（ppm）；1.000 to 9.999、10.00 to 99.99、100.0 to 400.0 g/L（ppt）；TDS转换系数：1.00 |
| Resolution-TDS | 0.001、0.01、0.1 mg/L（ppm）、0.001、0.01、0.1 g/L（ppt） |
| Measurement Accuracy - TDS | ±1 %（±0.01 mg/L) |
| Measurement range - Electrical resistivity | 1.0 to 99.9、 100 to 999 Ohms ·cm；1.00 to 9.99、10.0 to 99.9、100 to 999 KOhms·cm；1.00 to 9.99、10.0 to 100.0 MOhms·cm；自动量程转换 |
| Resolution - Electrical resistivity | 0.1、1.0 Ohms·cm；0.01、0.1、1KOhms ·cm；0.01、0.1 MOhms·cm |
| Measurement Accuracy - Electrical resistivity | +/- 2 %（ +/- 1 Ohms · cm), whichever is the largest, ignoring the probe error |
| Salinity range | Actual salinity: 0.00 to 42.00 PSU; Seawater salinity: 0.00 to 80.00 ppt (g/L); salinity: 0.0 to 400.0% NaCI |
| Salinity resolution | 0.1%, 0.01 ppt (actual salinity, seawater salinity) |
| Salinity measurement Accuracy | Reading +/- 1% |
| Salinity calibrated mode | Single point mode (HI7037 salinity 100% calibrated solution can be used) |
| input channel | 1 pH/ORP/ISE+1EC |
| GLP function | Conductivity Detector constants, reference temperatures, temperature compensation coefficients, calibrating point settings, time, date, and more |
| Data storage | USB interface, manual storage of 100 groups, 50,000 data/group; 100,000 data/channel; storage type: automatic, manual, destination lock; storage interval: 1 second-80 minutes can be set; additional: 200 USP reports; 200 ISE Method of addition reports (HI5522 only) |
| display mode | Color display (LCD). With on-screen help, user confirmation, etc |
| Power mode | 230AC/12VDC power adapter |
| Operating Environment | 0 to 50℃（32 to 122 ℉），RH max 55% |
| Size Weight | Host size: 160x231x94 mm, host Weight: 1.2Kg |
HANNA HI5522 Desktop multiparameter Detector Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
