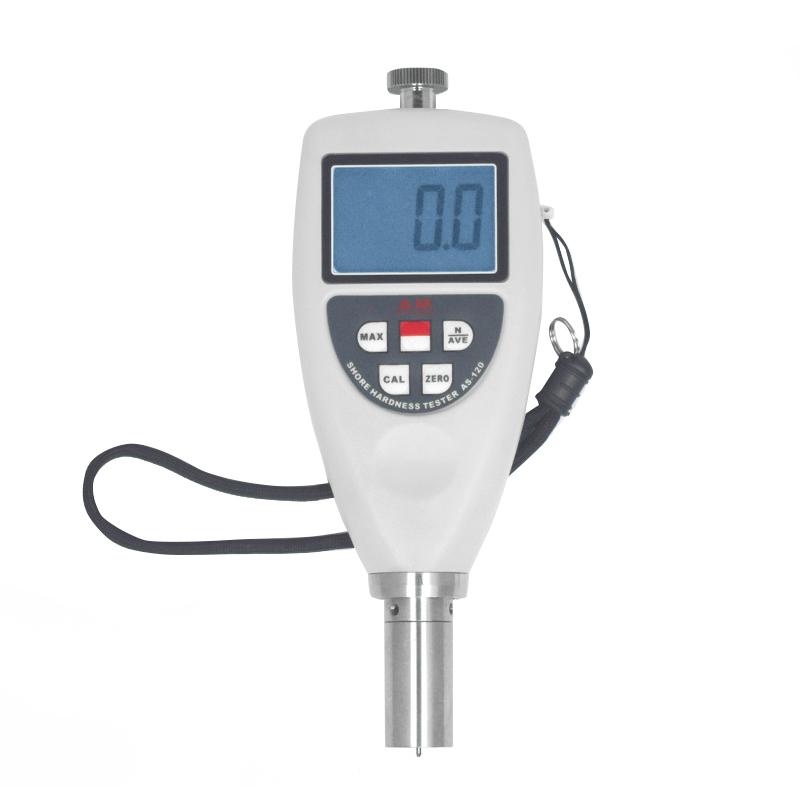

AMITTARI AS-120D Shore Durometer Hardness Tester

Brief Introduction of AS-120 Series Shore Hardness Tester

An Miao AS-120 series Shore Hardness Tester is mainly used to measure the indentation hardness of the material. It has a variety of different scales to indicate the hardness of the tested material, divided into AS-120A, AS-120B, AS-120C, Eight models of AS-120D, AS-120E, AS-120O, AS-120DO, and AS-120OO provide eight measuring instruments with different measuring probe sizes, measurable objects and hardness values to meet the needs of users for the hardness of different objects Measure the needs of your application.

application standard

GB/T 531-1999 "Rubber Pocket Durometer Indentation Hardness Test Method"; GB/T 2411-80 "Plastic Shore Hardness Test Method"; DIN53505, ISO868, ISO7619, ASTMD2240, JIS K7215.

AS-120 product features

* Integrated design, small size and light weight.

* It has the functions of maximum value lock, underVoltage alarm indication, automatic shutdown and manual shutdown.

* Use USB data line output to communicate with PC.

* Provide Bluetooth data output option.

* When the battery Voltage is lower than the specified value, it will be automatically indicated.

* Digital display, no parallax.

* metric/imperial unit conversion, with average calculation function.

* Automatic shutdown and manual shutdown.

* Using computer technology, digital filtering technology and many other professional technologies, it can accurately measure the material thickness.

* Using optional RS232C software and cables, it can communicate with PC computer to realize functions of data collection, processing, analysis and printing.

Functional Structure Diagram

AS-120 Model Measurable Materials List

Display of AS-120 Shore Hardness Tester

Host x1, Shore Hardness Block x1, Portable Suitcase x1, Operation Manual x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
