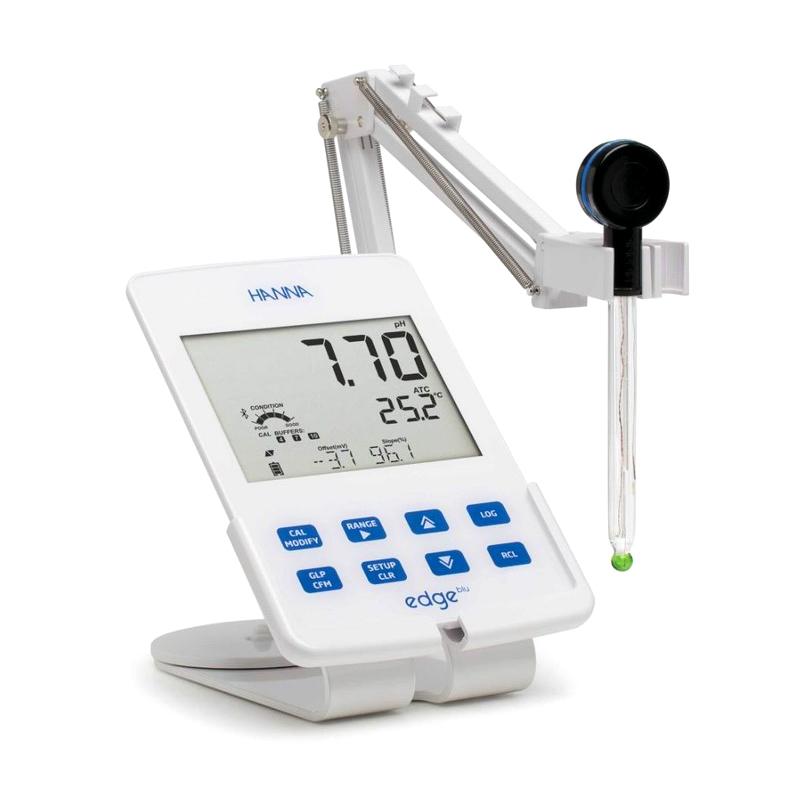

HANNA HI2202 Bluetooth pH Flat Edge Measurement Instrument -2.00~16.00pH
-2.00~16.00pH, 5.5 inch large Viewing Angle LCD screen, Bluetooth electrode, Bluetooth transmission within 10 meters, support automatic temperature compensation, can be customized special bracket.
HANNA
HI2202
-
Bante930-CN Laboratory Water Quality pH Meter
$ 490.00 -
DDKSIC 201A-C composite pH electrode measurement of conventional water samples in scientific research environment monitoring and other industries
$ 85.00 -
KODIDA CT-6821 Industrial pHmeter ORP
$ 127.00 -
FANGZHOU FZ-600 two-in-one electrode conventional sample
$ 103.00 -
FANGZHOU PHS-430 high-precision module acidity meter 0.001 multiparameter can be connected to PC
$ 1100.00
Introduction
The world's novel design of acidity pH meter equipped with Bluetooth smart technology
The Bluetooth electrode realizes quick connection with the H2202 (edgeblu) measurement host through one button, and displays the name of the electrode and the status of the electrode's built-in battery on the host interface; blue indicator light, built-in temperature sensor and microprocessor amplifier, equipped with Bluetooth smart technology, clear Cable length constraints enable direct transmission of measurement data on-site and in laboratories within a range of 10 meters.
Features
1. Powerful management functions
Uniquely automatically identifies the electrode type, automatically enters the measurement project mode, the electrode sensor automatically stores calibration data, automatically retrieves and queries GLP stored data, the CAL-CHECK electrode verification system prompts electrode contamination and standard buffer information, and promptly reminds the current status of the acidity pH electrode (good, damaged) and electrode connection condition.
GLP records the last calibration information, including calibration date and time, buffer 1 standard solution, and stores this information in the electrode. When the smart Bluetooth electrode with GLP information stored is connected to other H12202 analyzers, the GLP data in the electrode will be automatically transmitted to In the instrument, the electrode and the instrument are automatically matched, and there is no need to recalibrate.
2. Data management function
Measurement data, GLP data, time and date, including up to 1000 groups of data storage (basic mode: 400 groups), manual point storage of 200 groups of data storage, manual continuous data storage of 200 groups, time interval (automatic 600, manual 100) Sample storage), the USB data interface realizes measurement data output, and the micro USB interface realizes data transmission and charging functions to ensure advanced analysis and management of measurement data.
3. On-screen operation step prompts
The bottom of the screen displays concise full-text information prompts, discarding troublesome abbreviations, making the operation convenient and quick.
4. Extra large screen, ultra-thin design, touch operation
Ultra-light and easy to carry, 12.7mm ultra-thin body, 250g lightweight design, stylish and beautiful touch buttons, integrated screen and button design, keep you away from sample residue on the keyboard, and prevent samples from damaging the operation panel. 5.5-inch LCD screen with large Viewing Angle, 150 Viewing Angle, measurement data within 5 meters can be clearly seen.
5. Customized special bracket
The electrode can be flexibly adjusted to a suitable measurement position and the display screen can be adjusted to the Viewing Angle. It can be hung with a stand, used on the desktop, or used handheld without a stand. Save space and easy to carry.
HANNA HI2202 Bluetooth pH Flat Edge Measurement InstrumentSpecifications
| LIST | VALUE |
|---|---|
| PH range | -2.00 to 16.00pH, -2.000 to 16.000pH (Standard mode only) |
| pH resolution | 0.01pH、0.001pH |
| Measurement Accuracy of pH | @25℃/77℉：±0.01pH、±0.002pH |
| pH calibrating mode | Standard mode: 5 points automatically identify calibrated, 2 points custom calibrated |
| pH temperature compensation | Automatic compensation, -5.0 to 100.0 ℃ (23.0 to 212.0 ° F) |
| P electrode diagnosis | Electrode condition, Response time, calibrated expiration reminder |
| Measurement range mV | ±1000 mV |
| mV resolution | 0.1mV |
| Measurement Accuracy of mV | ±0.2mV （@25℃/77℉） |
| Measurement range | -20.0 to 120.0℃、-4.0 to 248.0℉ |
| temperature resolution | 0.1℃、0.1℉ |
| Measurement Accuracy | ±0.5℃、±0.9°℉ |
| Electrode configuration | HI11102 Bluetooth built-in temperature sensor Glass acidity pH electrode |
| storage mode | Automatically store 1000 sets of measurement data, store 200 sets of measurement data at intervals; manually store 600 sets of measurement data |
| Interface | Dual communication interface mode: USB Interface and micro Interface |
| Power mode | Built-in rechargeable battery, 5V power adapter and special charging function multi-function bracket |
| Operating Environment | 0 to 50℃（32 to 122℉），RH max 95% |
| Size Weight | Host size: 202 * 140 * 12mm, host Weight: 250g |
HANNA HI2202 Bluetooth pH Flat Edge Measurement Instrument Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
