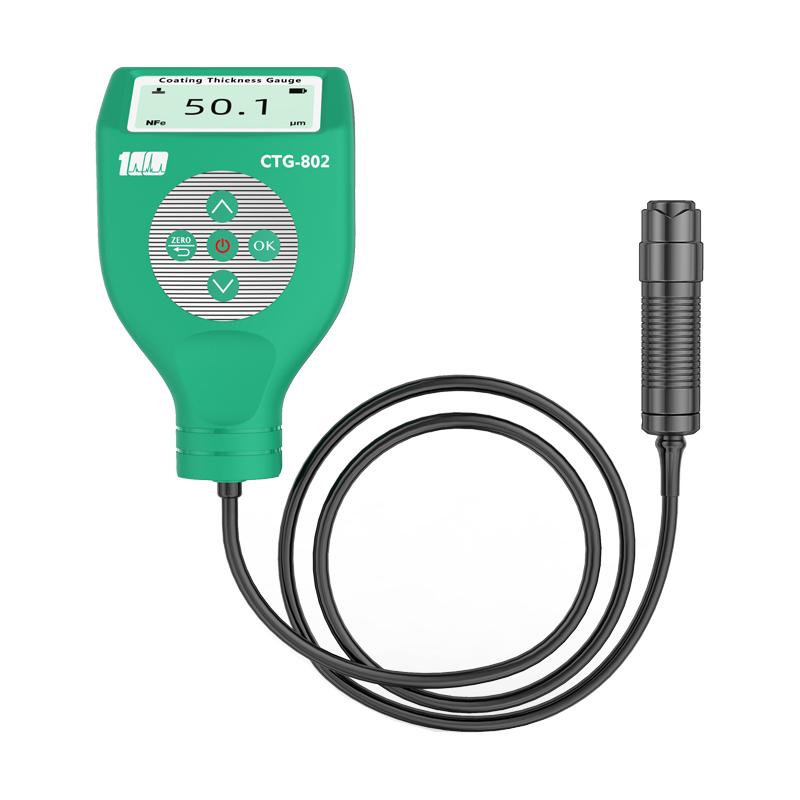

CHINA CTG-802-1500FN Split iron-aluminum dual-use Coating Thickness Gauge (standard)

Introduction

CTG-802-1500FN is a split-type coating Thickness Gauge for both iron and aluminum. It can automatically identify the substrate and adopts magnetic induction and eddy current automatic conversion technology. The measurement method complies with international standards ISO2178, ISO2360 and national standards GB4956, GB4957. It can quickly, non-destructively and accurately measure the thickness of coatings and coatings, and can be used in both laboratories and engineering sites. This instrument is widely used in testing fields such as manufacturing, metal processing industry, chemical industry, commodity inspection, etc. It is a commonly used instrument for material protection.

Features

• Adopting two thickness measurement methods, magnetic and eddy current, it can non-destructively measure the thickness of non-magnetic coatings (such as aluminum, chromium, copper, zinc, enamel, etc.) on magnetic metal substrates (such as steel, iron, alloys and hard magnetic steel, etc.) The thickness of the non-conductive covering layer (such as enamel, rubber, paint, plastic, etc.) on the non-magnetic metal substrate (such as copper, aluminum, zinc, tin, etc.).

• The spring guide probe with super wear-resistant carbide probe can ensure the probe has constant pressing force and stable sampling value when measuring on hard or rough surfaces, and the probe has a wear resistance of 500,000 times or more.

• The measurement speed can reach 0.3 seconds/time.

• It has high precision and good stability, and can measure ultra-thin coatings of 1-5μm.

• Wide measuring range and high resolution.

• Good touch measurement accuracy.

• Can quickly and automatically identify magnetic and non-magnetic substrates.

• Integrated structure, small size and light weight.

• It adopts dot matrix backlight display with no parallax and is suitable for night use.

• This instrument is equipped with automatic shutdown to realize power saving function.

host X1, standard piece X6, base X1, manual X1, battery X2, warranty card X1, certificate X1, portable case X1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
