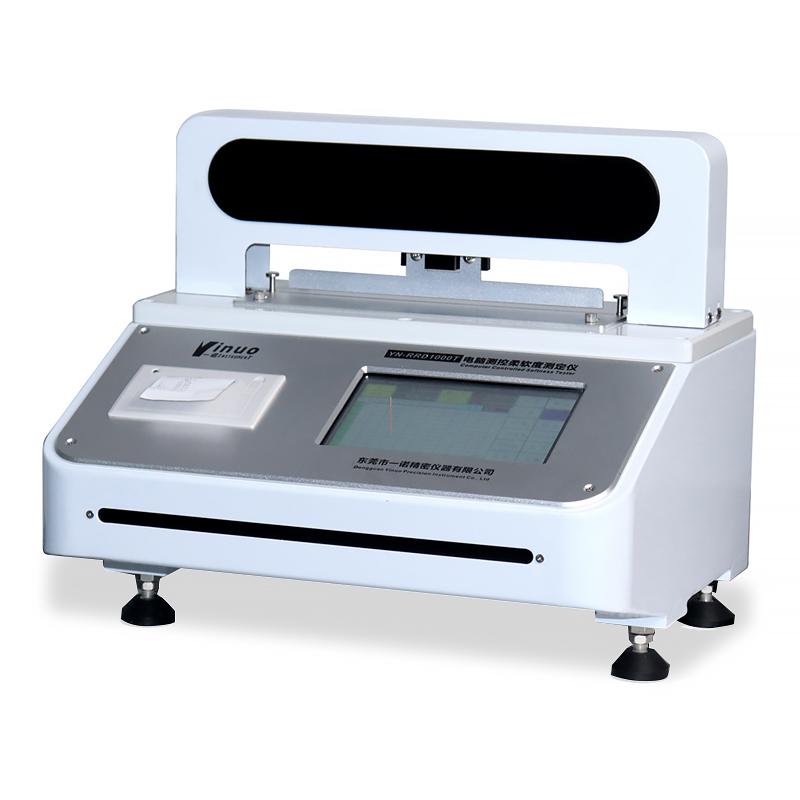

YINUO YN-RRD1000T Computer Measurement and Control Softness Tester

Introduction

YN-RRD1000T Microcomputer Softness Tester is a test instrument that simulates the softness of the hand, this instrument refers to the American Handle-O-Meter instrument test principle, according to the national standard GB/T 8942 "Determination of Paper Softness", ASTM D2923 "Standard Test Method for Hardness of Polyolefin Film and Sheet" and TAPPI T498 "Special Testing Instrument for Non-woven Softness" and other relevant regulations. Softness testing of composite materials such as thin films. It is a commonly used testing instrument for papermaking, scientific research units and quality inspection departments.

Test principle

Under the specified conditions, when the plate probe presses the sample into a certain depth (8mm) of the slit, the instrument records the sum of the bending resistance force of the sample itself and the maximum vector of the friction force at the gap between the sample itself, which is called the softness of the sample, and the smaller the instrument value, the softer the sample.

Features

• Support customization, according to customer needs to be customized on demand;

• The 7in touch screen control system is used for simple and convenient operation;

• Automatic measurement, with one-key data statistics function;

• The real-time curve shows the pressure change during the test;

• Automatic reset of over-range to protect precision sensors;

• Pedestal color composite material anodic anti-rust treatment;

• Built-in printer, after testing a batch of data, you can directly print the test report.

Test Standards

GB/T 8942、QB/T 1060、ASTM D2923、ASTM D6828-02、TAPPI T498、INDA IST 90.3、EDANA WSP 90.3

Scope of application

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
