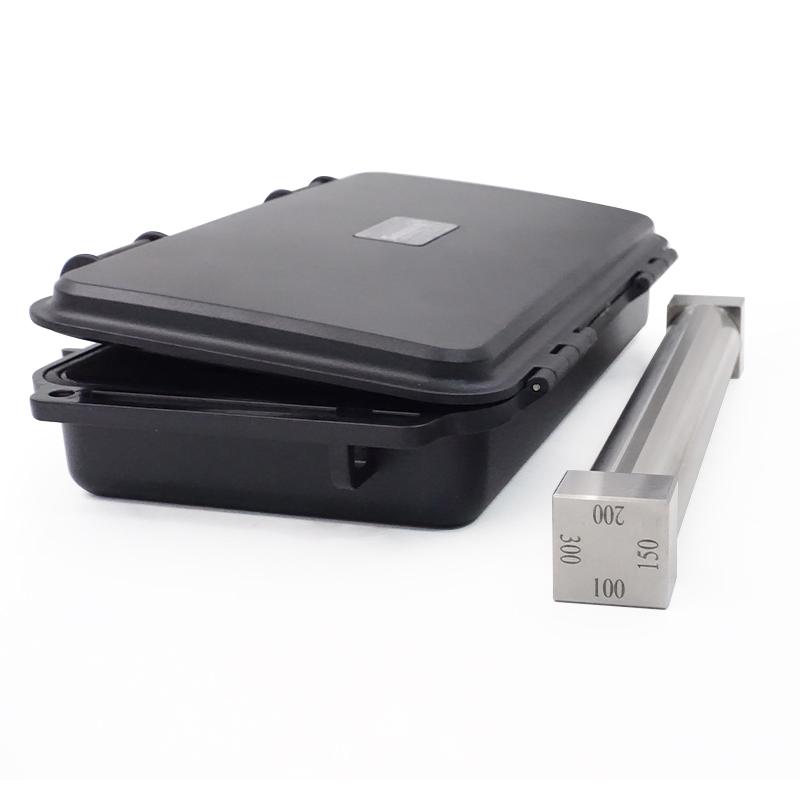

CHINA 4-sided Film Applicator SZQ-80 15/30/60/90μm
4-sided film thickness 15μm, 30μm, 60μm, 90μm, application width 80mm, with factory test certificate, can be measured, using 9Cr18Mo wear-resistant stainless steel material.
HuiNuo
SZQ-80 15/30/60/90μm
SZQ-80 50/100/150/200μm
-
CHINA KTQ-300 Micrometer Film Applicator Application width 300mm
$ 692.00 -
TQC SH1142 VF1824 Micrometer Film Applicator 250mm Micrometer Film Applicator
$ 1978.00 -
MODERNER SZQ-500 (ISO Bird-type) Wet Film Applicator 500μm film Applicator
Login -
TRUIT TR 3002/3 Double Sided Film Applicator 150/200μm
$ 141.00 -
TRUIT TR 3101/150 Adjustable Film Applicator film width 150mm
$ 281.00
Introduction
SZQ-80 50/100/150/200μm is a four-sided Film Applicator. The coating thickness is 50/100/150/200μm , the coating width is 80mm, the Total length is 100mm, and the coating accuracy is ±2μm. It is a standard four-sided Applicator.
The Wet Film Applicator is a manual laboratory applicator with different coating width specifications to choose from. It is made of high-carbon chromium wear-resistant and anti-corrosion stainless steel. The dimensional accuracy of the preparer is tested with imported three-dimensional coordinates before leaving the factory to ensure the quality of the coating film. accuracy. The SZQ series preparers are available in various shapes such as I-shaped, frame-shaped, and square. According to the thickness of the coating film, they can be divided into single-sided, double-sided, four-sided, and eight-sided Applicators. The Wet Film Applicator is suitable for film production of paints, glues, coatings, inks, new chemical materials, etc. It can be equipped with a film coating machine for automatic film scraping. NBCHAO provides customized preparation service.
Features
1. 9Cr18Mo high-hardness stainless steel material has good wear resistance and corrosion resistance, with a hardness value of 50~55HRC.
2. Coating film accuracy is ±2μm.
3. Smooth surface, diverse styles, wide range of applications, and supports customized specifications
4. It adopts imported three-coordinate detection accuracy and comes with factory inspection report, which can withstand measurement.
Preparator series parameter table
| name | Specificationsmm | Wet film thickness μm |
| single sided Applicator | Total length 80, coating width 50, 75 | 50, 75, 100, 125, 150, 175, 200 |
| Double sided Applicator | Total length 100, coating width 80 | 25, 50, 75, 100, 150, 175, 200, 300, 400 |
| Frame Applicator | Total length 90, coating width 80 | 30, 50, 60, 90, 120, 150, 200 |
| Eight-sided Applicator | Total length 90, coating width 68 | 50, 75, 100, 125, 150, 175, 200 |
| Eight-sided Applicator | Total length 100, coating width 80 | |
| Square Applicator | 25x25, coating width 16 | 37, 50, 75, 100 |
| Square Applicator | 50x50, coating width 41 | 50, 100 |
| Standard four-sided Applicator | Total length 100, coating width 80 | All specifications and sizes support non-standard customization |
| Extended four-sided Applicator | Total length 190, coating width 160 |
HuiNuo SZQ-80 15/30/60/90μm 4-Sided ApplicatorsSpecifications
| LIST | VALUE |
|---|---|
| type | 4-sided |
| WFT | 15/30/60/90μm |
| Application width | 80mm |
| Accuracy | ±2μm |
| material | 9Cr18Mo stainless steel |
| Total length | 100mm |
HuiNuo SZQ-80 15/30/60/90μm 4-Sided Applicators Packing list
Applicator x1, test report X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
