product description
The TBJ-X small coating testing machine for inspection all uses imported accessories and is very affordable. It has been favored by many multinational R&D institutions, as well as many well-known universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the coating and gluing effect is ensured, and the uniformity and stability of the coating and gluing are ensured.

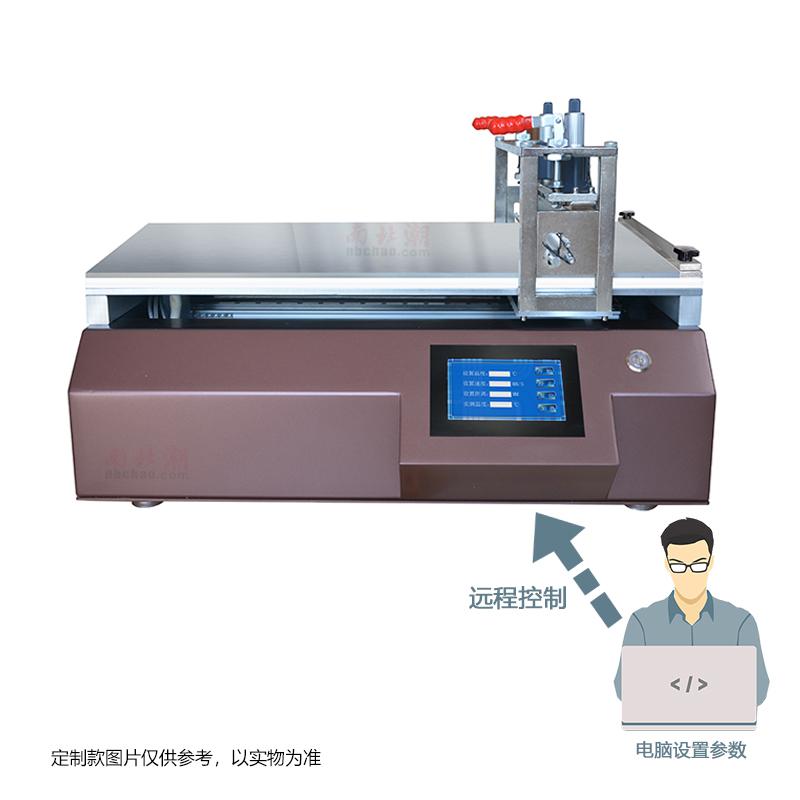

TBJ-X2-DJ8 intelligent program-controlled coating machine is a small coating machine with three-in-one functions of wire bar scraper and vacuum adsorption. The control panel supports remote computer setting of coating parameters, such as coating speed, coating length, and heating temperature. etc., using a high-flat aluminum alloy bottom plate, touch screen control operation, equipped with high-precision wire rods, and the coating thickness range of the adjustable scraper is 0~10mm, which is suitable for film production and proofing of films, release papers, etc.
Optional
|
|
|
zy TBJ-X2-DJ8 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Drawdown blade Accuracy | ±0.003mm |
| Drawdown blade thickness range | 0~10Mm drawdown blade can be lifted |
| Coating speed | 5~ 180Mm/s (< 5mm/s can be customized) |
| Coating size | 300*400mm |
| Spreader speed | Digital display, different speeds |
| Vacuum Area | 300 * 400Mm (can be customized) |
| Vacuum aperture | Φ1.2mm |
| Vacuum hole spacing | 20*20mm |
| Vacuum pump size | 380*180*280mm |
| Coating rod specification | Determine Spreader thickness according to rod model |
| Host Power | 220V 50Hz |
| Dimensions | 630*410*520mm |
| Weight | Net Weight 65KG |
| speed control | Infinitely variable speed |
| Coating table material | aluminum alloy |
| Intelligent program control | Support computer remote setting film speed, application length, film temperature |
| Optional | Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |
| Customizable function | Jet system device, UV solid-containing device, automatic inking system |
| Coating rod width | 300mm |
| Coating rod Accuracy | ±0.001mm |
zy TBJ-X2-DJ8 Automatic Film Applicator Packing list
Film Applicator X1, External Vacuum Pump X1, Drawdown blade X1, Import bar X1, Remote control software x1, Manual x1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
