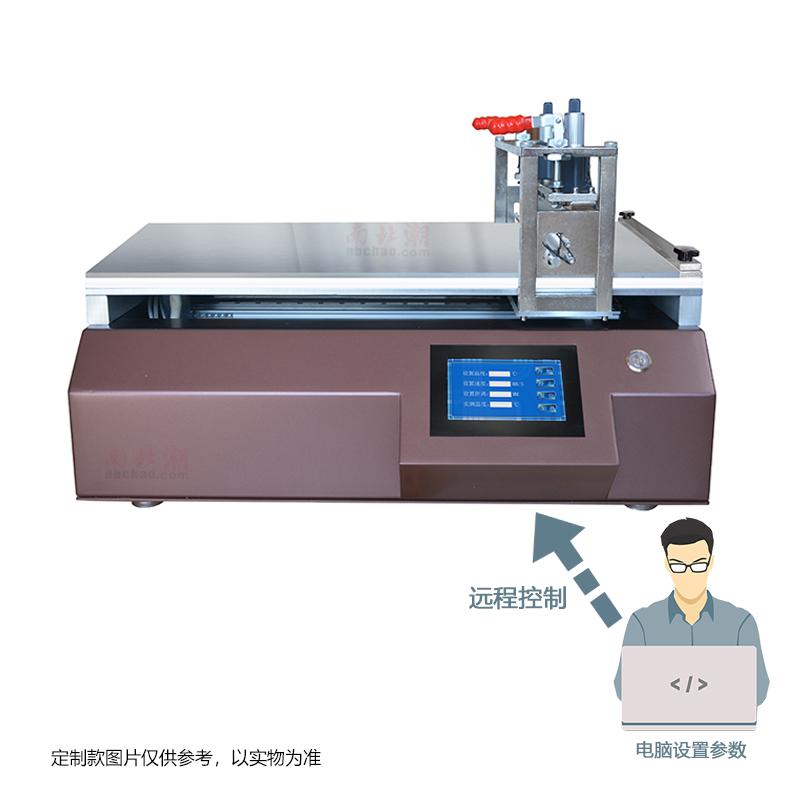

China Intelligent Program Control Film Applicator TBJ-X3-DJ19 bar + Drawdown blade + Heating + Vacuum chuck type
Vacuum chuck, heating, bar, Drawdown blade integrated; Support computer remote setting film speed, application length, film temperature, standard 1 high-precision imported bar; silent vibration-free motor; Coating size 300 * 400mm.
zy
TBJ-X3-DJ19
TBJ-X3-XB
TBJ-B2-DJ7
-
HuiNuo TM1300/01 frame drawdown blade heating vacuum adsorption coater automatic Film Applicator 900 * 1300mm
Login -
HuiNuo TM3200/11D drawdown Bar & blade vacuum adsorption coater (floor type) Effective area 120cm * 100cm
$ 18726.00 -
KTQ-PJ Drawdown blade adjustable width accessories Drawdown blade coater
$ 148.00 -
HuiNuo TM3200Pro/12 Automatic Film Applicator bar drawdown blade coater Vacuum chuck High Accuracy film, effective area 65 * 40cm
$ 7066.00 -
HuiNuo TM2300Pro/05 drawdown blade heating vacuum adsorption coater (drawdown blade + baseplate double heating) effective area 40 * 30cm
$ 5978.00
product description
The TBJ-X experimental small coating testing machine all uses imported accessories and is very affordable. It has been favored by many multinational R&D institutions, as well as many well-known universities and scientific research institutions at home and abroad. By controlling the speed and stable pressure, the coating and gluing effect is ensured, and the uniformity and stability of the coating and gluing are ensured.
TBJ-X3-DJ19 intelligent program-controlled coating machine is a small coating machine with four-in-one functions of wire bar scraper, heating, vacuum adsorption. The control panel supports remote computer setting of coating parameters, such as coating speed, coating length, heating Temperature, etc., using a high-flat aluminum alloy bottom plate, touch screen control operation, equipped with high-precision wire rods, the coating thickness range of the adjustable scraper is 0~10mm, suitable for paint, lithium batteries, glue, hot melt adhesive, paste, film , release paper and other film proofing.
Optional
|
|
|
zy TBJ-X3-DJ19 Automatic Film ApplicatorSpecifications
| LIST | VALUE |
|---|---|
| Drawdown blade Accuracy | ±0.003mm |
| Spreader thickness range | 0~10Mm drawdown blade can be lifted |
| Coating speed | 5~ 180Mm/s (< 5mm/s can be customized) |
| Coating size | 300*400mm |
| Spreader speed | Digital display, different speeds |
| Vacuum Area | 300 * 400Mm (can be customized) |
| Vacuum aperture | Φ1.2mm |
| Vacuum hole spacing | 20*20mm |
| Wire rod film thickness | Determine Spreader thickness according to rod model |
| Host Power | 220V 50Hz |
| Dimensions | 630*410*520mm |
| Weight | Net Weight 65KG |
| speed control | Infinitely variable speed |
| Coating table material | aluminum alloy |
| Heating Temperature range | RT+~180℃ |
| Temperature Uniformity | ±3℃ |
| Power | 1500W |
| Vacuum pump size | 380*180*280mm |
| Intelligent program control | Support computer remote setting film speed, application length, film temperature |
| Optional | Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven thickness of Spreader substrate), application width control baffle |
| Customizable function | Jet system device, UV solid-containing device, automatic inking system |
| Wire rod application width | 300mm |
| Spreader Accuracy | ±0.001mm |
zy TBJ-X3-DJ19 Automatic Film Applicator Packing list
Film Applicator X1, External Vacuum Pump X1, Drawdown blade X1, Imported bar X1, Remote control software x1, Product manual X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
