Non-woven coil coater Small coil film laminating machine, unwinding → scraping → drying → scraping → drying → film laminating → winding function

Introduction

The pilot roll coating machine is suitable for coating non-elastic materials such as paper, film, aluminum foil, plastic, non-woven fabrics, etc. with water-based glue. It is a small oven-coated automatic film laminating machine with the functions of unwinding → scraping → drying → scraping → drying → laminating → rewinding.

product structure

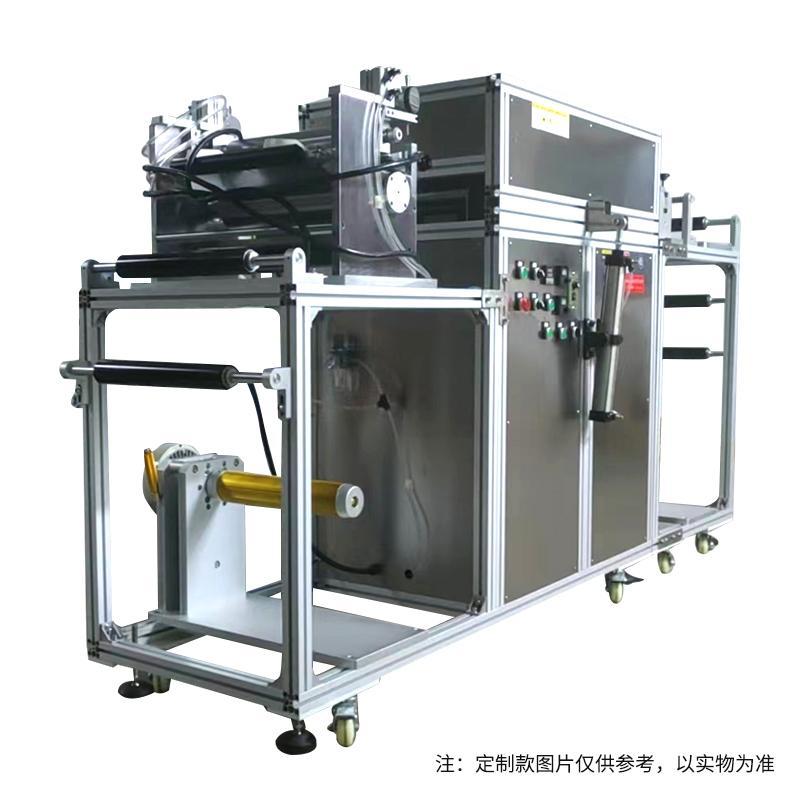

The machine consists of a machine body, a gluing width adjustment device, a feeding rack, a gluing roller set, a thickness adjustment dial indicator, a transmission platform, a traction roller set, and a transmission mechanism.

1. Body: The body of the equipment is entirely composed of aluminum alloy + high-static spraying plate.

2. Glue width adjustment device: The width adjustment device is composed of food-grade plastic and adjustable supports.

3. Unloading rack: The machine is equipped with two unloading racks. When the two materials are misaligned during the lamination process, the deviation correction device automatically adjusts to move the rack left and right to achieve the effect of aligning the two materials.

4. Glue coating roller set: The rubber coating roller set is made of double roller precision machined parts with smooth transmission.

6. Thickness adjustment dial indicator: Adjust the required coating thickness when applying glue. Rotate the left and right hand wheels on the rubber coating roller frame clockwise or counterclockwise to adjust the thickness of the glue coating. The specific thickness is determined according to the dial indicator.

7. Transmission platform: The transmission platform is made of stainless steel. Its main function is to smoothly transmit the base material after gluing to the next process.

8. Traction roller group: Pull the base material to between the upper and lower rollers of the traction roller by hand. Tighten the hand wheel on the frame to make the traction roller and the rubber ring of the upper roller contact the lower roller. The traction roller group will drive the base material through power transmission. The material is pulled over to complete the coating work .

Machine x1, Manual x1, Encasement List x1, Certificate of Conformity x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
