Japan OSP OSP-120T L250 Applicator rod wire-wound drawdown Bar WFT 120μm Length 250mm

The film thickness is 120μm, the length is 250mm, and the bottom is a K-shaped cogging, which is suitable for customers with higher glue viscosity, such as silk, non-woven fabrics, etc.

Brand

SKU: NB045926

OSP

Model

Price

$ 153.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

OSP shopSE

Information

Datasheet RFQ Contract

What else did others buy

Genuinegoods

OSP OSP-120T L250 Coating rodOverview
Specifications
Comments
FAQs

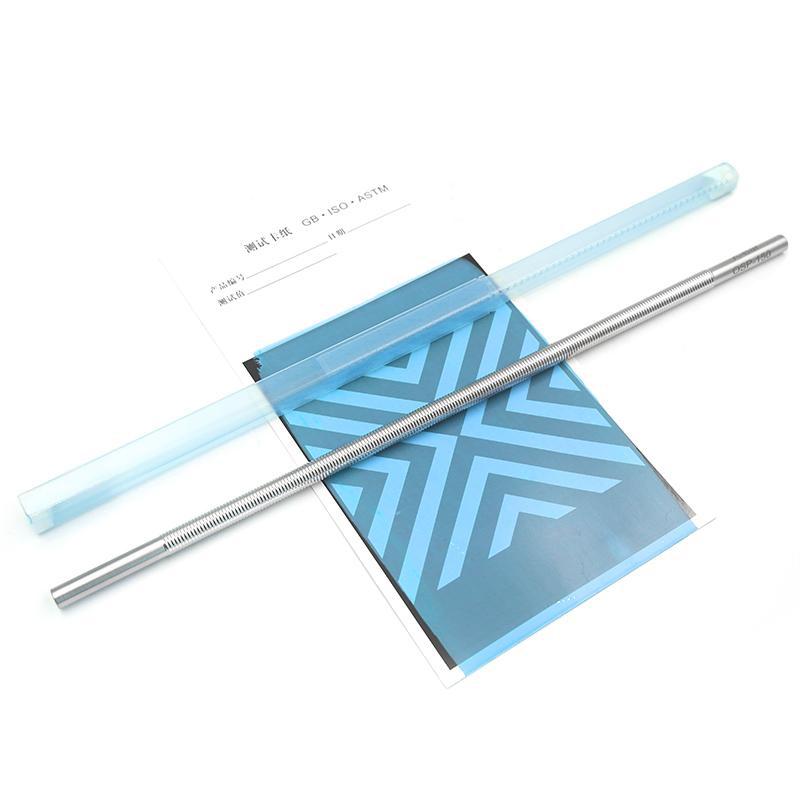

OSP-120T L250

Coating rod

The film thickness is 120μm, the length is 250mm, and the bottom is a K-shaped cogging, which is suitable for customers with higher glue viscosity, such as silk, non-woven fabrics, etc.

Japan OSP coating rod has three lengths of 400mm, 250mm and 60mm, and the coating width is 300mm, 250mm and 60mm respectively, of which 250mm and 60mm need to be used with handles for easy coating.

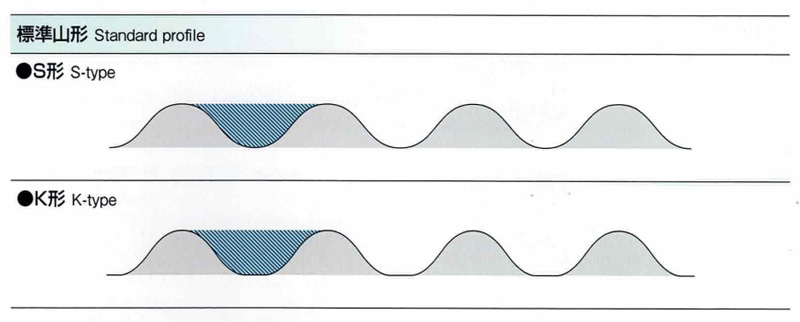

Compared with the S shape, the K shape has a large tooth spacing, which is suitable for high-viscosity coatings, has good leveling, and the bottom of the tooth groove is wider, which is more suitable for customers with a larger glue viscosity, such as silk, non-woven fabrics, etc.

K-shaped wire rods

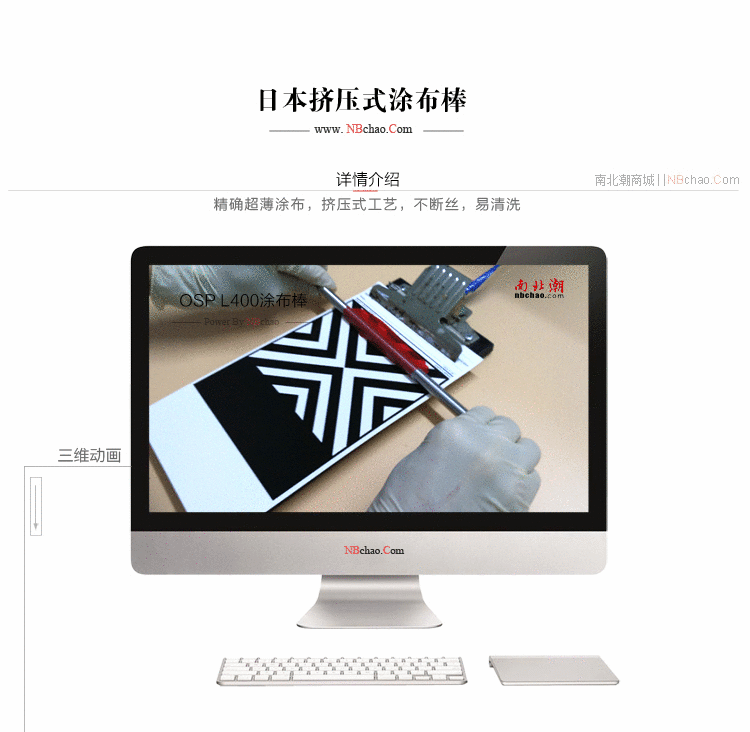

Introduction to Japan OSPOSP-64/400 paint scraper

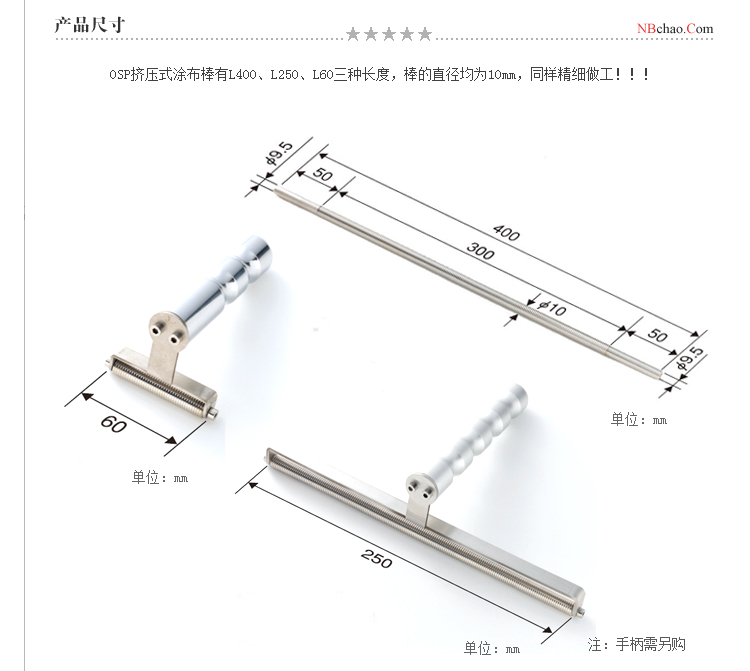

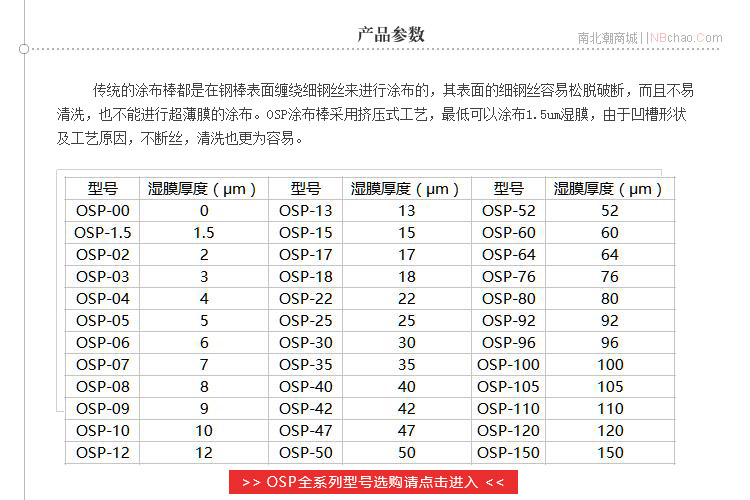

Japan OSPOSP-64/400 Paint Scraper Size

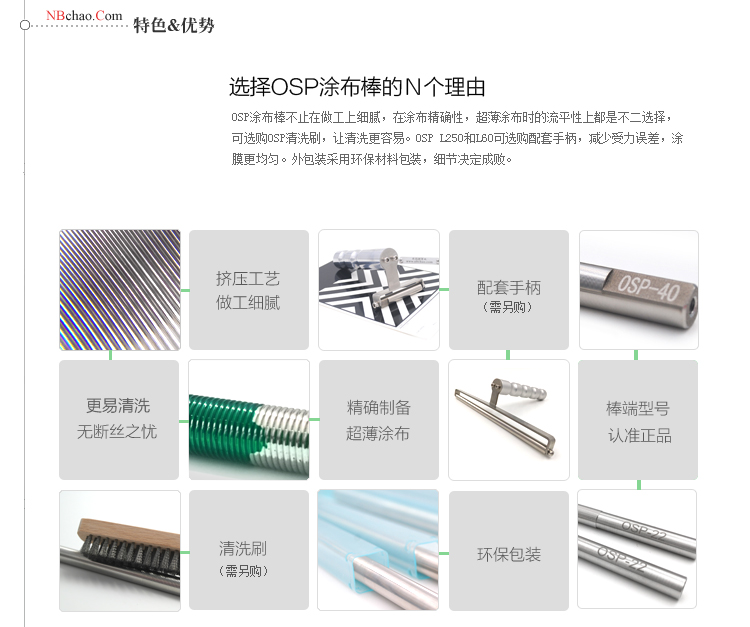

Japan OSPOSP-64/400 paint scraper advantage points

Japan OSPOSP-64/400 paint scraper groove shape

Japan OSPOSP-64/400 paint scraper has high precision

Application field of OSP wire rod coater

Why choose Nanbeichao Mall to buy Japan OSPOSP-64/400 paint scraper

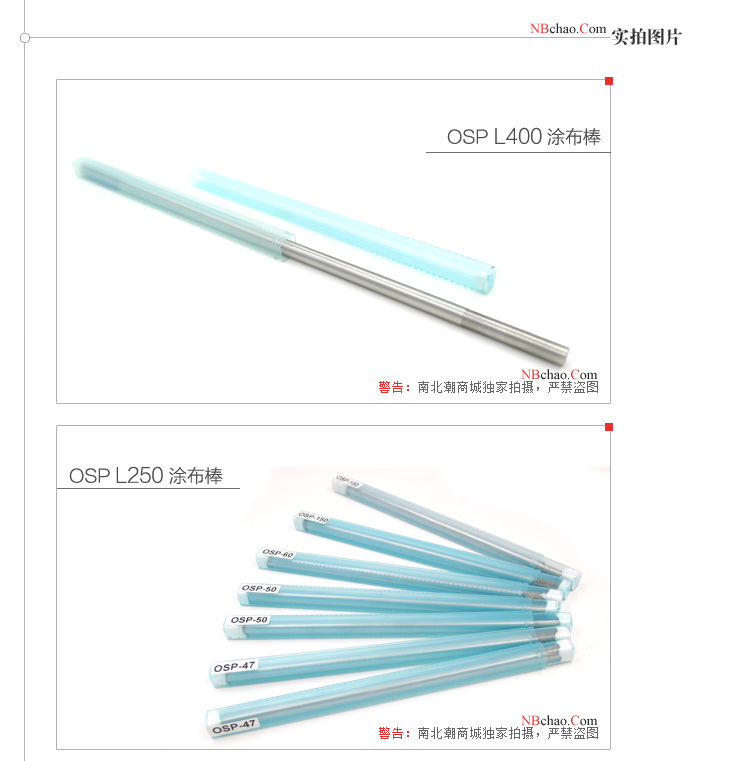

Japan OSPOSP-64/400 paint scraper display Figure 1

Japan OSPOSP-64/400 paint scraper display Figure 2

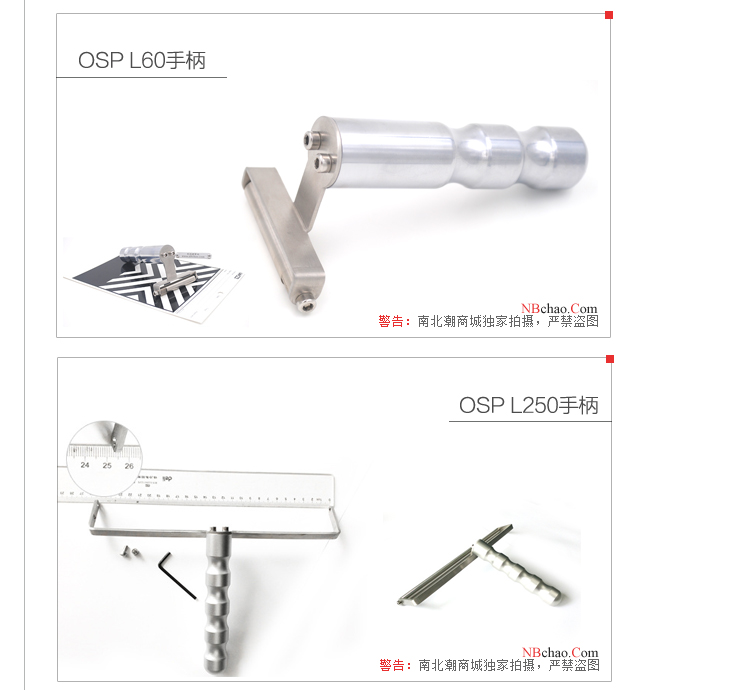

Japan OSPOSP-64/400 paint scraper display Figure 3

Optional

OSP OSP-120T L250 Coating rodSpecifications

LIST	VALUE
Production process	Formed
WFT	120μm
diameter	10mm
Total length	250mm
Application width	250mm
material	304 stainless steel

OSP OSP-120T L250 Coating rod Packing list

Stainless Steel Main Rod X1, Transparent External Encasement Hose X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
